WKE 2 - 5 x 6²

Productnumber: 86050201 | Dimensions: 100 x 100 x 50 mm

Junction box, protection class IP54/IP65, nominal cross-section 6 mm², U_i=450 V AC, certified by VDE (DIN EN 60670-1/-22 (VDE 0606-1/-22)), knockouts, M25, (6 side), external fixing lugs, with E30 - E 90 electrical functional integrity according to DIN 4102 Part 12. Halogen-free enclosure made of special thermosetting plastic, terminals made of special high-temperature-resistant ceramic.

orange, Connection box 5-pole 0.5 - 6 mm², junction box 5-pole 0.5 - 1.5 mm², number of clampable wires per pole: 8 x 0.5² / 4 x 0.75² / 6 x 1² / 6 x 1.5² / 2 x 2.5² / 2 x 4² / 2 x 6²

Accessories supplied:

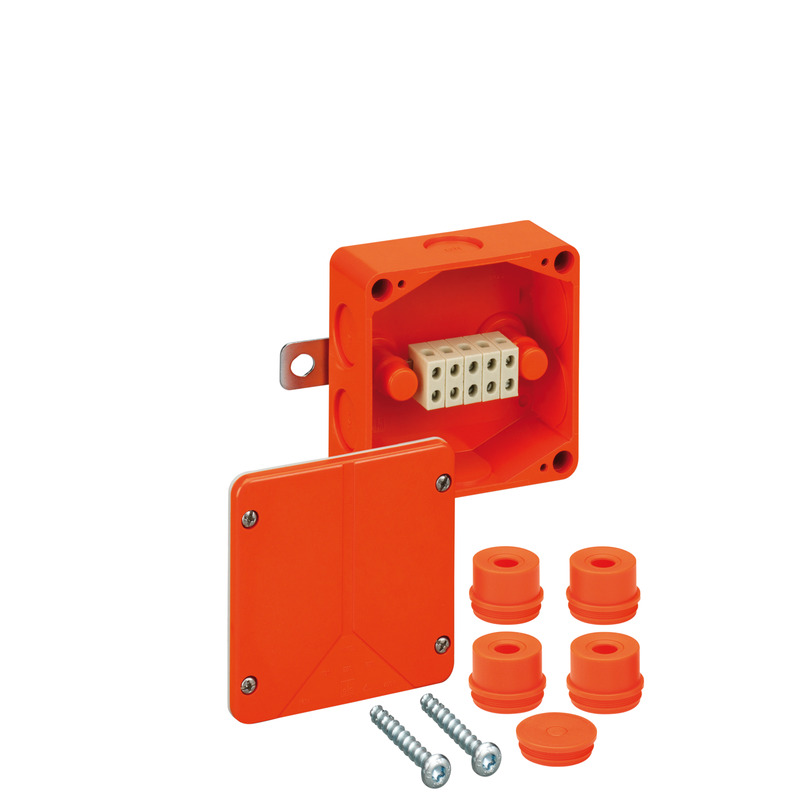

4 off IP54 attachment bushes M25, sealing range 9 - 18.5 mm, 1 off IP54 sealing plug M25, sealing range 9 - 18.5 mm, Drilling template, D6 wall + ceiling attachment set

Find wholesaler

electrical characteristics

Rated insulation voltage AC	450 V
Rated insulation voltage DC	450 V
Max. conductor cross section	6 mm²
Protection class	II
Type of protection	IP54/IP65
Circuit integrity class	E30/E60/E90
UL Type Rating	not specified

Colours

Base unit colour	orange
Cover colour	orange

Dimensions

Width	100 mm
Length	100 mm
Height	50 mm
Weight	0.3906 kg

Material characteristics

UV-resistant	yes
Halogen free	yes
Flammability class according with UL94	V0
Glow-wire flammability according to EN 60695-2-11	960 °C

mechanical properties

Type of fastening	Wall/ceiling mounting
Sealable	no
Cover screw torque	1.8 Nm
Fastening	external fixing lugs

Ambient conditions

max. relative humidity 25°C	95 %
max. relative humidity 40°C	50 %
Min. ambient temperature	-25 °C
Max. ambient temperature	40 °C
24h ambient temperature	35 °C
Installation location	Indoors

Sales Information

ETIM Class	EC002600
Custom tariff number	85369095

Material

Base unit material	Duroplast
Cover material	Duroplast
Sealing material	Thermoplastic elastomer
Cover screw material	Stainless steel V2A

Certificates

Test mark	VDE (DIN EN 60670-1/-22 (VDE 0606-1/-22))

Download Data Sheet

Download Data Sheet

Installation instructions

Assembly instruction DE/EN/FR/ES	pdf (1.015 KB)

Dimensioned drawing

Dimensional drawing	pdf (135 KB)
Dimensional drawing	dxf (2 MB)
Dimensional drawing	dwg (371 KB)
Dimensional drawing	jpg (1 MB)

Certificate

UKCA Declaration EN	pdf (49 KB)
CE Declaration DE/EN/PL	pdf (316 KB)
CE Declaration DE/EN/FR	pdf (220 KB)
MPA Test certificate UKr	pdf (1 MB)
VDE Certificate DE/EN	pdf (609 KB)
