Wallbox

Spelsberg Wallbox Pure 2.0 Graphite 7m

Productnumber: 59152701 | Dimensions: 293 x 293 x 110 mm

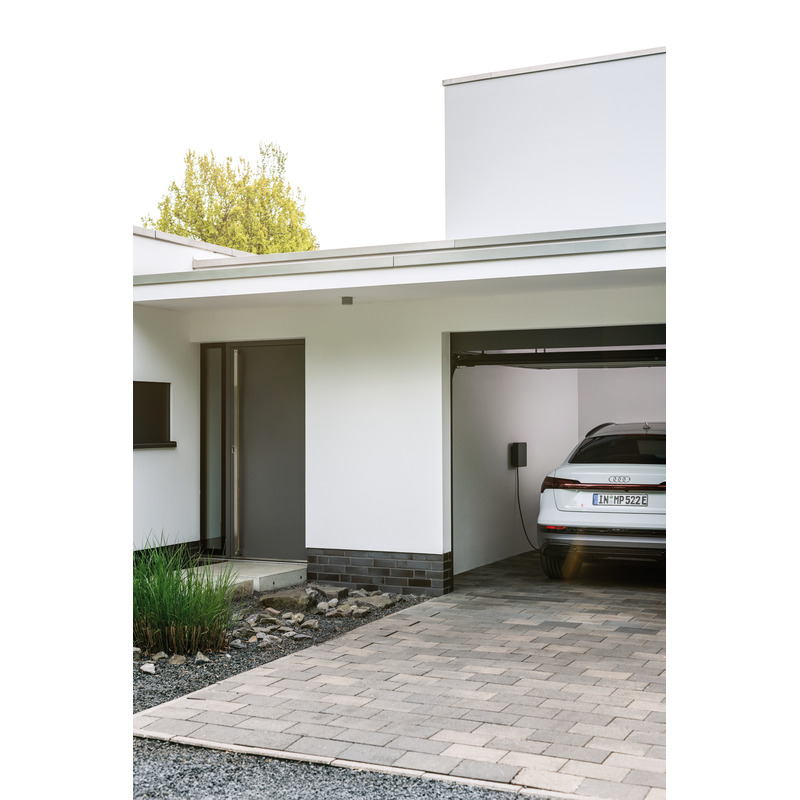

Wallbox - ideal for fast and safe charging of electric vehicles in the private sector, easy to connect and charge, charging power up to 11 kW (3-phase)/3.7 kW (1-phase) and a maximum charging current of 16 A, variably adjustable charging current in 1A steps, including potential-free contact for external and mains control, integrated DC fault current detection for DC residual currents of ≥ 6 mA and temperature monitoring for a safe charging process, stylish design and compact enclosure dimensions for wall and pedestal mounting, protection class IP54, maximum connection cross-section of supply terminal 6mm², shock resistance IK08, protection class II.

Easy installation and quick configuration with the free Spelsberg Wallbox App (available for iOS, Version 14 and higher, and Android Version 6 and higher), free charging or contactless authorisation of the charging process by RFID, LED and audible signals for clear feedback on status changes.

Graphite, 7m charging cable with type 2 coupling

Accessories supplied:

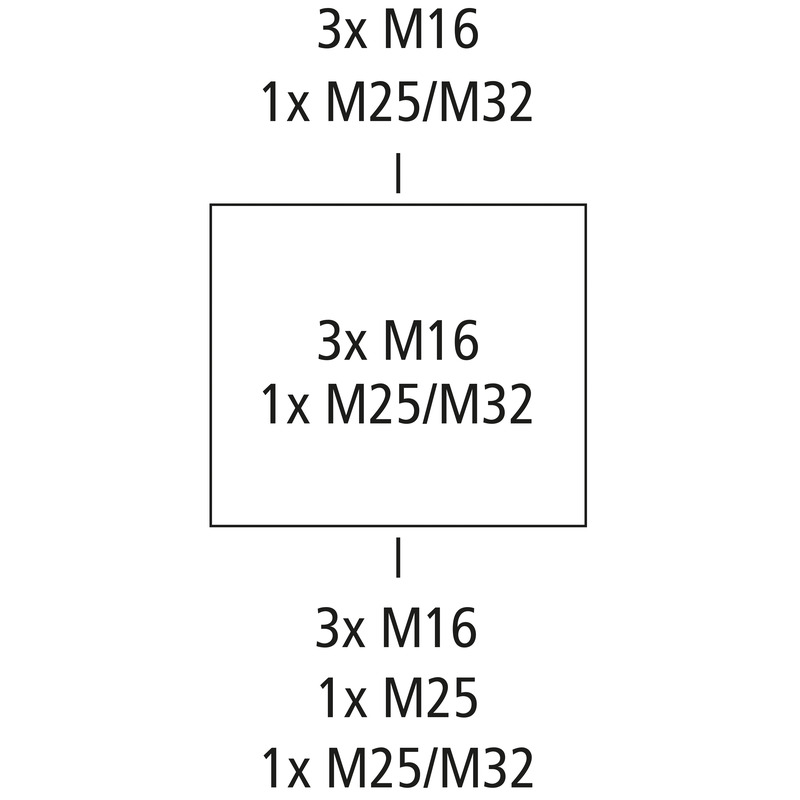

3 RFID chips, 4 fastening screws 6x60, 4 universal dowels 8x50, 3 DMS M16, 1 DMS M25, 1 DMS M32 and 5 chips for opening the design cover

Find wholesaler

Highlights

Stylish, minimalist design meets smart charging technology - for high power in its most attractive form.
Optimum dimensions with a low depth of 110 mm emphasise the timeless design with a simultaneous focus on fast and easy installation.
Say goodbye to laborious adjustments of rotary and dip switches with the Spelsberg wallbox: The intelligent app allows full configuration and control through the convenience of a Smartphone.

electrical characteristics

max. charging power	11 kW
max. charging current	16 A
Variably adjustable charging current	yes
System side connection	3-phase
Rated operating voltage AC	400 V
Nominal frequency	50 Hz
Charging mode (IEC 61851)	3 C
Long charging cable	7 m
Connector plug	Type 2
Temperature monitoring	Charging current reduction
DC fault current detection ≥6 mA	yes
Load switch	Contactor, 4-pole
Min. conductor cross section	0,2 mm²
Max. conductor cross section	6 mm²
Protection class	II
Degree of pollution	3
Type of protection	IP54
vented	no

Colours

Base unit colour	anthrazit
Cover colour	Graphite

Additional features

Mobile app	Yes
Access control/Authorisation	RFID
Status display	LED
Audible status feedback	yes
Load management	none
Integrated MID meter	no
Excess PV charging	yes
Plug & Charge (ISO 15118)	no
Auto Charge	no
Firmware Updates	USB
Inlet for data cable	No
Eligibility	no

Dimensions

Width	293 mm
Length	293 mm
Height	110 mm
Weight	6.799 kg

Material characteristics

UV-resistant	yes
Halogen free	yes
Glow-wire flammability according to EN 60695-2-11	650 °C
Weight (excluding charging cable)	2.5 kg

mechanical properties

Type of fastening	Wall/pedestal mounting
Impact strength	IK08
Sealable	no
Type of top part	Cover

Ambient conditions

max. relative humidity 25°C	95 %
max. relative humidity 40°C	50 %
Min. ambient temperature	-25 °C
Max. ambient temperature	40 °C
24h ambient temperature	35 °C
Installation location	protected outdoor areas

Sales Information

EAN	4013902694044
Packing Unit Code	CT
ETIM Class	EC002883
Custom tariff number	85371091

Material

Base unit material	Polycarbonate, glass-fibre reinforced
Cover material	Polycarbonate
