Spelsberg Wallbox Smart Pro Polar 5m

Productnumber: 59143501 | Dimensions: 293 x 293 x 110 mm

Wallbox - ideal for smart charging of private e-vehicles, charging power up to 11 kW (3-phase)/3.7 kW (1-phase) and a maximum charging current of 16 A, variably adjustable charging current in 1A steps, integrated DC fault current detection for DC residual currents of ≥ 6 mA and temperature monitoring for a safe charging process, stylish design and compact housing dimensions for wall and pedestal mounting, protection class IP54, maximum connection cross-section of supply terminal 6 mm², shock resistance IK08, protection class II.

Simple installation and fast configuration and firmware updates with the free-of-charge Spelsberg Wallbox App (available for iOS, Version 14 and higher, and Android Version 6 and higher).

Integrated MID meter for consumption billing, dynamic load management by phase with unbalanced load detection and meter support for external loads, for efficient use of available power, connection to energy management systems (EMS) for external control for charging with solar energy, free charging or contactless authorisation of the charging process by RFID, Plug & Charge (ISO15118) or AutoCharge, LED and audible signals for clear feedback on status changes, analysis of extensive charging statistics via the Spelsberg Wallbox App or external backends.

Supports communication protocols and interfaces:

  • USB
  • WLAN, Ethernet (2 RJ45 LAN-Ports)
  • Modbus TCP, EEBus, SMA SEMP
  • OCPP-J 1.6 for connection of external backends

Polar, 5m charging cable with Type 2 connector

Accessories supplied:

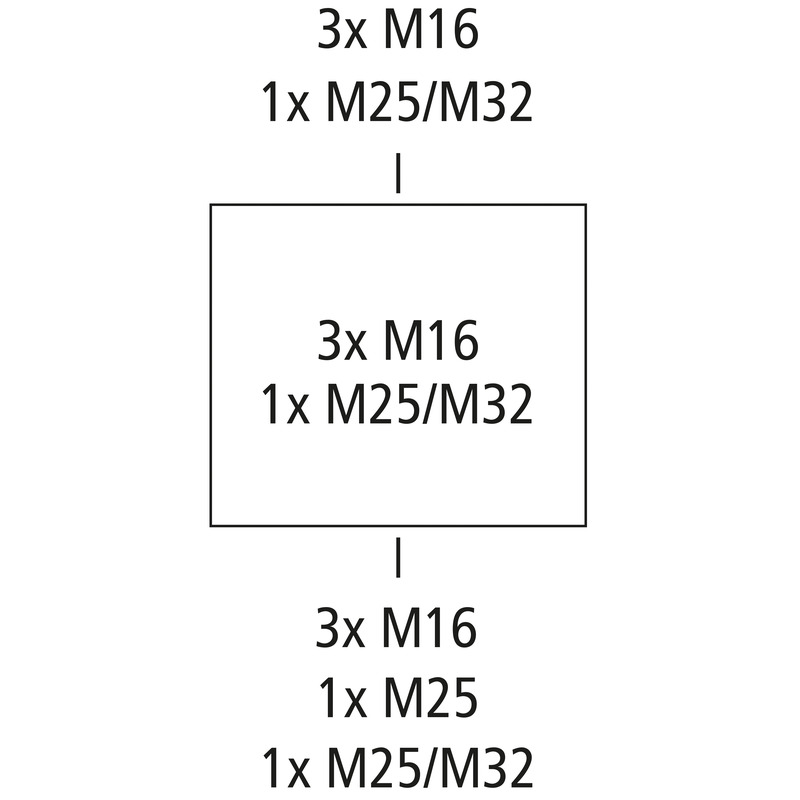

3 RFID chips, 4 fastening screws 6x60, 4 universal dowels 8x50, 3 DMS M16, 1 DMS M25, 1 DMS M32 and 5 chips for opening the design cover

Highlights

Stylish, minimalist design meets smart charging technology - for high power in its most attractive form.
The integrated communication interfaces allow maximum connectivity and integration with networked systems with a simultaneous focus on fast and easy installation.
Say goodbye to laborious adjustments of rotary and dip switches with the Spelsberg wallbox: The intelligent app allows full configuration and control, together with analysis of charging statistics, through the convenience of a Smartphone.



electrical characteristics

max. charging power 11 kW
max. charging current 16 A
Variably adjustable charging current yes
System side connection 3-phase
Rated operating voltage AC 400 V
Nominal frequency 50 Hz
Charging mode (IEC 61851) 3 C
Long charging cable 5 m
Connector plug Type 2
Temperature monitoring Charging current reduction
DC fault current detection ≥6 mA yes
Load switch Contactor, 4-pole
Min. conductor cross section 0,2 mm²
Max. conductor cross section 6 mm²
Protection class II
Degree of pollution 3
Type of protection IP54
vented no

Colours

Base unit colour white
Cover colour Polar

Additional features

Mobile app Yes
Access control/Authorisation RFID, EVCCID
Status display LED
Audible status feedback yes
Load management dynamic
Integrated MID meter yes
Excess PV charging yes
Plug & Charge (ISO 15118) yes
Auto Charge yes
Firmware Updates Remote
Inlet for data cable Yes
Eligibility Eligible for the KfW funding programme

Dimensions

Width 293 mm
Length 293 mm
Height 110 mm
Weight 7.099 kg

Material characteristics

UV-resistant yes
Halogen free yes
Glow-wire flammability according to EN 60695-2-11 650 °C
Weight (excluding charging cable) 3 kg

mechanical properties

Type of fastening Wall/pedestal mounting
Impact strength IK08
Sealable no
Type of top part Cover

Ambient conditions

max. relative humidity 25°C 95 %
max. relative humidity 40°C 50 %
Min. ambient temperature -25 °C
Max. ambient temperature 40 °C
24h ambient temperature 35 °C
Installation location protected outdoor areas

Sales Information

EAN 4013902675692
Packing Unit Code CT
ETIM Class EC002883
Custom tariff number 85371091

Material

Base unit material Polycarbonate, glass-fibre reinforced
Cover material Polycarbonate

Download Data Sheet

Download Data Sheet

Handbook

Product manual DK pdf (5 MB)
Product manual DE pdf (5 MB)
Product manual BE pdf (5 MB)
Product manual SE pdf (5 MB)
Product manual FR pdf (5 MB)
Product manual FI pdf (5 MB)
Product manual EN pdf (5 MB)

Installation instructions

Assembly instruction pdf (8 MB)

Dimensioned drawing

Dimensional drawing dxf (3 MB)
Dimensional drawing dwg (730 KB)
Dimensional drawing pdf (825 KB)

Certificate

CE Declaration DE/EN/FR pdf (33 KB)

Accessories

Weatherproof cover f. wallbox WB WSD

  • Dimensions : 395 x 325 x 150 mm
  • Productnumber: 59181501



Weather protection roof to protect the Spelsberg Wallbox from weather influences both from above and...



RFID chip RFID-C Polar

  • Dimensions : 30 x 45 x 3 mm
  • Productnumber: 59181301

Colour Polar, kit = 5 pieces



RFID tag - for authorising charging processes on a Spelsberg Wallbox, multifunctional applications...



Pedestal adapter plate AP-SF2

  • Dimensions : 315 x 1372 x 51 mm
  • Productnumber: 59180601



Extension kit double pedestal - for expanding the single pedestal for a second Spelsberg Wallbox,...



Weatherproof cover f. pedestal SF WSD

  • Dimensions : 402 x 307 mm
  • Productnumber: 59180501



Weather protection roof for the wallbox pedestal - for quick and easy expansion of the single- and...



Wallbox pedestal SF1

  • Dimensions : 324 x 1383 x 112 mm
  • Productnumber: 59180101

Pedestal for mounting a Spelsberg Wallbox, expansion option with...



Wallbox pedestal - including cable holder, stainless steel (V2A) material, for easy mounting...



Connector holder SH Polar

  • Dimensions : 100 x 100 x 110 mm
  • Productnumber: 59180701

Colour polar



Connector holder - for the Type 2 charging connector in accordance with IEC 62196-2, optimum...



Wallbox pedestal SF1 WSD

  • Dimensions : 402 x 1383 x 307 mm
  • Productnumber: 59180201

Pedestal for mounting a Spelsberg Wallbox, including weather...



Wallbox pedestal - including cable holder, stainless steel (V2A) material, for easy mounting...



Wallbox pedestal SF2

  • Dimensions : 324 x 1383 x 112 mm
  • Productnumber: 59180301

Pedestal for mounting 2 Spelsberg Wallboxes in opposing arrangement,...



Wallbox pedestal - including cable holder, stainless steel (V2A) material, for easy mounting...



Wallbox design cover DC Polar

  • Dimensions : 293 x 293 x 70 mm
  • Productnumber: 59181101

Colour Polar



Design cover - for replacing the design cover of a Spelsberg Wallbox, easy to fit, polycarbonate,...



Wallbox pedestal SF2 WSD

  • Dimensions : 402 x 1383 x 506 mm
  • Productnumber: 59180401

Pedestal for mounting 2 Spelsberg Wallboxes in opposing arrangement,...



Wallbox pedestal - including cable holder, stainless steel (V2A) material, for easy mounting...



Charging cable LL 5m T2

  • Dimensions : 12,8 x 5000 x 12,8 mm
  • Productnumber: 59180901

5m length with Type 2 plug



Charging cable – AC charging cable with Type 2 charging plug in accordance with IEC 62196 and open...
