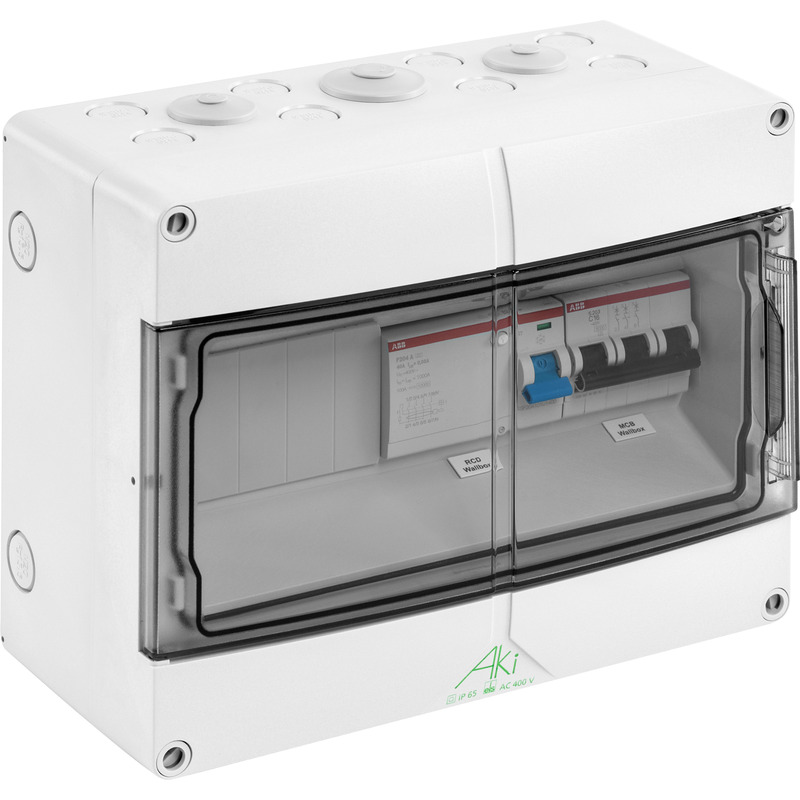

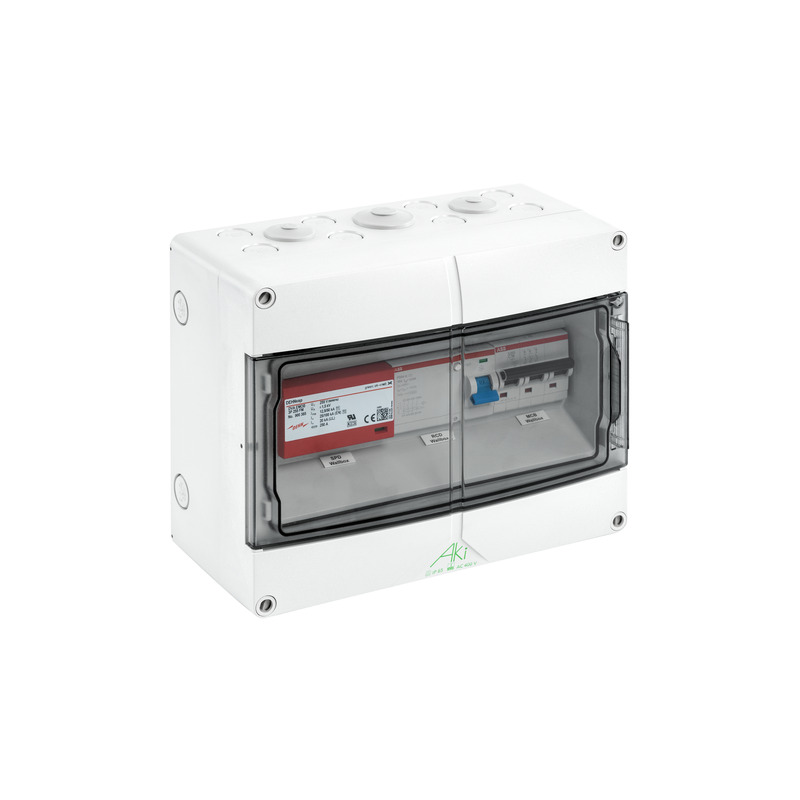

AKi 12 EMOBIL 11kW-ÜSS

Productnumber: 73610201 | Dimensions: 250 x 200 x 122 mm

Small distributions boards, protection class IP65, type-tested according to EN 61439-3, cabled ready for connection

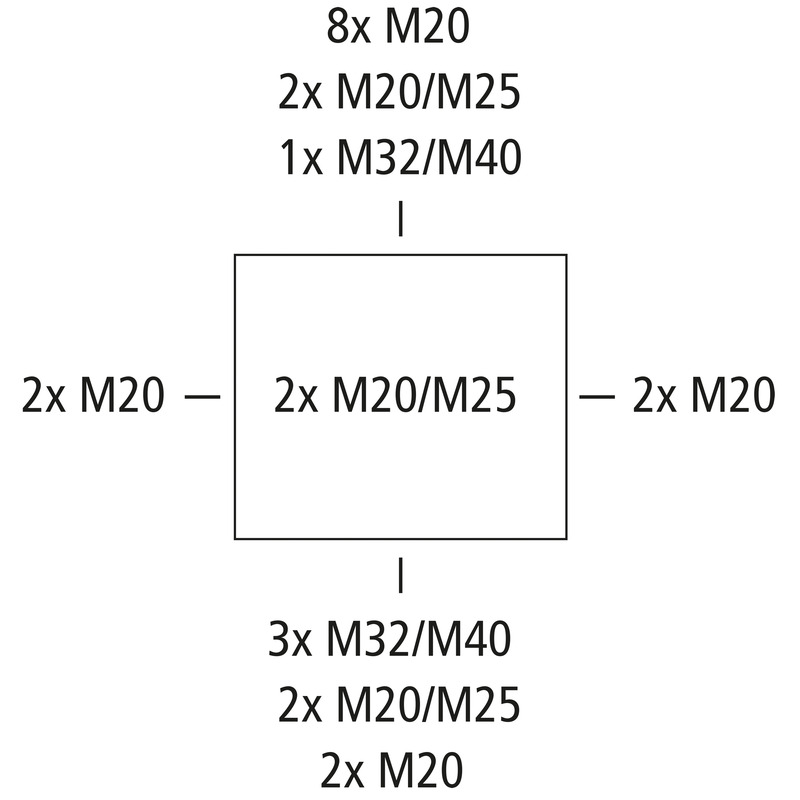

Cable insertions:
Top: Knockouts 8 x M20
Bottom: Knockouts 2 x M20, 2 x M20/25, 3 x M32/40
Left: Knockouts 2 x M20
Right: Knockouts 2 x M20
rear: Knockouts 2 x M20/25

1-row for an 11 kW wallbox with integrated 6mA DC monitoring

equipped with:

1 x Miniature circuit breaker C 16 A, 3p
1 x Residual Current Circuit Breaker (RCCB), 40/0.03A, 4-pole, type A
1 x Surge protection device (SPD) Type 1 + Type 2 for TN-S systems, energy-coordinated protection effect with terminal equipment Type 1 + type 2 + type 3

Find wholesaler

Built-in devices

Residual Current Circuit Breaker (RCCB), 40/0.03A, 4-pole, type A	1
Miniature circuit breaker C 16 A, 3p	1
Surge protection device (SPD) Type 1 + Type 2 for TN-S systems, energy-coordinated protection effect with terminal equipment Type 1 + type 2 + type 3	1

electrical characteristics

Rated operating voltage AC	400 V
Rated insulation voltage AC	230 V
Protection class	II
Type of protection	IP65
vented	no
Number of N-potentials	1
Number of rows	1
Number of modules per row	12
with N terminal	yes
with PE terminal	yes
with additional installation space	no
UL Type Rating	not specified

Colours

Base unit colour	grey
Cover colour	grey

Dimensions

Width	250 mm
Length	200 mm
Height	122 mm
Inner width	241 mm
Inner height	56 mm

Material characteristics

UV-resistant	yes
Halogen free	yes
Flammability class according with UL94	V2
Glow-wire flammability according to EN 60695-2-11	850 °C
Industry quality	yes

mechanical properties

Type of fastening	Wall mounting
Impact strength	IK08
Sealable	yes
Cover screw torque	1.2 Nm
Flange variant	no

Ambient conditions

max. relative humidity 25°C	95 %
max. relative humidity 40°C	50 %
Min. ambient temperature	-25 °C
Max. ambient temperature	40 °C
24h ambient temperature	35 °C
Installation location	protected outdoor areas

Sales Information

EAN	4013902680603
Packing Unit Code	CT
ETIM Class	EC002288
Custom tariff number	85369095

Material

Base unit material	Polycarbonate, glass-fibre reinforced
Cover material	Polycarbonate, glass-fibre reinforced
Entry material	Thermoplastic elastomer
Sealing material	Polyurethane
Cover screw material	Polyamide, glass-fibre reinforced
Hinged window material	Polycarbonate
