Wallbox pedestal

SF1 WSD

Productnumber: 59180201 | Dimensions: 402 x 1383 x 307 mm

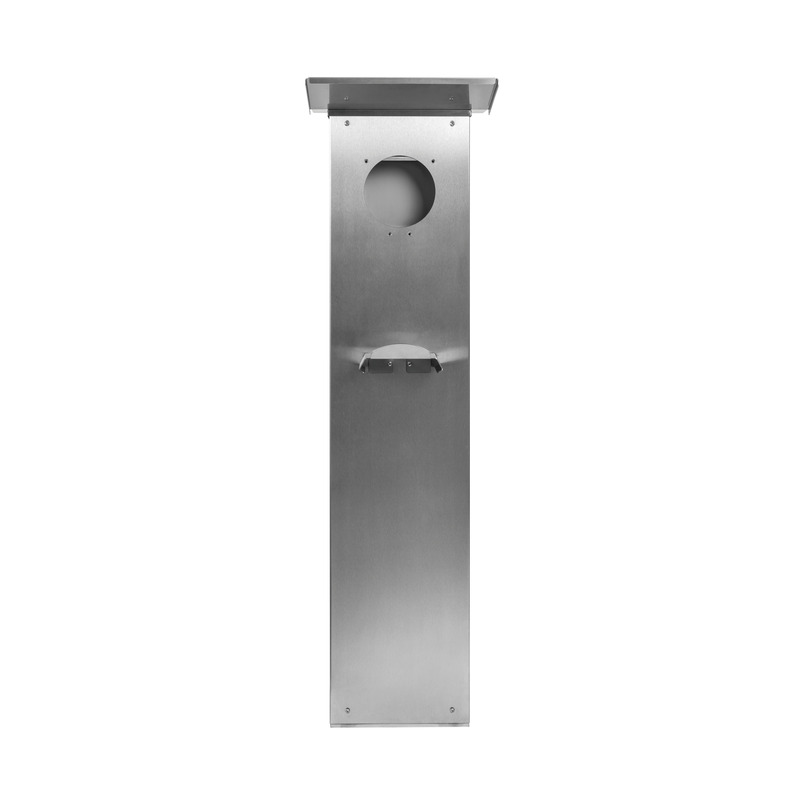

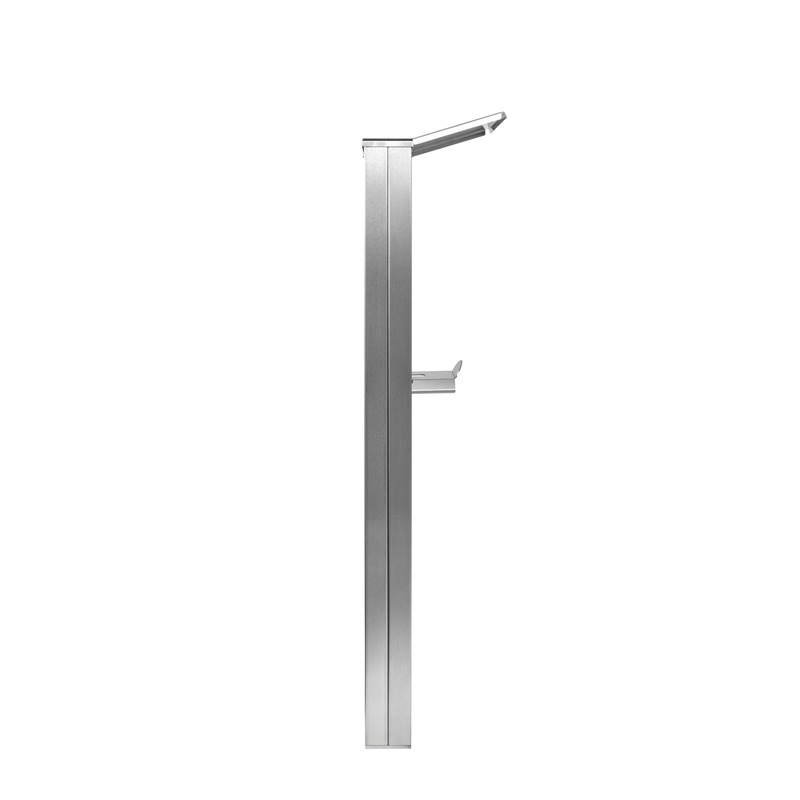

Wallbox pedestal - including cable holder, stainless steel (V2A) material, for easy mounting outdoors, including fixing screws for Spelsberg Wallbox, drilled holes provided for cable entries and securing of accessories, additional fittings may be required depending on the foundation

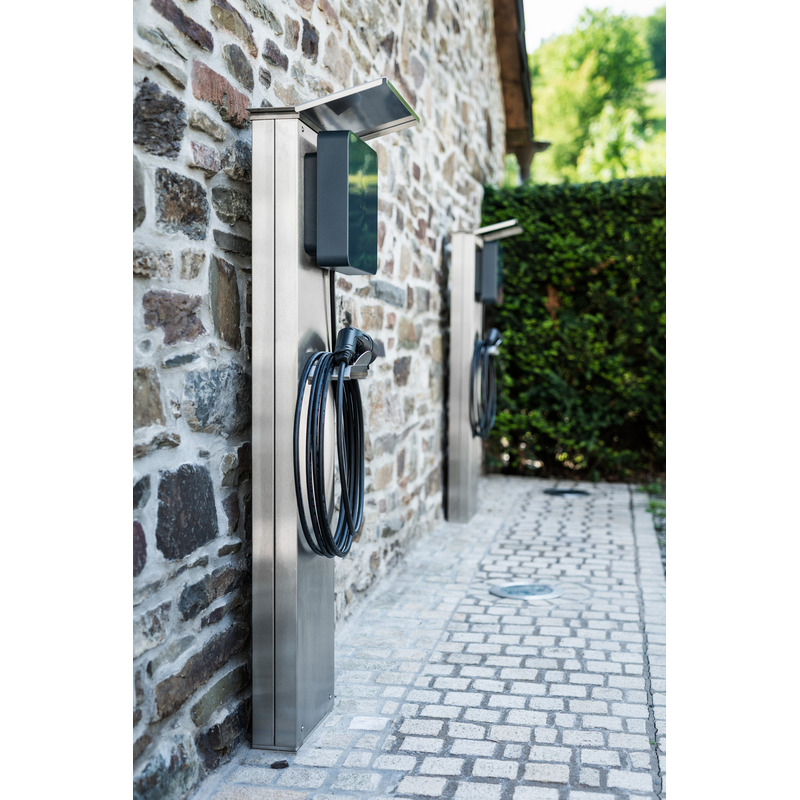

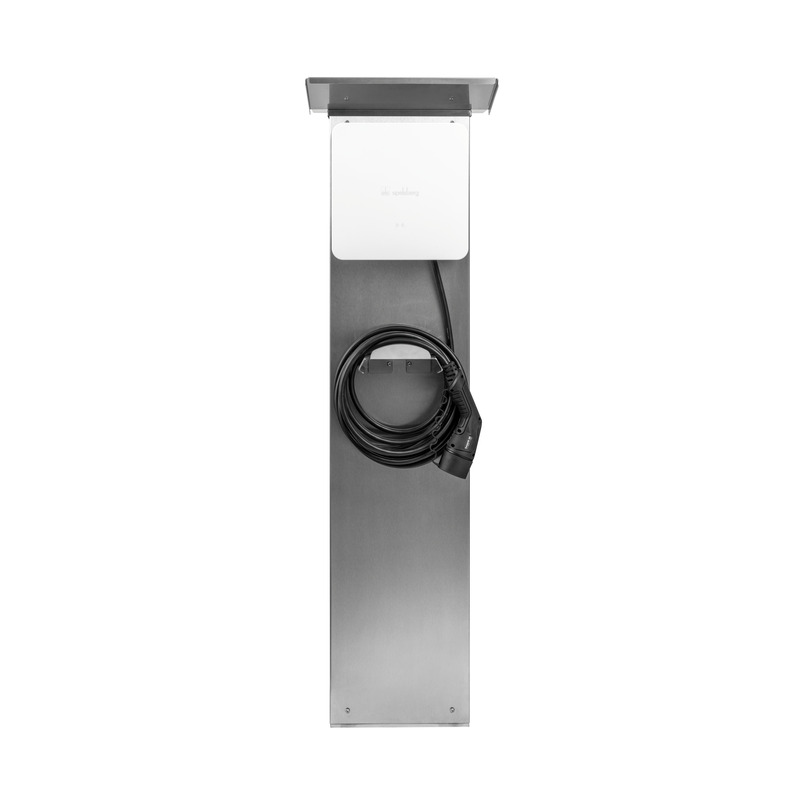

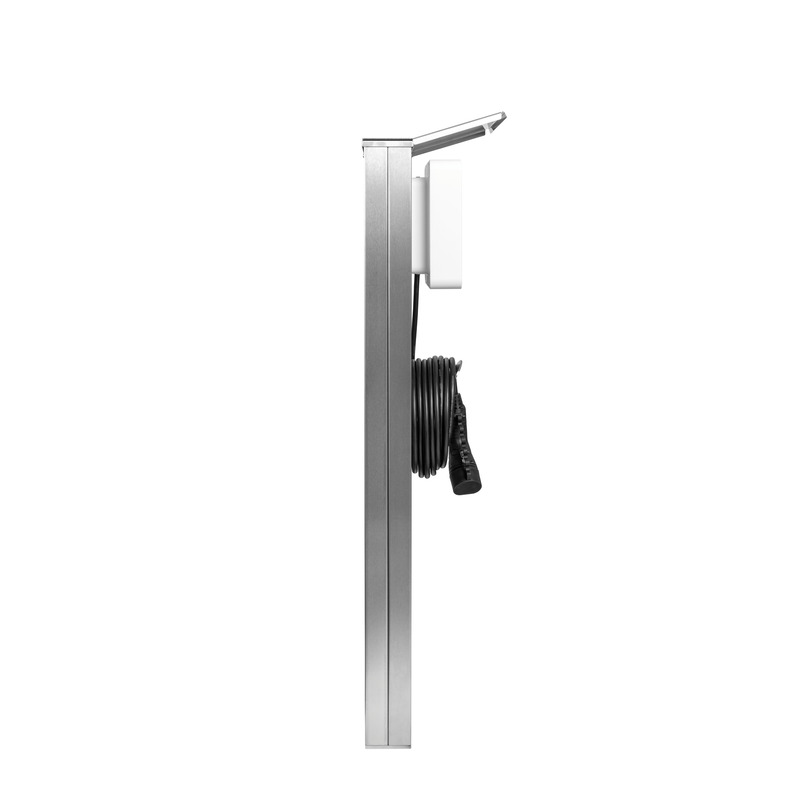

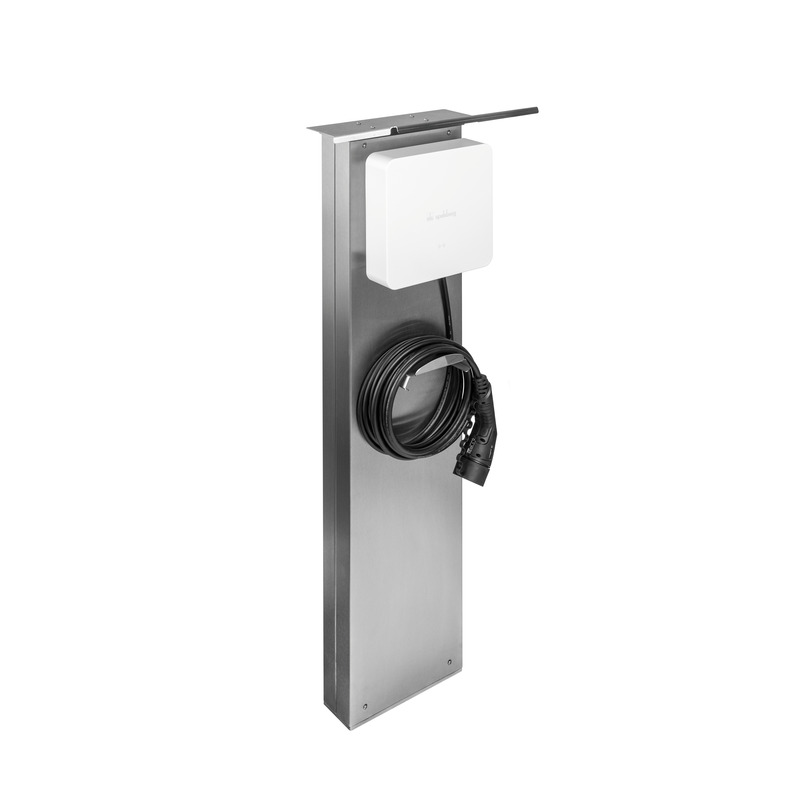

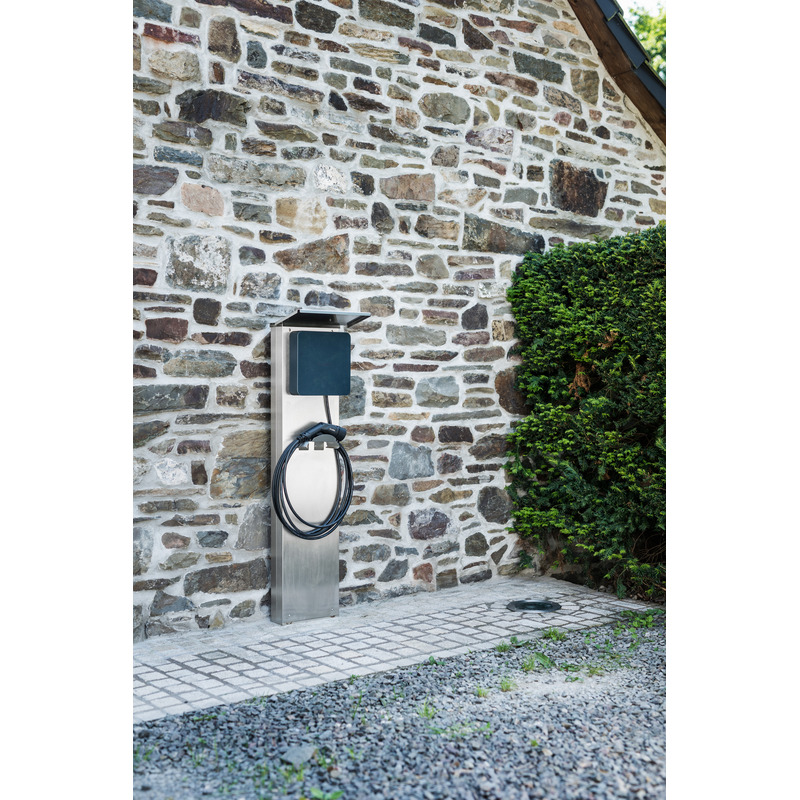

Pedestal for mounting a Spelsberg Wallbox, including weather protection roof in stainless steel (V2A), expansion option with extension kit for a second Spelsberg Wallbox

Dimensions

Width 402 mm
Length 1383 mm
Height 307 mm
Weight 22.85 kg

Material characteristics

UV-resistant yes

Ambient conditions

max. relative humidity 25°C 95 %
max. relative humidity 40°C 50 %
Min. ambient temperature -25 °C
Max. ambient temperature 40 °C
24h ambient temperature 35 °C
Installation location unprotected outdoor areas

Sales Information

EAN 4013902678983
Packing Unit Code CT
ETIM Class EC002884
Custom tariff number 85381000

Material

Accessory material Stainless steel V2A

Download Data Sheet

Download Data Sheet

Installation instructions

Assembly instruction pdf (26 MB)
Assembly instruction DE pdf (434 KB)

Dimensioned drawing

Dimensional drawing pdf (89 KB)
Dimensional drawing pdf (41 KB)
Dimensional drawing pdf (106 KB)

Certificate

CE Declaration DE/EN/PL pdf (60 KB)
CE Declaration DE/EN/FR pdf (32 KB)
UKCA Declaration EN pdf (182 KB)

Accessories

Pedestal adapter plate AP-SF2

  • Dimensions : 315 x 1372 x 51 mm
  • Productnumber: 59180601



Extension kit double pedestal - for expanding the single pedestal for a second Spelsberg Wallbox,...
