STV 1224-K16

Productnumber: 73162401 | Dimensions: 250 x 400 x 122 mm

Socket outlet combination, protection class IP44, ready for connection, according to EN 61439-3, high mechanical strength, temperature-resistant, can be combined

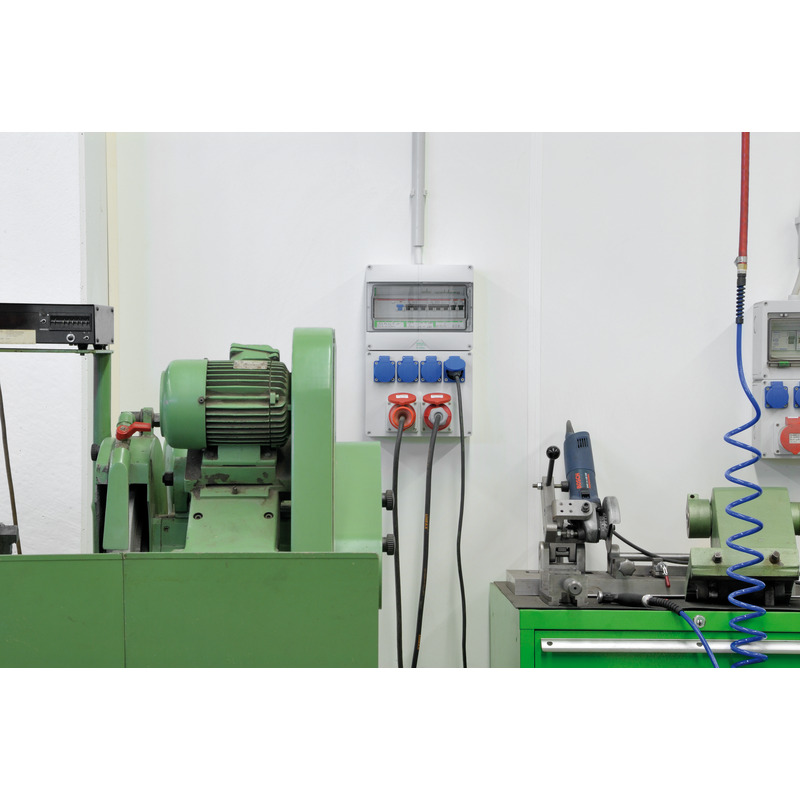

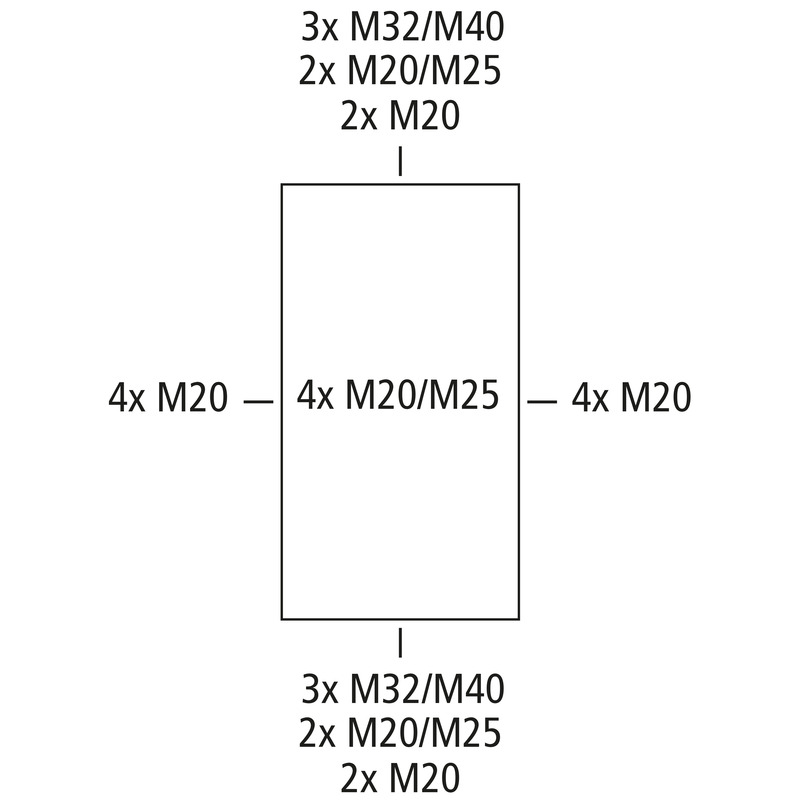

Cable insertions:
Top: Pre-embossing 2 x M20, 2 x M20/25, 3 x M32/40
Bottom: Pre-embossing 2 x M20, 2 x M20/25, 3 x M32/40
Left: Pre-embossing 4 x M20
Right: Pre-embossing 4 x M20
Rear: Pre-embossing 4 x M20/25

equipped with:

2 x Miniature circuit breaker B16A, 1-pin
2 x Miniature circuit breaker C 16 A, 3p
1 x Residual Current Circuit Breaker (RCCB), 40/0.03A, 4-pole, type A
4 x SCHUKO^® plug socket (on front), 230V
2 x CEE plug socket outlet (on front) 16A, 400V

Accessories supplied:
Attachment bushes: 2x M25, 2x M32, sealing plugs, masking and labelling strips

Find wholesaler

Built-in devices

Residual Current Circuit Breaker (RCCB), 40/0.03A, 4-pole, type A	1
Miniature circuit breaker B16A, 1-pin	2
Miniature circuit breaker C 16 A, 3p	2
SCHUKO^® plug socket (on front), 230V	4
CEE plug socket outlet (on front) 16A, 400V	2

electrical characteristics

Rated insulation voltage AC	400 V
Protection class	II
Type of protection	IP44
Number of N-potentials	1
Number of rows	1
Number of modules per row	12
with N terminal	yes
with PE terminal	yes

Colours

Base unit colour	grey
Cover colour	grey

Dimensions

Width	250 mm
Length	400 mm
Height	122 mm
Weight	4.085 kg

Material characteristics

UV-resistant	yes
Halogen free	yes
Flammability class according with UL94	V2
Glow-wire flammability according to EN 60695-2-11	850 °C

mechanical properties

Type of fastening	Wall mounting
Impact strength	IK08

Ambient conditions

max. relative humidity 25°C	95 %
max. relative humidity 40°C	50 %
Min. ambient temperature	-25 °C
Max. ambient temperature	40 °C
24h ambient temperature	35 °C
Installation location	protected outdoor areas

Sales Information

EAN	4013902934836
Packing Unit Code	CT
ETIM Class	EC000379
Custom tariff number	85369095

Material

Base unit material	Polycarbonate, glass-fibre reinforced
Cover material	Polycarbonate, glass-fibre reinforced
Sealing material	Polyurethane
Cover screw material	Polyamide, glass-fibre reinforced
Hinged window material	Polycarbonate
