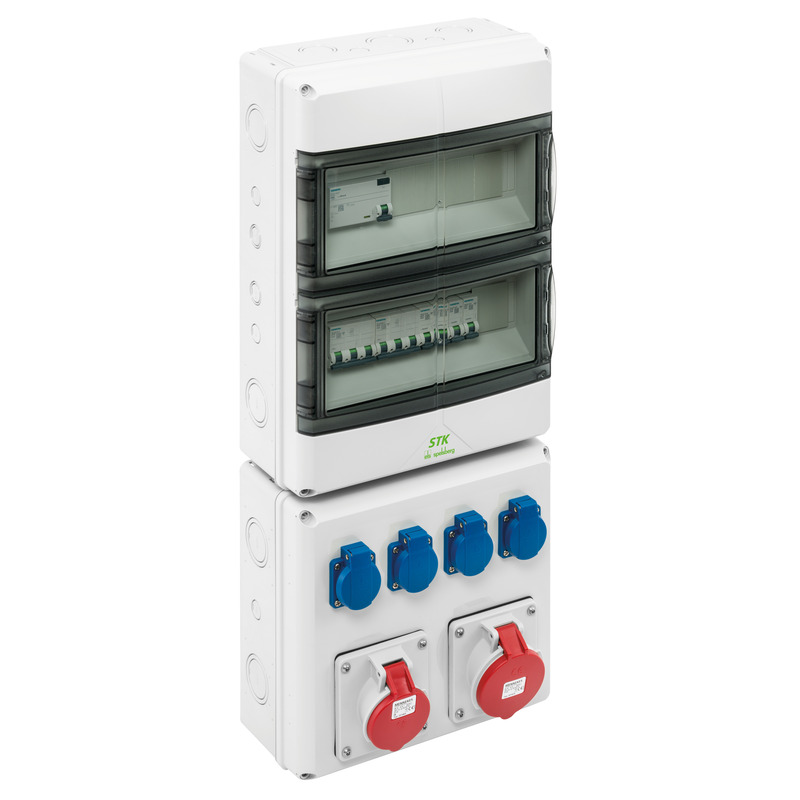

STK 2824-K1632

Productnumber: 73020101 | Dimensions: 315 x 750 x 198 mm

Socket outlet combination, protection class IP44, ready for connection in accordance with EN61439-3, with central terminal 4 - 25mm², 5-pole, also suitable for feed-through looping of the supply cable, standard rails can be removed without tools for easy cable routing in the enclosure, CEE socket outlets with 20° inclination, easy combination with STK-Z additional enclosures or AK Air small distribution boards with flange openings (AK-F), incl. flanges

available modules: 28

equipped with:

4 x Miniature circuit breaker C 16 A, 1p
1 x Miniature circuit breaker C 16 A, 3p
1 x Miniature circuit breaker C 32 A, 3p
1 x Residual Current Circuit Breaker (RCCB), 40/0.03A, 4-pole, type A
4 x SCHUKO^® plug socket (on front), 230V
1 x CEE plug socket outlet (on front) 16A, 400V
1 x CEE plug socket outlet (on front) 32A, 400V

Find wholesaler

Built-in devices

Residual Current Circuit Breaker (RCCB), 40/0.03A, 4-pole, type A	1
Miniature circuit breaker C 16 A, 3p	1
Miniature circuit breaker C 32 A, 3p	1
SCHUKO^® plug socket (on front), 230V	4
CEE plug socket outlet (on front) 16A, 400V	1
CEE plug socket outlet (on front) 32A, 400V	1
Miniature circuit breaker C 16 A, 1p	4

electrical characteristics

Rated operating voltage AC	400 V
Rated insulation voltage AC	400 V
Protection class	II
Type of protection	IP44
vented	yes
Number of N-potentials	1
Number of rows	2
Number of modules	28
Number of modules per row	14

Colours

Base unit colour	grey
Cover colour	grey

Dimensions

Width	315 mm
Length	750 mm
Height	198 mm
Inner width	295 mm
Inner height	106 mm
Weight	8.8 kg

Material characteristics

UV-resistant	yes
Halogen free	yes
Glow-wire flammability according to EN 60695-2-11	850 °C

mechanical properties

Type of fastening	Wall mounting
Impact strength	IK08
Sealable	yes
Cover screw torque	1.2 Nm
Flange variant	yes

Ambient conditions

max. relative humidity 25°C	90 %
max. relative humidity 40°C	50 %
Min. ambient temperature	-25 °C
Max. ambient temperature	40 °C
24h ambient temperature	35 °C
Installation location	protected outdoor areas

Sales Information

EAN	4013902690008
Packing Unit Code	CT
ETIM Class	EC000379
Custom tariff number	85369095

Material

Base unit material	Polycarbonate, glass-fibre reinforced
Cover material	Polycarbonate
Sealing material	Polyurethane
Cover screw material	Polyamide, glass-fibre reinforced
Hinged window material	Polycarbonate
