Socket outlet combination

STV 1224-S32

Productnumber: 73112401 | Dimensions: 250 x 400 x 122 mm

Socket outlet combination, protection class IP44, suitable for installation by the customer of rail mounted devices, with integrated sockets pre-wired to PE/N terminal, high mechanical load capacity, temperature-insensitive, combinable, halogen-free

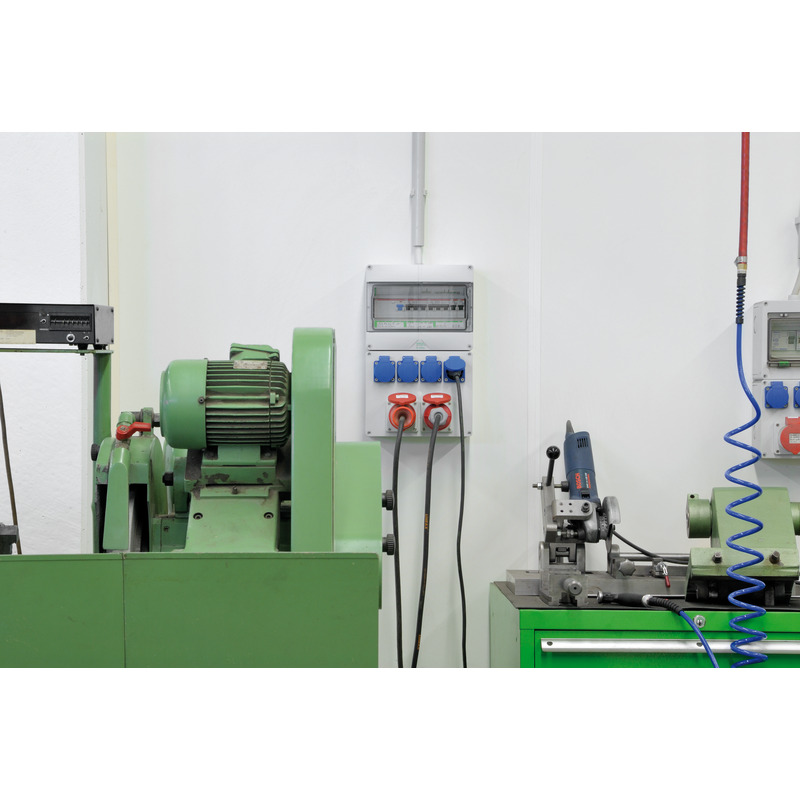

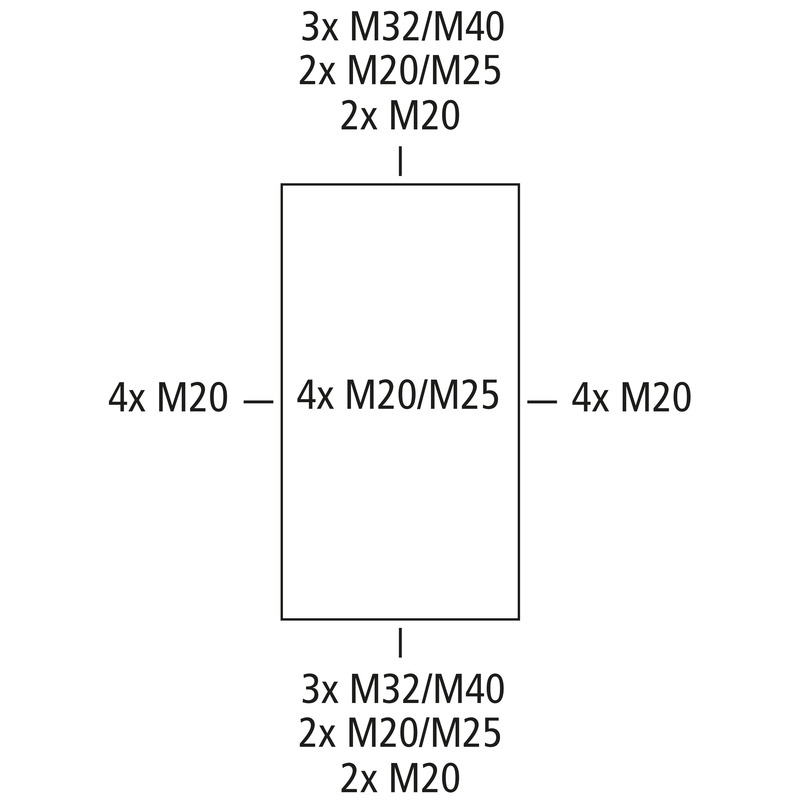

Cable insertions:
Top: Pre-embossing 2 x M20, 2 x M20/25, 3 x M32/40
Bottom: Pre-embossing 2 x M20, 2 x M20/25, 3 x M32/40
Left: Pre-embossing 4 x M20
Right: Pre-embossing 4 x M20

available modules: 12

equipped with:

4 x SCHUKO^® plug socket (on front), 230V
2 x CEE plug socket outlet (on front) 32A, 400V

Accessories supplied:
Attachment bushes: 2x M25, 2x M32, sealing plugs, masking and labelling strips

Find wholesaler

Built-in devices

SCHUKO^® plug socket (on front), 230V	4
CEE plug socket outlet (on front) 32A, 400V	2

electrical characteristics

Rated insulation voltage AC	400 V
Protection class	II
Type of protection	IP44
Number of N-potentials	1
Number of rows	1
Number of modules	12
Number of modules per row	12
with N terminal	yes
with PE terminal	yes

Colours

Base unit colour	grey
Cover colour	grey

Dimensions

Width	250 mm
Length	400 mm
Height	122 mm
Weight	2.875 kg

Material characteristics

UV-resistant	yes
Halogen free	yes
Flammability class according with UL94	V2
Glow-wire flammability according to EN 60695-2-11	850 °C

mechanical properties

Type of fastening	Wall mounting
Impact strength	IK08

Ambient conditions

max. relative humidity 25°C	95 %
max. relative humidity 40°C	50 %
Min. ambient temperature	-25 °C
Max. ambient temperature	40 °C
24h ambient temperature	35 °C
Installation location	protected outdoor areas

Sales Information

EAN	4013902934843
Packing Unit Code	CT
ETIM Class	EC000379
Custom tariff number	85369095

Material

Base unit material	Polycarbonate, glass-fibre reinforced
Cover material	Polycarbonate, glass-fibre reinforced
Sealing material	Polyurethane
Cover screw material	Polyamide, glass-fibre reinforced
Hinged window material	Polycarbonate

Download Data Sheet

Download Data Sheet

Dimensioned drawing

Dimensional drawing	dwg (2 MB)
Dimensional drawing	dxf (10 MB)
Dimensional drawing	jpg (2 MB)
Circuit diagram	pdf (43 KB)
Circuit diagram	jpg (693 KB)
Dimensional drawing	pdf (929 KB)
