Socket outlet combination, protection class IP44, suitable for installation by the customer of rail mounted devices, with integrated sockets pre-wired to PE/N terminal, high mechanical load capacity, temperature-insensitive, combinable, halogen-free

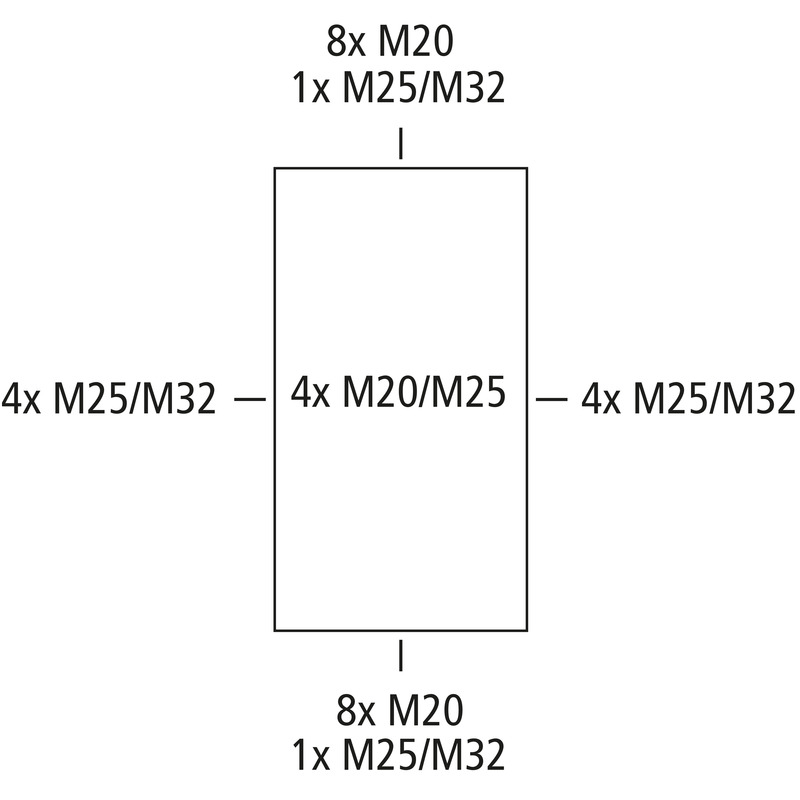

Cable insertions:
Top: Pre-embossing 8 x M20, 1 x M25/32
Bottom: Pre-embossing 8 x M16/20, 1 x M25/32
Left: Pre-embossing 4 x M20/25
Right: Pre-embossing 4 x M20/25
Rear: Pre-embossing 4 x M20/25
available modules: 9
equipped with:
- 1 x CEE plug socket outlet (on front) 16A, 400V
- 2 x Protective contact socket with integrated increased contact protection, French/Belgian standard (on front), 230V
Accessories supplied:
Attachment bushes: 2x M25, 2x M32, sealing plugs, masking and labelling strips
