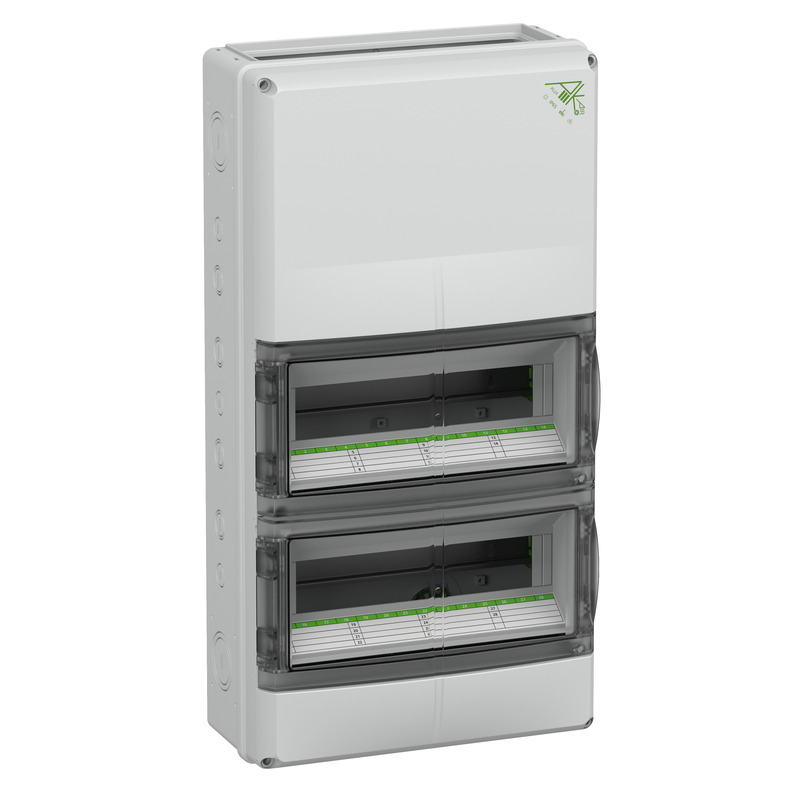

Small distributions boards

AK-F 28 Plus

Productnumber: 73372801 | Dimensions: 315 x 600 x 155 mm

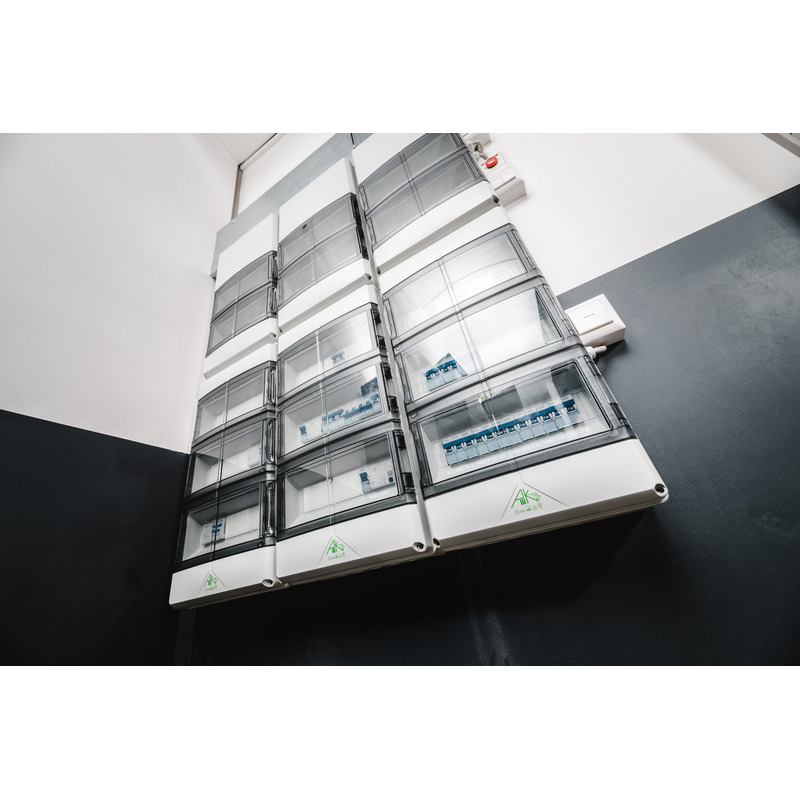

Small distributions boards, protection class IP65, 2 rows, 28 available modules, Flange type, with integrated ventilation elements for reducing the formation of condensation, rated operational voltage: 400V AC, rated insulation voltage: 1000V AC, 1500V DC, certified by VDE (DIN EN 60670-1/-24 (VDE 0606-1/-24)), UL-EU (EN 62208), UL-EU (EN 61439-1/-2), UL-EU (EN 61439-1/-3), UL-EU (EN 61439-1 & EN IEC 61439-7), DLG (Ammonia resistance), open top/bottom sides for the use with various flanges or for the combination of several AK-F distributors via combination flange, for installations in the industrial environment and protected outside areas

with extra connection space, with 35 mm standard rail, without PE/N terminal

Accessories supplied:

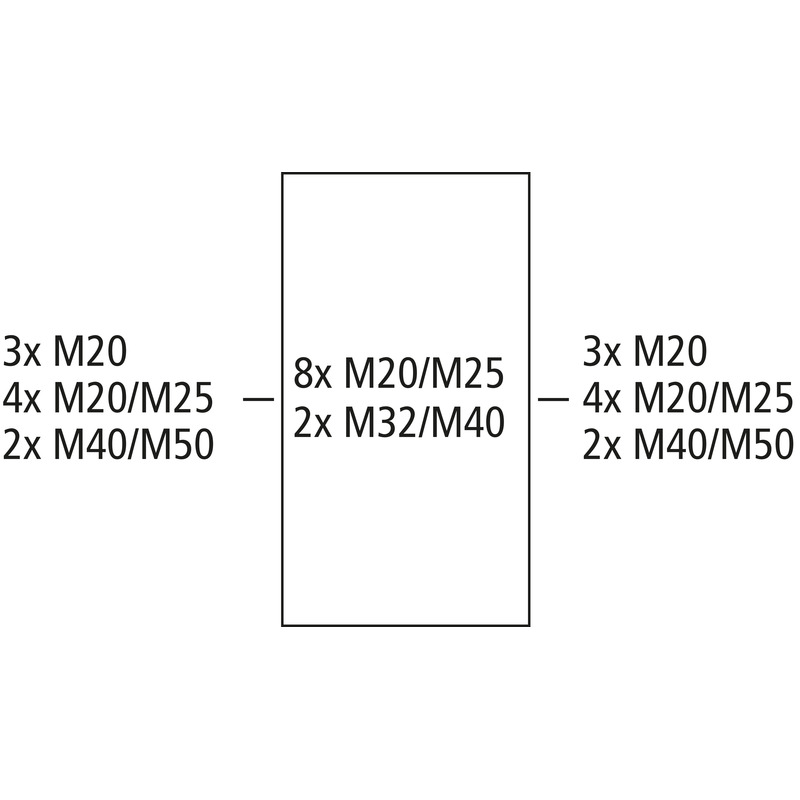

Double-membrane seals: 2x M16, 10x M20, 4x M25, 2x M32, 2x M40, sealing plugs, masking and labelling strips

Find wholesaler

Highlights

Reliable - The high protection class (IP65) and the robust, halogen-free design ensure reliable operation even in a tough industrial environment.

electrical characteristics

Rated operating voltage AC	400 V
Rated insulation voltage AC	1000 V
Rated insulation voltage DC	1500 V
Protection class	II
Type of protection	IP65
vented	yes
Number of rows	2
Number of modules	28
Number of modules per row	14

Colours

Base unit colour	grey
Cover colour	grey

Dimensions

Width	315 mm
Length	600 mm
Height	155 mm
Inner length	580 mm
Inner width	295 mm
Inner height	101 mm
Weight	4.388 kg

Material characteristics

UV-resistant	yes
Halogen free	yes
Flammability class according with UL94	V2
Glow-wire flammability according to EN 60695-2-11	960 °C

mechanical properties

Type of fastening	Surface mounting
Impact strength	IK08
Sealable	yes
Cover screw torque	1.2 Nm
Flange variant	yes
Stackable	yes

Ambient conditions

max. relative humidity 25°C	90 %
max. relative humidity 40°C	50 %
Min. ambient temperature	-35 °C
Max. ambient temperature	80 °C
24h ambient temperature	60 °C
Installation location	protected outdoor areas

Sales Information

EAN	4013902515547
Packing Unit Code	CT
ETIM Class	EC000214
Custom tariff number	85389099

Material

Base unit material	Polycarbonate
Cover material	Polycarbonate
Sealing material	Polyurethane
Cover screw material	Polyamide, glass-fibre reinforced
Hinged window material	Polycarbonate

Certificates

Test mark	VDE (DIN EN 60670-1/-24 (VDE 0606-1/-24))
Test mark	UL-EU (EN 62208)
Test mark	UL-EU (EN 61439-1/-2)
Test mark	UL-EU (EN 61439-1/-3)
Test mark	UL-EU (EN 61439-1 & EN IEC 61439-7)
Test mark	DLG (Ammonia resistance)

Download Data Sheet

Download Data Sheet

Labelling strips

Labelling strips	pdf (5 MB)

Handbook

Product manual DE	pdf (4 MB)
Product manual EN	pdf (3 MB)

Dimensioned drawing

Dimensional drawing	pdf (2 MB)
Dimensional drawing	dxf (1 MB)
Dimensional drawing	dwg (315 KB)
Dimensional drawing	jpg (2 MB)

Certificate

DLG Approval DE	pdf (2 MB)
CE Declaration DE/EN/FR	pdf (220 KB)
UKCA Declaration EN	pdf (49 KB)
DLG Approval EN	pdf (2 MB)
UL-EU Certificate (EN-Standard) EN	pdf (396 KB)
VDE Certificate (DIN EN 60670-24) DE/EN	pdf (317 KB)
UL-EU Certificate (EN-Standard) EN	pdf (252 KB)
CE Declaration DE/EN/PL	pdf (222 KB)
UL-EU Certificate (EN-Standard) EN	pdf (397 KB)
UL-EU Certificate (EN 61439-7) EN	pdf (257 KB)

Accessories

Flange for AK-F AK3 FL00

Dimensions : 79,9 x 266,2 x 40 mm
Productnumber: 73382001

without knockouts

Enclosure wall including flange connector for sealing the face of AK-F enclosures
