AK-F 14 L-g

AK-F 14 L-g

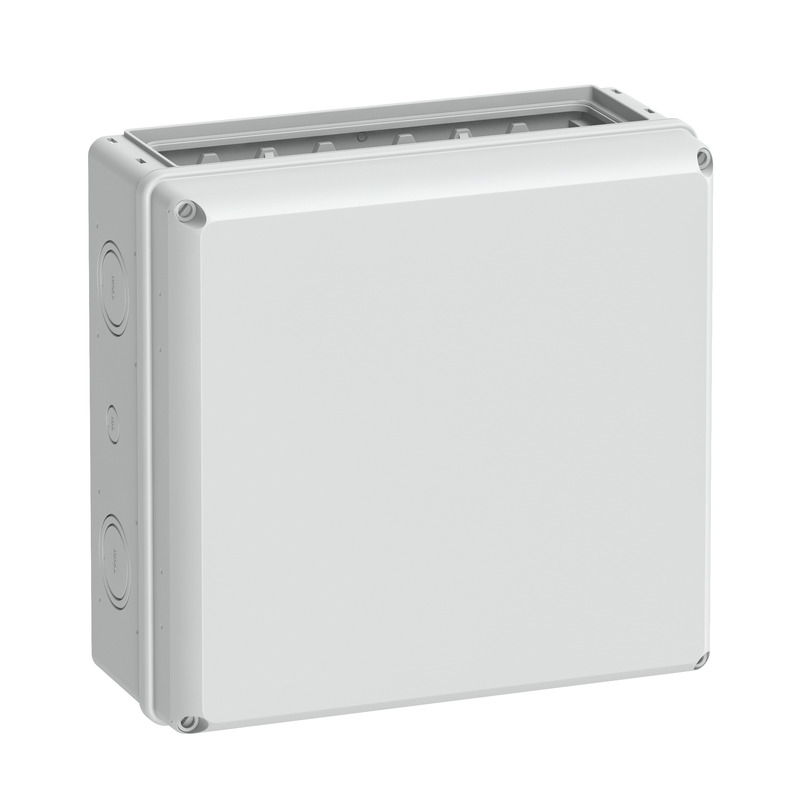

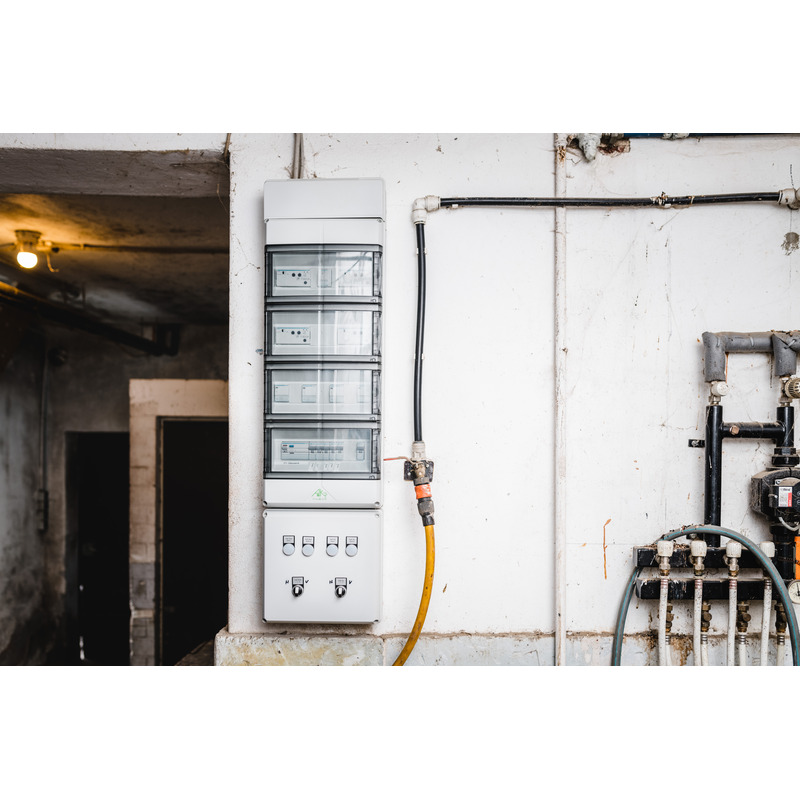

Empty enclosure

AK-F 14 L-g

Productnumber: 73351001 | Dimensions: 315 x 300 x 147 mm

Empty enclosure, protection class IP65, Plastic, certified by DLG (Ammonia resistance), U_i=1000V AC, U_i=1500V DC, for AK 14-56 small distribution boards, for individual expansion by adding standard rails or mounting plates

Box: Plastic, grey, Lid: Polycarbonate, grey, open top/bottom sides for the use with various flanges or for the combination of several AK-F distributors via combination flange

Accessories supplied:
Double-membrane seals: 1x M16, 5x M20, 2x M25, 1x M32, 1x M40, sealing plugs, masking and labelling strips

Find wholesaler

electrical characteristics

Rated operating voltage AC	400 V
Rated insulation voltage AC	1000 V
Rated insulation voltage DC	1500 V
Protection class	II
Type of protection	IP65
UL Type Rating	not specified

Colours

Base unit colour	grey
Cover colour	grey

Dimensions

Width	315 mm
Length	300 mm
Height	147 mm
Inner length	310 mm
Inner width	295 mm
Weight	1.536 kg

Material characteristics

UV-resistant	yes
Halogen free	yes
Flammability class according with UL94	V2
Glow-wire flammability according to EN 60695-2-11	960 °C

mechanical properties

Type of fastening	Surface mounted
Impact strength	IK08
Flange variant	yes
Type of top part	Cover

Ambient conditions

max. relative humidity 25°C	95 %
max. relative humidity 40°C	50 %
Min. ambient temperature	-25 °C
Max. ambient temperature	40 °C
24h ambient temperature	35 °C
Installation location	protected outdoor areas

Sales Information

EAN	4013902575671
Packing Unit Code	CT
ETIM Class	EC000058
Custom tariff number	85389099

Material

Base unit material	Plastic
Cover material	Polycarbonate

Certificates

Test mark	DLG (Ammonia resistance)

Download Data Sheet

Download Data Sheet

Dimensioned drawing

Dimensional drawing	pdf (871 KB)
Dimensional drawing	dxf (17 MB)
Dimensional drawing	dwg (4 MB)
Dimensional drawing	jpg (1 MB)

Certificate

CE Declaration DE/EN/FR	pdf (220 KB)
CE Declaration DE/EN/PL	pdf (222 KB)
UKCA Declaration EN	pdf (49 KB)

Accessories

Flange for AK-F - AK3 FL00

Flange for AK-F AK3 FL00

Dimensions : 79,9 x 266,2 x 40 mm
Productnumber: 73382001

without knockouts

Enclosure wall including flange connector for sealing the face of AK-F enclosures

Watchlist

Flange for AK-F - AK3 FL01

Flange for AK-F AK3 FL01

Dimensions : 79,9 x 266,2 x 40 mm
Productnumber: 73382101

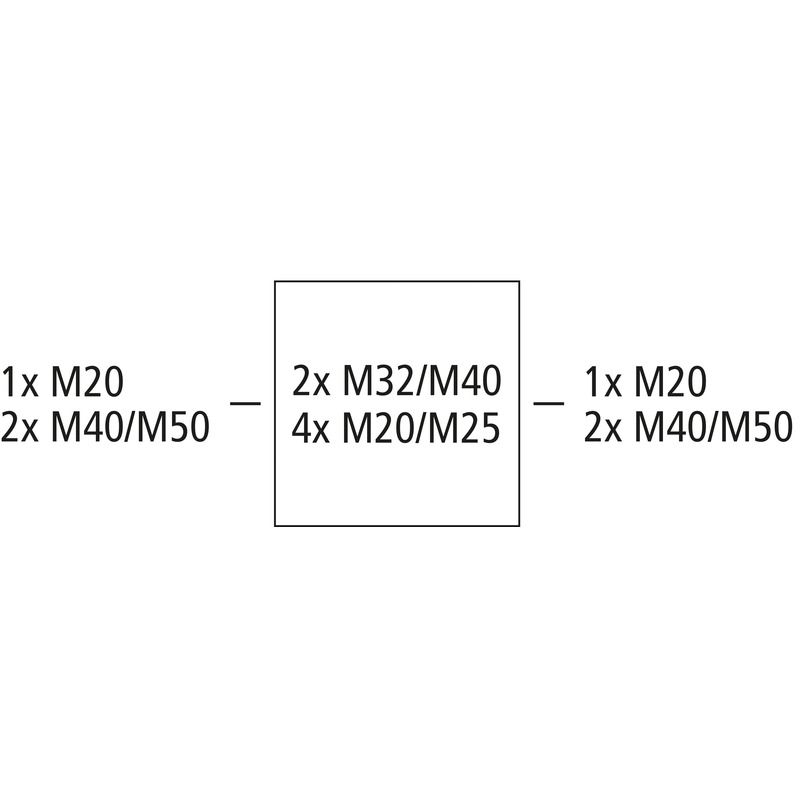

with knockouts: 1 x M50/M40, 2 x M40/32, 2 x M20

Enclosure wall including flange connector for sealing the face of AK-F enclosures

Watchlist

Flange for AK-F - AK3 FL02

Flange for AK-F AK3 FL02

Dimensions : 79,9 x 266,2 x 40 mm
Productnumber: 73382201

with knockouts: 5 x M25/M20, 4 x M20, 2 x M16

Enclosure wall including flange connector for sealing the face of AK-F enclosures

Watchlist

Flange for AK-F - AK3 FL13

Flange for AK-F AK3 FL13

Dimensions : 79,9 x 266,2 x 40 mm
Productnumber: 73382801

with cable entries via double membrane seals DMS M32 and opening for...

Enclosure wall including flange connector for sealing the face of AK-F enclosures

Watchlist

Flange for AK-F - AK3 KFL

Flange for AK-F AK3 KFL

Dimensions : 79,9 x 266,2 x 40 mm
Productnumber: 73382901

Combination flange incl. flange connector for the front connection of AK-F enclosures

Watchlist

Combination cable gland - AK3 KS M50

Combination cable gland AK3 KS M50

Dimensions : 130 x 80 x 50 mm
Productnumber: 73383001

M50 combination cable gland for lateral connection of enclosures AK/AK-F 14/28/42/56/70 including...

Watchlist

External hinge - AK3 AS

External hinge AK3 AS

Dimensions : 40 x 27 x 61 mm
Productnumber: 73383701

only for AK 14 L - addition and empty enclosure

External hinge set

Watchlist

Mounting plate - AK3 MPI 14 L

Mounting plate AK3 MPI 14 L

Dimensions : 240 x 4 x 215 mm
Productnumber: 73383801

for AK 14 L addition and empty enclosure

Assembly plate in melamine-clad insulating material, 4 mm thick, incl. fixing screws, grey

Watchlist

new

Terminal rails - AK3 3/14 PE

Terminal rails AK3 3/14 PE

Productnumber: 73385001

Base carrier with PE terminal rail with 3 screw terminals 2.5-16mm²...

Base support with integrated PE terminal rail, for installation in AK small distribution board from...

Watchlist

new

Terminal rails - AK3 6/21 PE

Terminal rails AK3 6/21 PE

Productnumber: 73385101

Base carrier with PE terminal rail with 6 screw terminals 2.5-16mm²...

Base support with integrated PE terminal rail, for installation in AK small distribution board from...

Watchlist

new

N-Module-Set - AK3 1/6/1 N

N-Module-Set AK3 1/6/1 N

Productnumber: 73385201

4 N-modules each with 2 screw terminals 2.5-16mm² and 6 push-in...

N-module with operating lever for tool-free release of the wires, with 2 screw terminals each...

Watchlist

Cable cover - AK3 KBL

Cable cover AK3 KBL

Dimensions : 113,3 x 315,5 x 126 mm
Productnumber: 73383101

Cable cover for the attachment to AK/AK-F 14/28/42/56/70 housings, as well as Plus types, can be...

Watchlist

CAD-Data

CAD-Data	Download 3D-CAD-Data

Tender text

Log in to mySpelsberg to download tender texts. mySpelsberg Login

Similar products

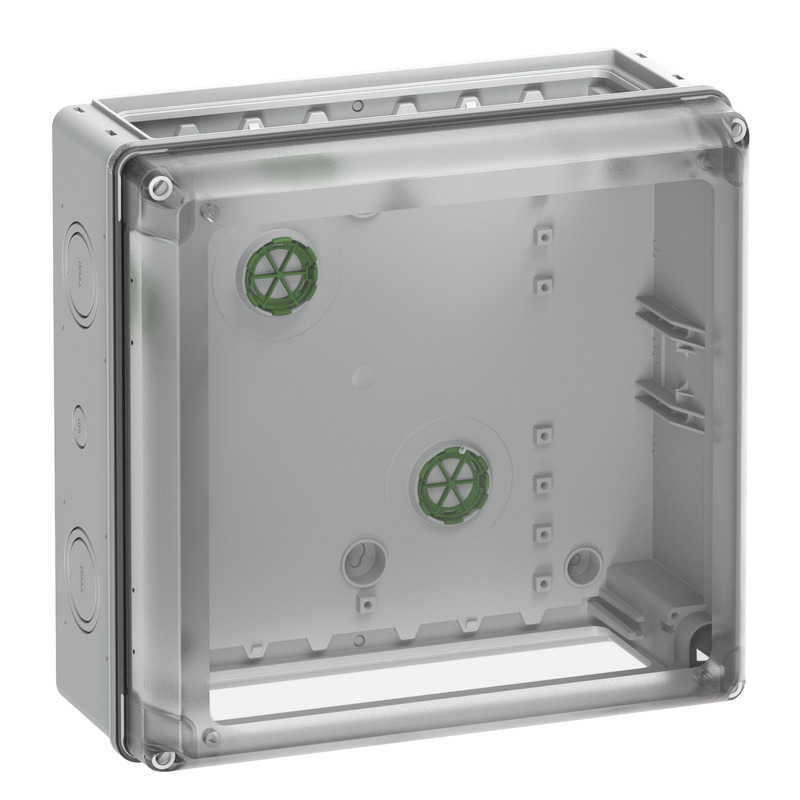

Empty enclosure - AK-F 14 L-t
