Protection rating (IP code) in
accordance with DIN EN 60529
(VDE 0470-1)
Level of protection (IK code) against
mechanical impact in accordance with
DIN EN 50102 (VDE 0470-100)
Protection class II
Equipment with protective insulation
in accordance with DIN VDE 0100-410
Rated voltage For use in AC voltage
systems, maximum permissible nominal
voltage of the electrical system
Halogen-free enclosure,
without halogens such as fluorine, chlorine
and bromine
Suitable for the installation of an
electronic household meter
Maximum number of division units
The VDE symbol stands for the tested
safety of the product in respect of electrical,
mechanical, thermal and other hazards
| Ambient temperature | Max. relative humidity | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| min. | max. | average over 24 h | at 40°C | at 25°C (short-term) | Protection rating according to DIN EN 60529 / VDE 0470-11) | Shock-proof as per DIN EN 50102 / DE 0470 Teil 100 | ||||
| AKI, ZVI, ZKI housing | -35°C | 80°C | 60°C | -25°C | 40°C | 35°C | 50% | 95% | IP652) | IK08 |
| SVI housing | -35°C | 80°C | 60°C | -25°C | 40°C | 35°C | 50% | 95% | IP652) | IK07 |
Additional note: The specified temperatures may be limited by the installed devices.
1) When used with suitable connectors or cable glands
2) Housings with insertion sealing have protection class IP54
| Material | Used in the products: | Weak acids | Weak acids | Weak alkalis | Strong alkalis | Alcohol | Petrol | Benzene | Mineral oil | Diesel | Amonia, gaseous | Vegetable fats | Animal fats | Halogen-free | Heavy metal- | Combustion behaviour in accordance with |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Polycarbonate, glass-fibre-reinforced | ZKI, ZVI, SVI, AKi | o | x | x | x | o | ø | x | o | x | o | o | ø | yes | yes | 960°C/ V-2 (5VA*) |
| Polycarbonat | cover ZKI, ZVI, SVI, AKi | o | x | x | x | ø | ø | x | o | ø | o | o | ø | yes | yes | 850°C / V-2 |
| Polyamid 6, glass-fibre-reinforced | cable glands IP 68, cover screws | x | x | o | o | o | o | ø | o | o | o | o | o | yes | yes | 750°C / HB/V-2 |
* 5-inch (127 mm) flame test in accordance with UL 746 C (comparable with the requirements in accordance with UL 94, 5VA)
The materials used by Spelsberg have been subjected to a weathering test in accordance with DIN 53 387 (superseded by DIN EN ISO 4892-2) and a
1000-hour test by the State Testing Office in Dortmund. The materials used for the IQ products achieved optimal results as can be seen here.
This material also passed the UV resistance test in accordance with UL 746 C unconditionally.
In principle, not only the level of protection but also the climatic conditions and the occurrence of chemical influences should be assessed when selecting
the installation site. Details of the material properties and chemical resistance of the materials used can be taken from the table though it should
be noted that they are only guide values.
The power dissipation data can be found on the product detail page of the respective product under "Powerdissipation".

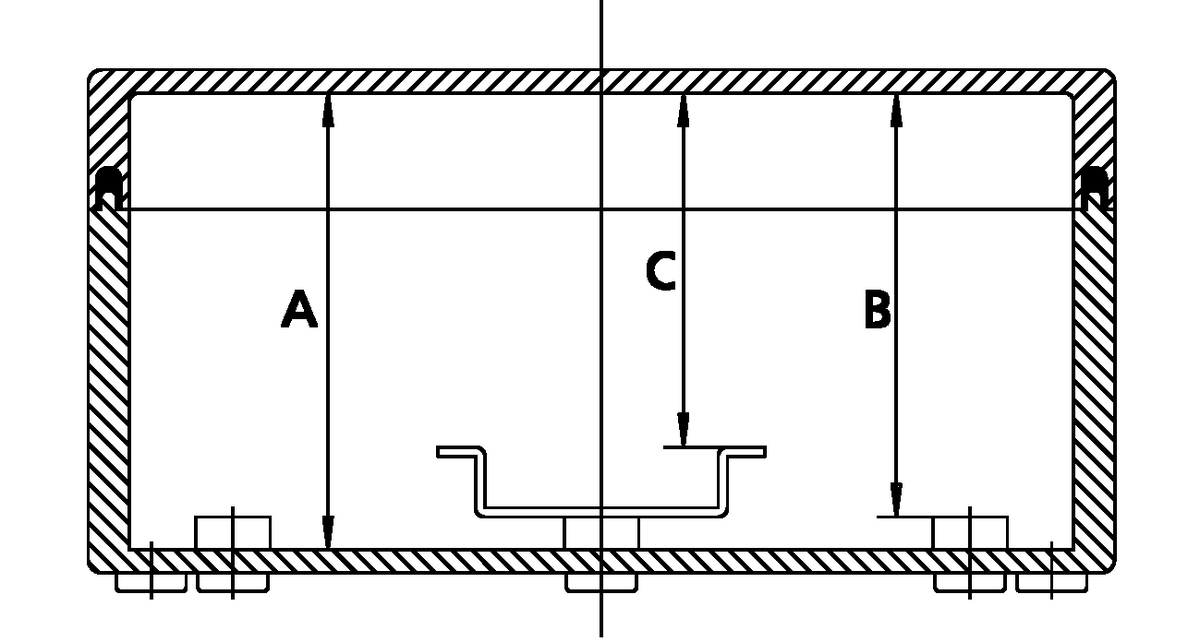

AKZ- / AKi-Z Meter housing | A | B | C |
|---|---|---|---|
| AKZ / AKi-Z meter space | 194,5 | 191 | 183,5 |
| AKZ / AKi-Z connectrion space | 117,5 | 114 | 90 |
| SVi housing height 137mm | 119 | 111,5 | -- |
| SVi housing height 162mm | 144 | 136,5 | -- |
