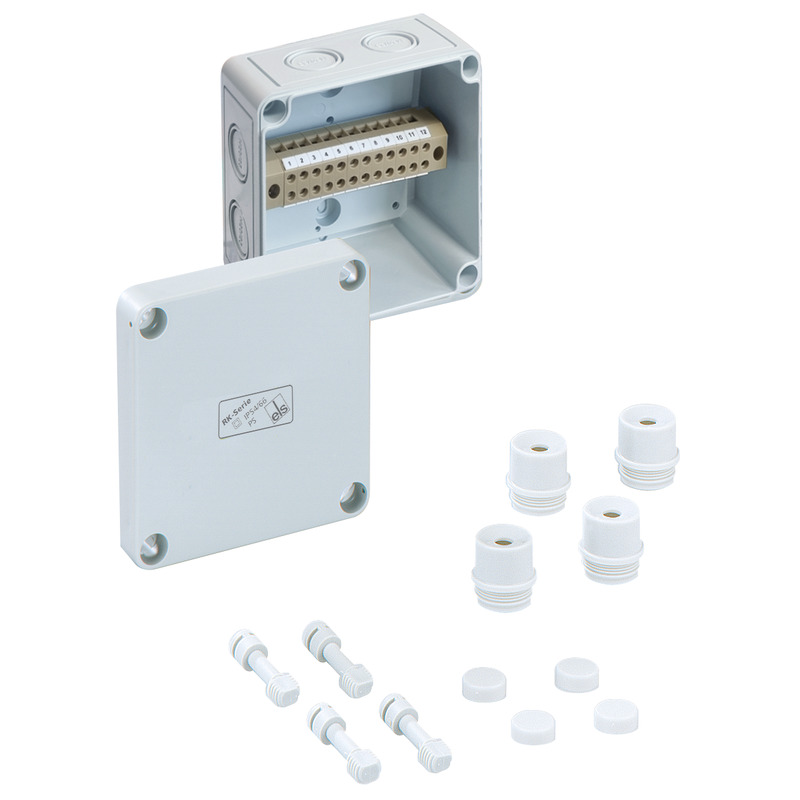

Terminal block enclosure
Productnumber: 61040401 | Dimensions: 110 x 110 x 66 mm
Terminal block enclosure, protection class IP54/IP66, nominal cross-section 4 mm², Ui=400V AC, Polystyrene, internal fixing points, for standard indoor installations
equipped with 12-pole terminal block 4mm² (Contaclip BKA 4 type)
Accessories supplied:

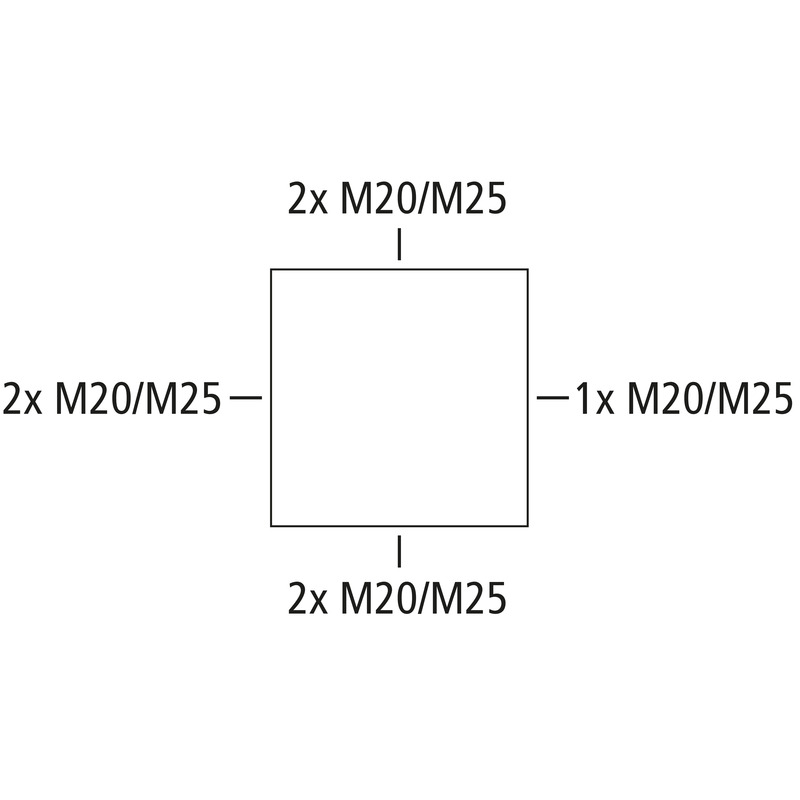

4 attachment bushes IP54 M20 seal range 8 - 13,5 mm
| Rated insulation voltage AC | 400 V |
|---|---|
| Max. conductor cross section | 4 mm² |
| Protection class | II |
| Type of protection | IP54/IP66 |
| UL Type Rating | not specified |
| Width | 110 mm |
|---|---|
| Length | 110 mm |
| Height | 66 mm |
| Weight | 0.254 kg |
| UV-resistant | no |
|---|---|
| Halogen free | yes |
| Flammability class according with UL94 | HB |
| Glow-wire flammability according to EN 60695-2-11 | 650 °C |
| Type of fastening | Wall/ceiling mounting |
|---|---|
| Impact strength | IK07 |
| Sealable | yes |
| Fastening | internal fixing points |
| max. relative humidity 25°C | 95 % |
|---|---|
| max. relative humidity 40°C | 50 % |
| Min. ambient temperature | -25 °C |
| Max. ambient temperature | 40 °C |
| 24h ambient temperature | 35 °C |
| Installation location | Indoors |
| EAN | 4013902090051 |
|---|---|
| Packing Unit Code | C62 |
| ETIM Class | EC002713 |
| Custom tariff number | 85369095 |
| Base unit material | Polystyrene |
|---|---|
| Cover material | Polystyrene |
| Sealing material | Polyurethane |
| Cover screw material | Polyamide, glass-fibre reinforced |
| CAD-Data | Download 3D-CAD-Data |
|---|
