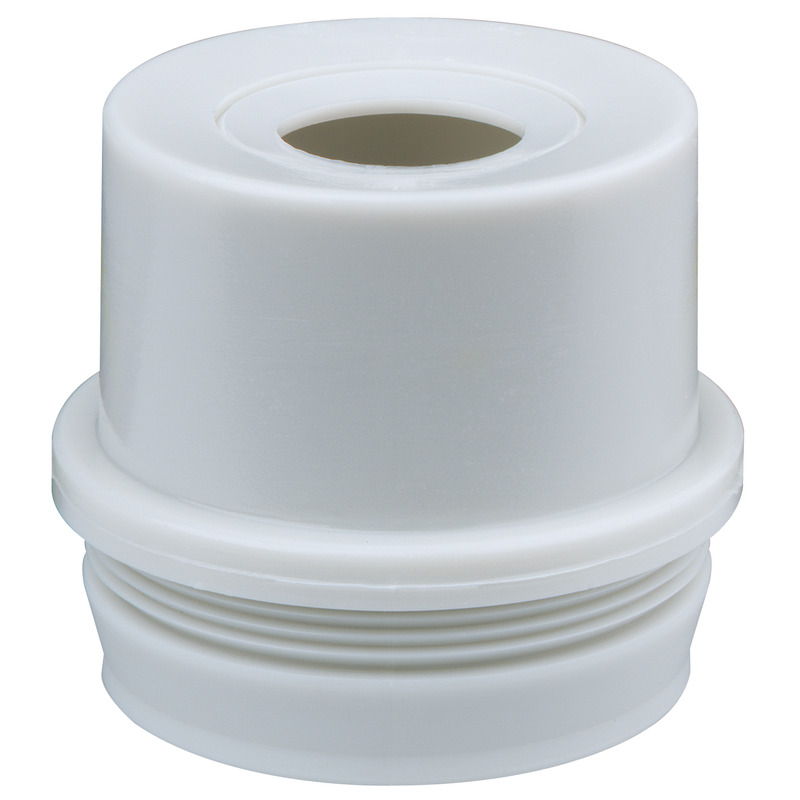

Mounting socket IP55, with open sealing membrane, thermoplastic elastomer (TPE), for wall thicknesses from 1.5 - 4.0 mm, grey
Sealing range 8 - 13,5 mm
Attachment bushes
AST M20
Productnumber: 23042001 | Dimensions: 24,5 x 24,5 x 22,5 mm
- Find wholesaler
electrical characteristics
| Type of protection | IP55 |
|---|
Colours
| Accessory colour | light grey |
|---|
Dimensions
| Width | 24.5 mm |
|---|---|
| Length | 24.5 mm |
| Height | 22.5 mm |
| Nominal size | M20 |
| Weight | 0.0027 kg |
Material characteristics
| UV-resistant | no |
|---|---|
| Halogen free | yes |
| Flammability class according with UL94 | HB |
| Glow-wire flammability according to EN 60695-2-11 | 650 °C |
mechanical properties
| for sealing range min | 8 mm |
|---|---|
| for sealing range max | 13.5 mm |
Ambient conditions
| Installation location | Indoors |
|---|
Sales Information
| EAN | 4013902852123 |
|---|---|
| Packing Unit Code | C62 |
| ETIM Class | EC000451 |
| Custom tariff number | 39269097 |
