This article is archived!

Installation housing

IBTronic H120-0

Productnumber: 97600301 | Dimensions: 150 x 150 x 106 mm

Installation housing, for site cast or prefabricated concrete structures, for the installation of LV/HV/LED-luminaires and loudspeakers, suitable for adhesive fixing and opposing shuttering, for installation in ceilings from 140 mm, wall installation with IBT support spars, for the installation of VDE-approved lights per DIN EN 60598 (VDE 0711), as well as with F identification or MM identification, protection class IP30, rated insulation voltage: 400V AC, Halogen free

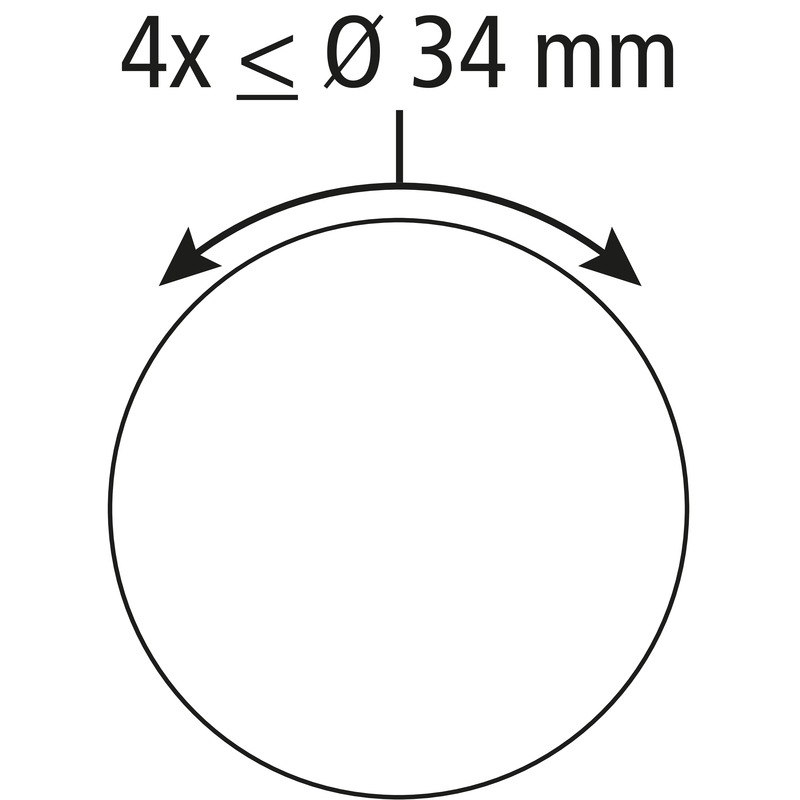

selectable outlet aperture: Ø 108/120 mm For the installation of VDE-tested luminaires in accordance with DIN EN 60598 (VDE 0711), and with F-identification or MM-identification, maximum installation depth LV luminaires: 75 mm, HV lights: 80 mm, lamp output halogen max. 50 W, lamp output, LED max. 20 W, adhesive fixing or nail installation, membrane for perforation, sealing range M16 - M32

Find wholesaler

electrical characteristics

Rated insulation voltage AC	400 V
Type of protection	IP30
Suitable for	Concrete construction

Colours

Cover colour	other

Dimensions

Width	150 mm
Length	150 mm
Height	106 mm
Inner height	80 mm
Weight	0.216 kg

Material characteristics

Halogen free	yes
Flammability class according with UL94	HB
Glow-wire flammability according to EN 60695-2-11	650 °C

mechanical properties

Type of fastening	adhesive fixing or nail installation

Ambient conditions

max. relative humidity 25°C	- %
max. relative humidity 40°C	50 %
Min. ambient temperature	-25 °C
Max. ambient temperature	40 °C
24h ambient temperature	35 °C

Sales Information

EAN	4013902926374
Packing Unit Code	C62
ETIM Class	EC000414
Custom tariff number	39269097

Material

Base unit material	Polypropylene
Cover material	Polypropylene

Download Data Sheet

Download Data Sheet

Installation instructions

Assembly instruction	pdf (592 KB)

Dimensioned drawing

Dimensional drawing	pdf (70 KB)
Dimensional drawing	dxf (2 MB)
Dimensional drawing	dwg (508 KB)
Dimensional drawing	jpg (981 KB)

Certificate

CE Declaration DE/EN/FR	pdf (222 KB)
UKCA Declaration EN	pdf (50 KB)
CE Declaration DE/EN/PL	pdf (315 KB)

Accessories

This article is archived!

Standard rail NS 35-90

Dimensions : 80 x 88 x 7,5 mm
Productnumber: 97980001

standard rail (35 mm) for subsequent installation in IBTronic-TT...

Standard rail acc. to DIN EN 60715, 35 x 7.5mm
