Junction box
Productnumber: 86220301 | Dimensions: 115 x 115 x 93 mm

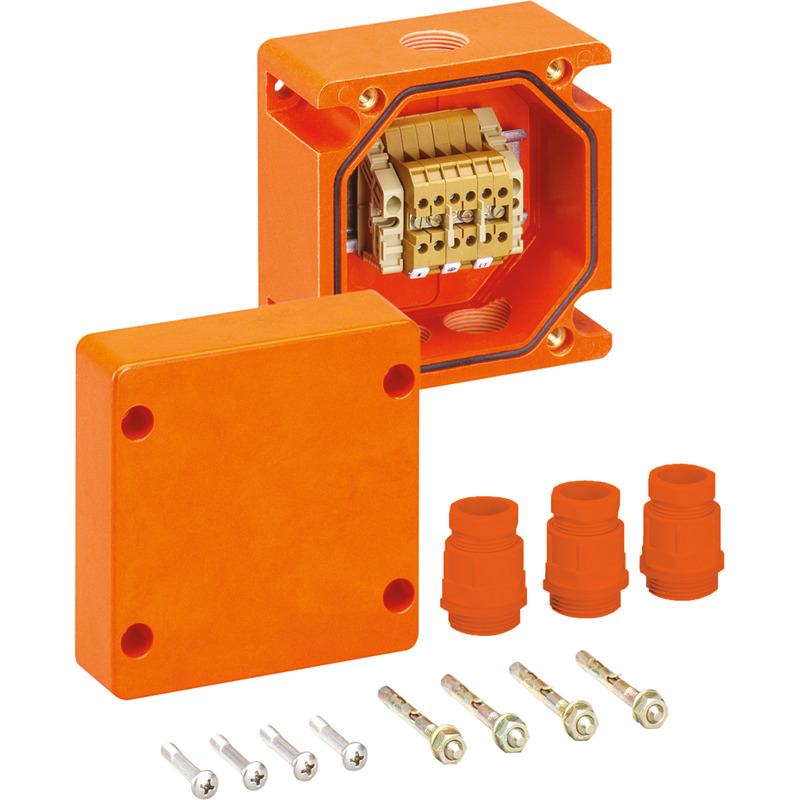

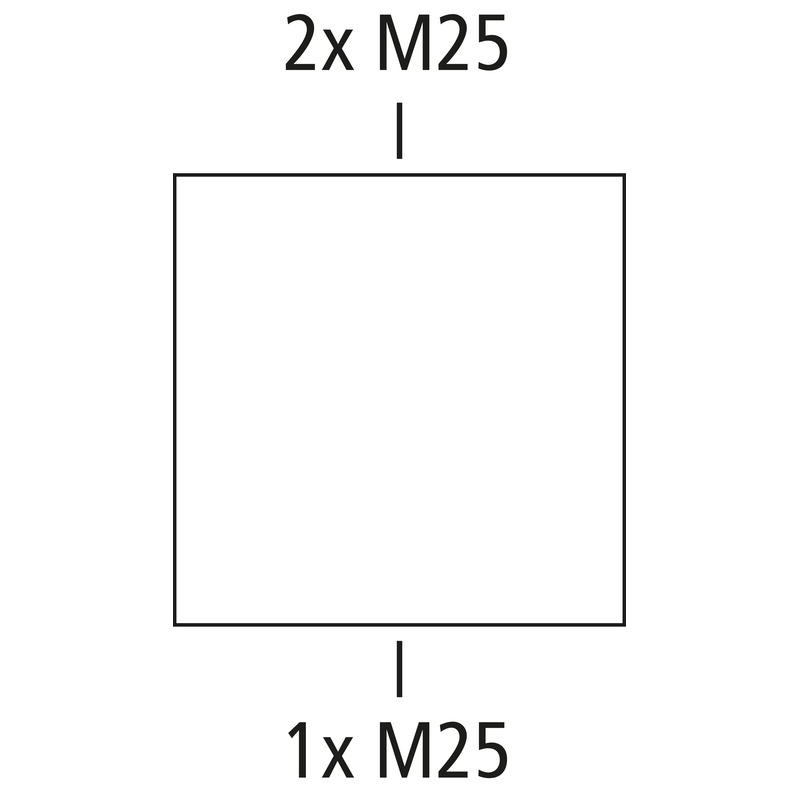

Junction box, protection class IP66, Ui=450 V AC, certified by VDE (DIN EN 60670-1/-22 (VDE 0606-1/-22)), M25, (3 side), external fixing lugs, with E30 electrical functional integrity according to DIN 4102 Part 12, enclosure and terminal block are made from halogen-free special thermosetting plastic
orange, Junction box 3-pole, clamping capacity per pole 4 x 0.5 - 4 mm²
Accessories supplied:
3 cable glands M25, seal range 6 - 15 mm, Wall plug set ø 6 mm
| Rated insulation voltage AC | 450 V |
|---|---|
| Rated insulation voltage DC | 450 V |
| Min. conductor cross section | 0,5 mm² |
| max. wire cross section (wire branching) | 4 mm² |
| Min. conductor cross section | 0,5 mm² |
| Max. conductor cross section | 4 mm² |
| Protection class | II |
| Type of protection | IP66 |
| secured junction | no |
| Circuit integrity class | E30 |
| Number of poles (T-piece) | 3 |
| Number of poles (feed-through) | 3 |
| UL Type Rating | not specified |
| Number of fuses in T-piece | 0 |
| Base unit colour | orange |
|---|---|
| Cover colour | orange |
| Range of application | Connectors and T-pieces |
|---|
| Width | 115 mm |
|---|---|
| Length | 115 mm |
| Height | 93 mm |
| Weight | 1.39 kg |
| UV-resistant | yes |
|---|---|
| Halogen free | yes |
| Flammability class according with UL94 | V0 |
| Glow-wire flammability according to EN 60695-2-11 | 960 °C |
| Type of fastening | Wall/ceiling mounting |
|---|---|
| Impact strength | IK08 |
| Sealable | no |
| Cover screw torque | 2.5 Nm |
| Fastening | external fixing lugs |
| max. relative humidity 25°C | 95 % |
|---|---|
| max. relative humidity 40°C | 50 % |
| Min. ambient temperature | -25 °C |
| Max. ambient temperature | 40 °C |
| 24h ambient temperature | 35 °C |
| Installation location | protected outdoor areas |
| EAN | 4013902907557 |
|---|---|
| Packing Unit Code | CT |
| ETIM Class | EC002600 |
| Custom tariff number | 85369095 |
| Base unit material | Duroplast |
|---|---|
| Cover material | Duroplast |
| Sealing material | Polyurethane |
| Cover screw material | Stainless steel V2A |
| Test mark | VDE (DIN EN 60670-1/-22 (VDE 0606-1/-22)) |
|---|
