Abox-i m 040 SB-L

Abox-i m 040 SB-L

Junction box

Abox-i m 040 SB-L

Productnumber: 50170401 | Dimensions: 94 x 94 x 57 mm

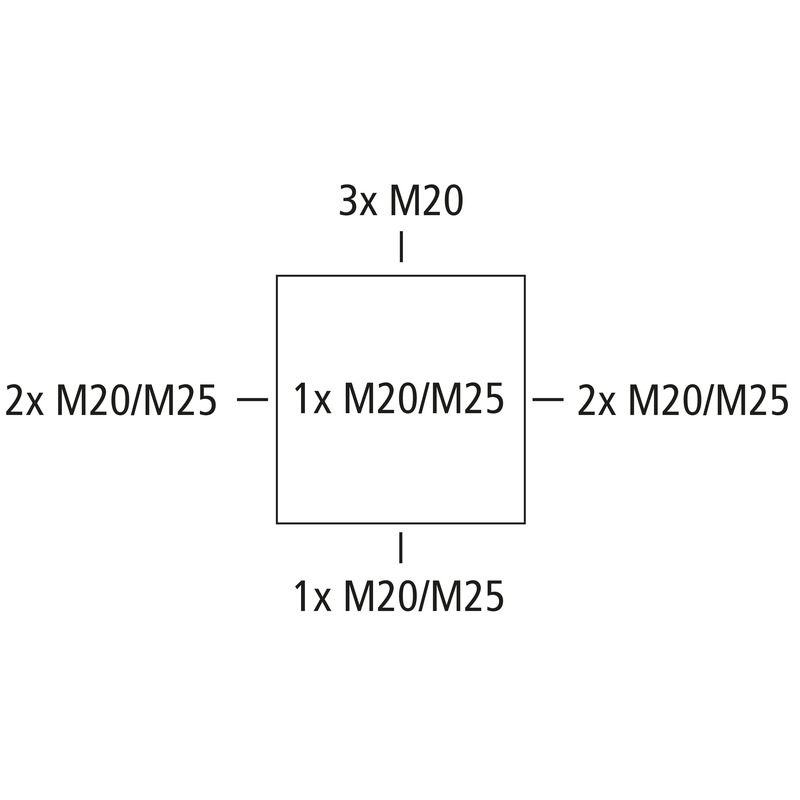

Junction box, protection class IP66, nominal cross-section 4 mm², U_i=690 V AC, certified by VDE (DIN EN 60670-1/-22 (VDE 0606-1/-22)), DLG (Ammonia resistance), DNV (Class: Ships and Offshore Installations), knockouts, M20/M25, (1 rear, 8 side), internal fixing points, for installations in industrial environments and protected outdoor areas

grey, with red cover, without terminals, for identifying circuits for safety lighting

Accessories supplied:
4 Double-membrane seal IP66 M25 sealing range 9 - 16 mm

Find wholesaler

electrical characteristics

Rated insulation voltage AC	690 V
Max. conductor cross section	4 mm²
Protection class	II
Type of protection	IP66
UL Type Rating	not specified

Colours

Base unit colour	grey
Cover colour	red

Dimensions

Width	94 mm
Length	94 mm
Height	57 mm
Weight	0.1496 kg

Material characteristics

UV-resistant	yes
Halogen free	yes
Flammability class according with UL94	V2
Glow-wire flammability according to EN 60695-2-11	960 °C

mechanical properties

Type of fastening	Wall/ceiling mounting
Impact strength	IK08
Sealable	yes
Cover screw torque	1.7 Nm
Fastening	internal fixing points

Ambient conditions

max. relative humidity 25°C	95 %
max. relative humidity 40°C	50 %
Min. ambient temperature	-35 °C
Max. ambient temperature	80 °C
24h ambient temperature	60 °C
Installation location	protected outdoor areas

Sales Information

ETIM Class	EC002600
Custom tariff number	85389099

Material

Base unit material	Polycarbonate
Cover material	Polycarbonate, glass-fibre reinforced
Sealing material	Thermoplastic elastomer
Cover screw material	Stainless steel V2A

Certificates

Test mark	VDE (DIN EN 60670-1/-22 (VDE 0606-1/-22))
Test mark	DLG (Ammonia resistance)
Test mark	DNV (Class: Ships and Offshore Installations)

Download Data Sheet

Download Data Sheet

Dimensioned drawing

Dimensional drawing	pdf (410 KB)
Dimensional drawing	dxf (5 MB)
Dimensional drawing	dwg (936 KB)
Dimensional drawing	jpg (1 MB)
