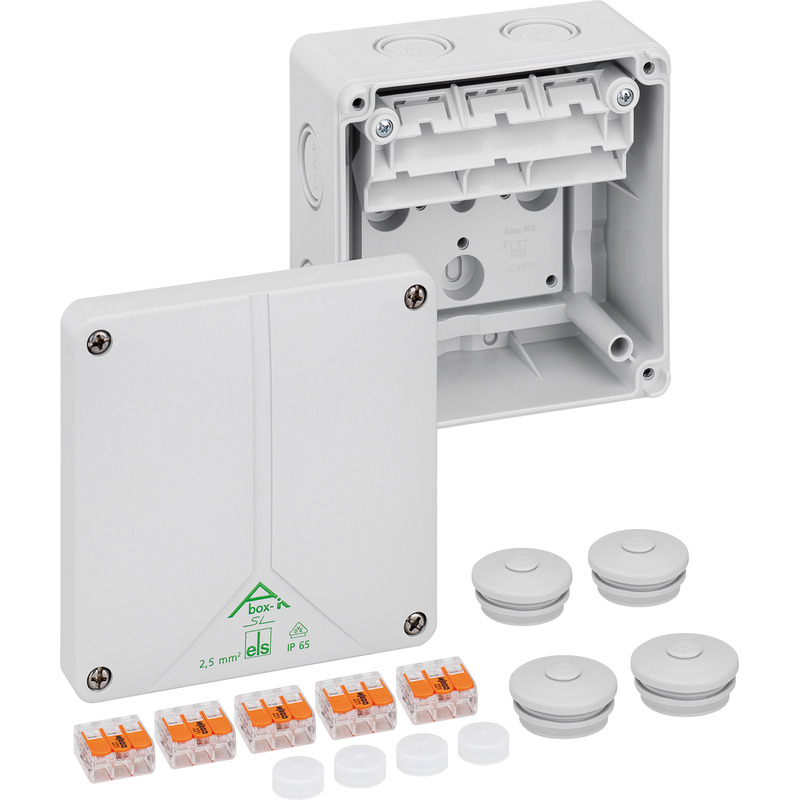

Junction box
Productnumber: 49089602 | Dimensions: 110 x 110 x 67 mm

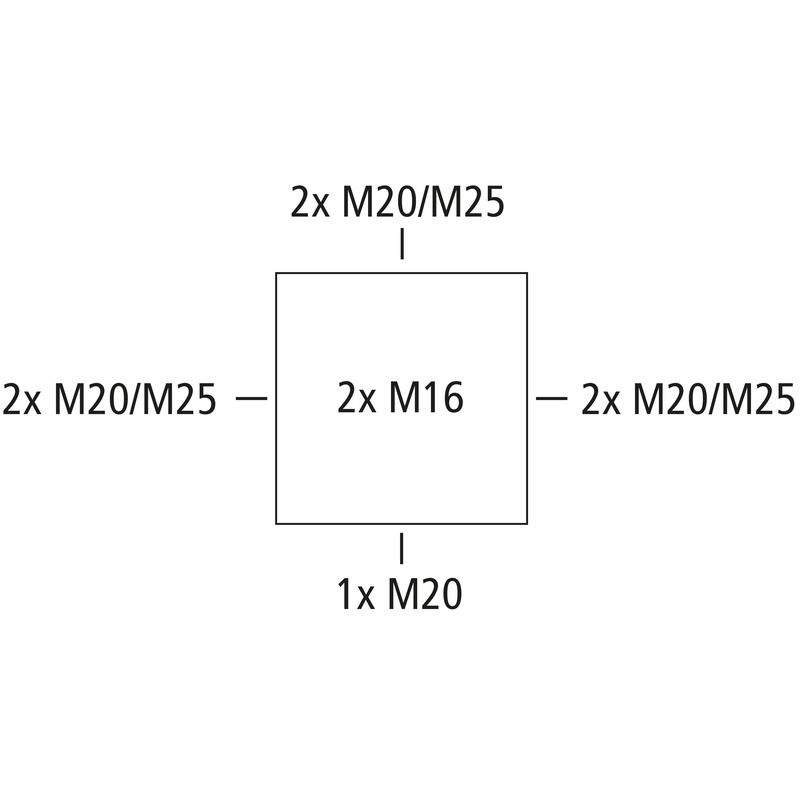

Junction box, protection class IP65, nominal cross-section 4 mm², Ui=450 V AC, certified by VDE (DIN EN 60670-1/-22 (VDE 0606-1/-22)), DLG (Ammonia resistance), knockouts, M20/M25, (2 rear, 7 side), internal fixing points, with screwless terminals for installations in the industrial arena and protected outside areas
grey, without terminals, with high-set terminal strip for screwless terminals Wago 221-4XX
Accessories supplied:
4 Double-membrane seal IP66 M25 sealing area 9 - 16 mm
| Rated insulation voltage AC | 450 V |
|---|---|
| Max. conductor cross section | 4 mm² |
| Protection class | II |
| Type of protection | IP65 |
| UL Type Rating | not specified |
| Base unit colour | grey |
|---|---|
| Cover colour | grey |
| Width | 110 mm |
|---|---|
| Length | 110 mm |
| Height | 67 mm |
| Weight | 0.2416 kg |
| UV-resistant | yes |
|---|---|
| Halogen free | yes |
| Flammability class according with UL94 | V2 |
| Glow-wire flammability according to EN 60695-2-11 | 960 °C |
| Type of fastening | Wall/ceiling mounting |
|---|---|
| Impact strength | IK08 |
| Sealable | yes |
| Cover screw torque | 1.7 Nm |
| Fastening | internal fixing points |
| max. relative humidity 25°C | 95 % |
|---|---|
| max. relative humidity 40°C | 50 % |
| Min. ambient temperature | -35 °C |
| Max. ambient temperature | 80 °C |
| 24h ambient temperature | 60 °C |
| Installation location | protected outdoor areas |
| EAN | 4013902567898 |
|---|---|
| Packing Unit Code | C62 |
| ETIM Class | EC002600 |
| Custom tariff number | 85369095 |
| Base unit material | Polycarbonate |
|---|---|
| Cover material | Polycarbonate, glass-fibre reinforced |
| Sealing material | Polyurethane |
| Cover screw material | Stainless steel V2A |
| Test mark | VDE (DIN EN 60670-1/-22 (VDE 0606-1/-22)) |
|---|---|
| Test mark | DLG (Ammonia resistance) |
