cabinet
Productnumber: 72073401 | Dimensions: 300 x 400 x 226 mm

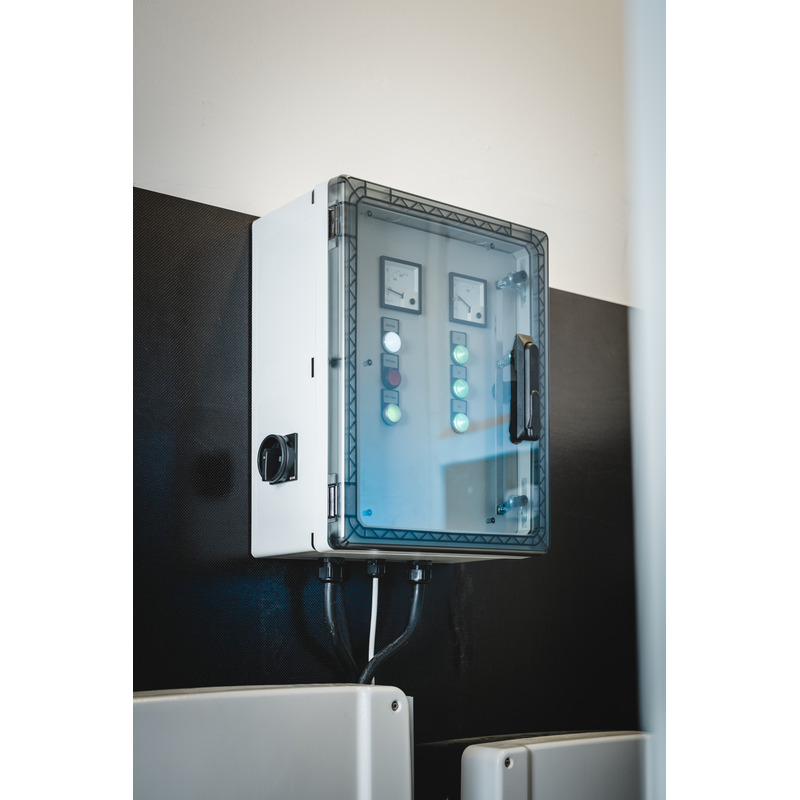

Cabinet, suitable for installation in harsh environments and in exposed outside areas, box and frame: glass-fibre reinforced polycarbonate, grey, similar to RAL 7035, door: Polycarbonate.
Swivel lever for inserting profile-cylinders in accordance to DIN 18252
with grey door

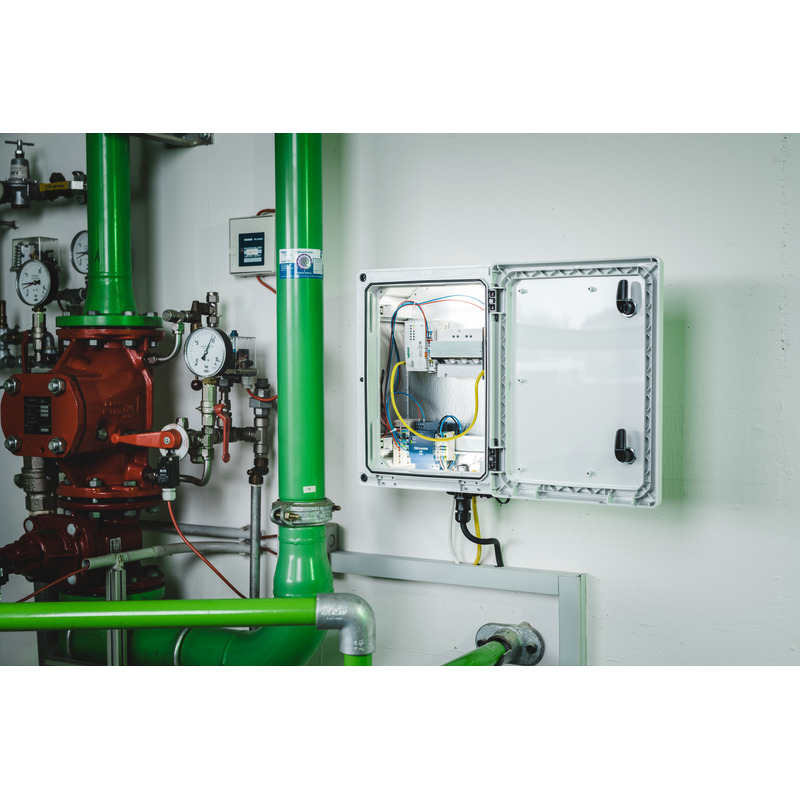

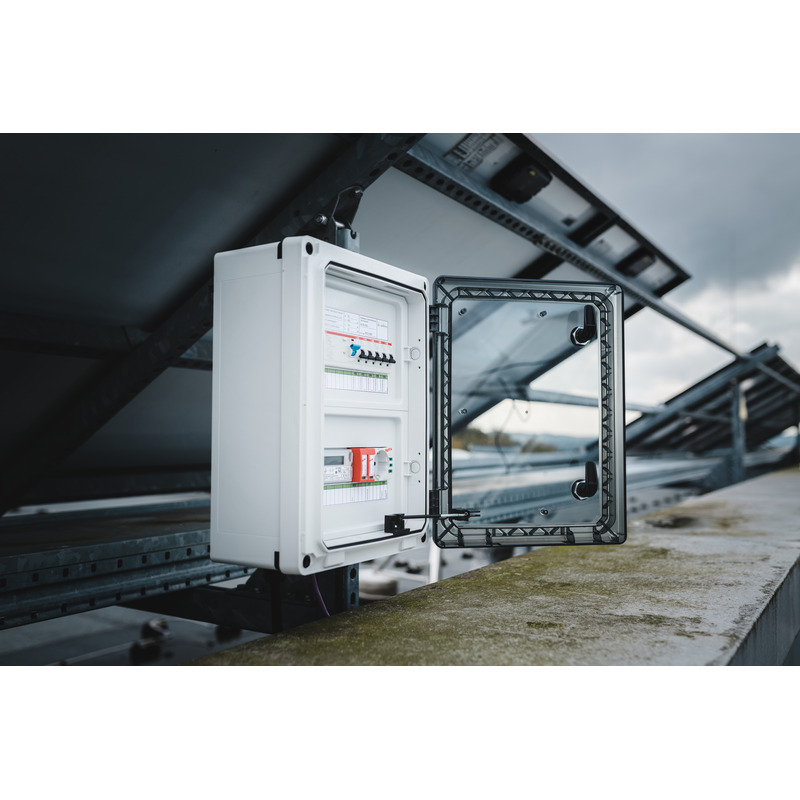

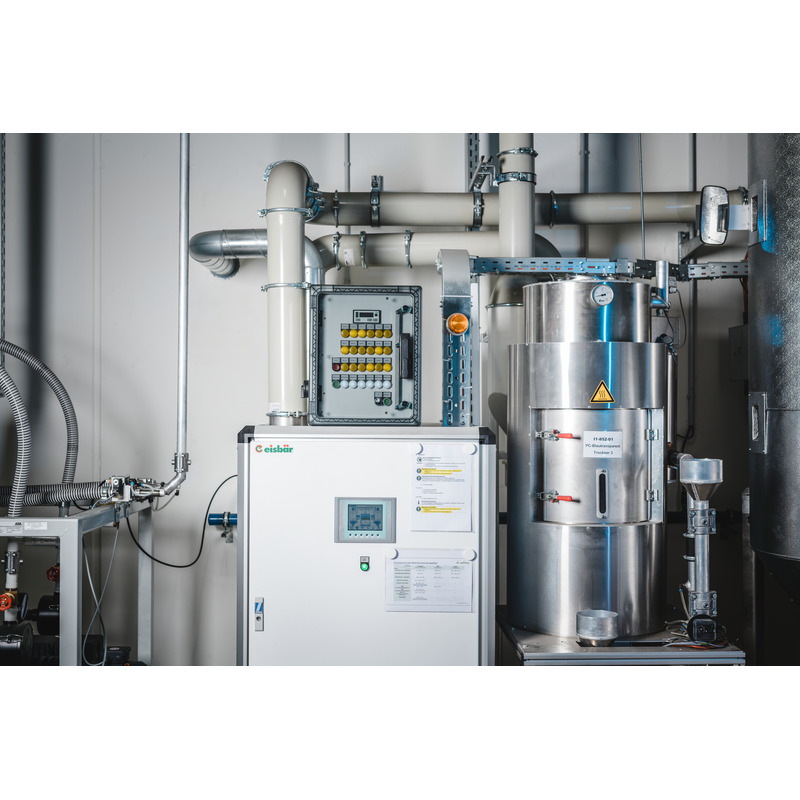

| Rated insulation voltage AC | 1000 V |
|---|---|
| Rated insulation voltage DC | 1500 V |
| Protection class | II |
| Type of protection | IP66/IP67/IP69 |
| vented | no |
| UL Type Rating | 4X, 12/12K |
| Base unit colour | grey |
|---|---|
| Cover colour | grey |
| Width | 300 mm |
|---|---|
| Length | 400 mm |
| Height | 226 mm |
| Inner length | 371 mm |
| Inner width | 271 mm |
| Inner height | 204 mm |
| Weight | 5.064 kg |
| UV-resistant | yes |
|---|---|
| Halogen free | yes |
| Burning behaviour in accordance with UL 50/UL 746C | comparable with 5VA |
| Flammability class according with UL94 | V2 |
| Glow-wire flammability according to EN 60695-2-11 | 960 °C |
| Type of fastening | Wall mounting |
|---|---|
| Impact strength | IK09 |
| Sealable | yes |
| Flange variant | no |
| Stackable | no |
| Stop system | 2-point installation, swivel lever |
| with fastening points in the cover | yes |
| Type of top part | Door |
| Locking insert | none |
| max. relative humidity 25°C | 95 % |
|---|---|
| max. relative humidity 40°C | 50 % |
| Min. ambient temperature | -35 °C |
| Max. ambient temperature | 80 °C |
| 24h ambient temperature | 60 °C |
| Installation location | unprotected outdoor areas |
| EAN | 4013902646098 |
|---|---|
| Packing Unit Code | CT |
| ETIM Class | EC000261 |
| Custom tariff number | 85389099 |
| Base unit material | Polycarbonate, glass-fibre reinforced |
|---|---|
| Cover material | Polycarbonate |
| Entry material | not relevant |
| Sealing material | Silicone |
| Cover screw material | Polyamide, glass-fibre reinforced |
| Test mark | UL-EU (EN 62208) |
|---|---|
| Test mark | UL-EU (EN 61439-1/-2) |
| Test mark | UL-EU (EN 61439-1/-3) |
| Test mark | UL-EU (EN 61439-1 & EN IEC 61439-7) |
| Test mark | DLG (Ammonia resistance) |
| Test mark | DNV (Class: Ships and Offshore Installations) |
| Assembly instruction DE/EN/FR | pdf (828 KB) |
|---|---|
| Assembly instruction | pdf (2 MB) |
| Dimensional drawing | jpg (1 MB) |
|---|---|
| Dimensional drawing | dxf (16 MB) |
| Dimensional drawing | pdf (3 MB) |
| Dimensional drawing | dwg (3 MB) |
lock fittings for swivel lever GEOS-S SGA-DB/3
Contact protection module GEOS-S BSM 3040-9/2
mounting plate interior frame GEOS-S EPR 3040/4030
