cabinet

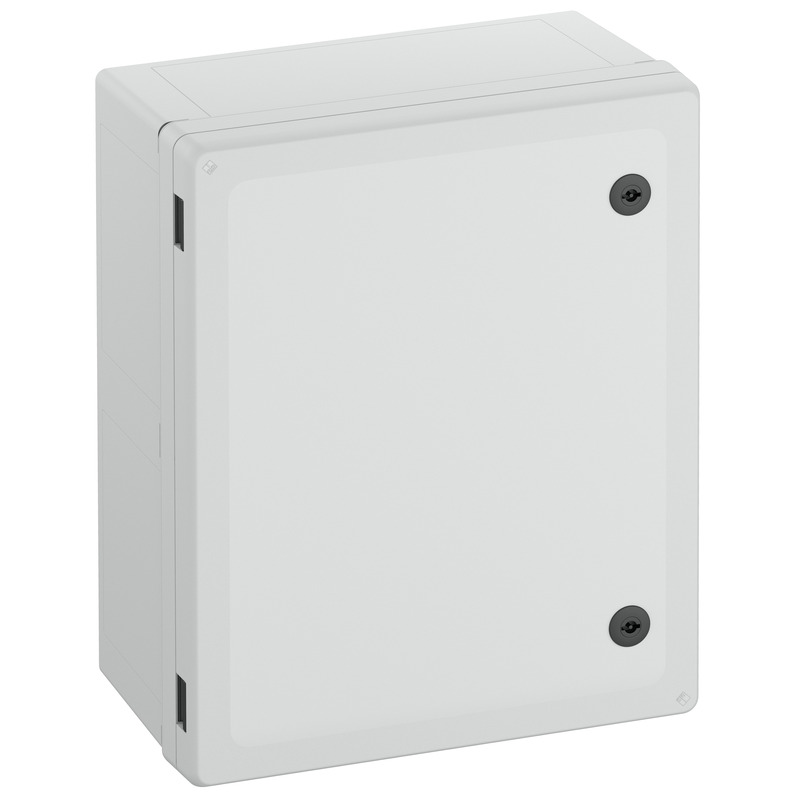

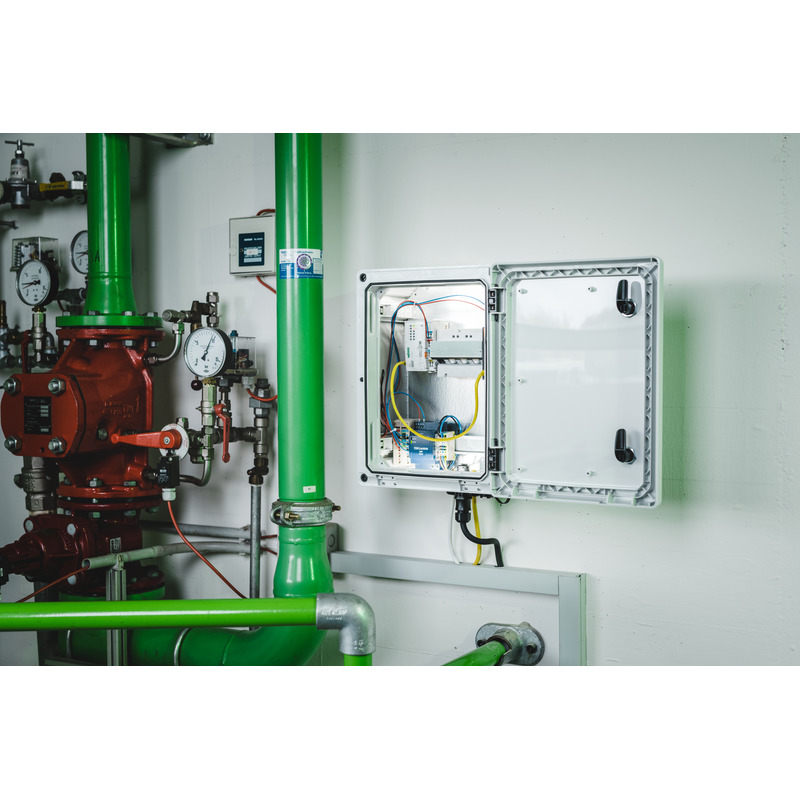

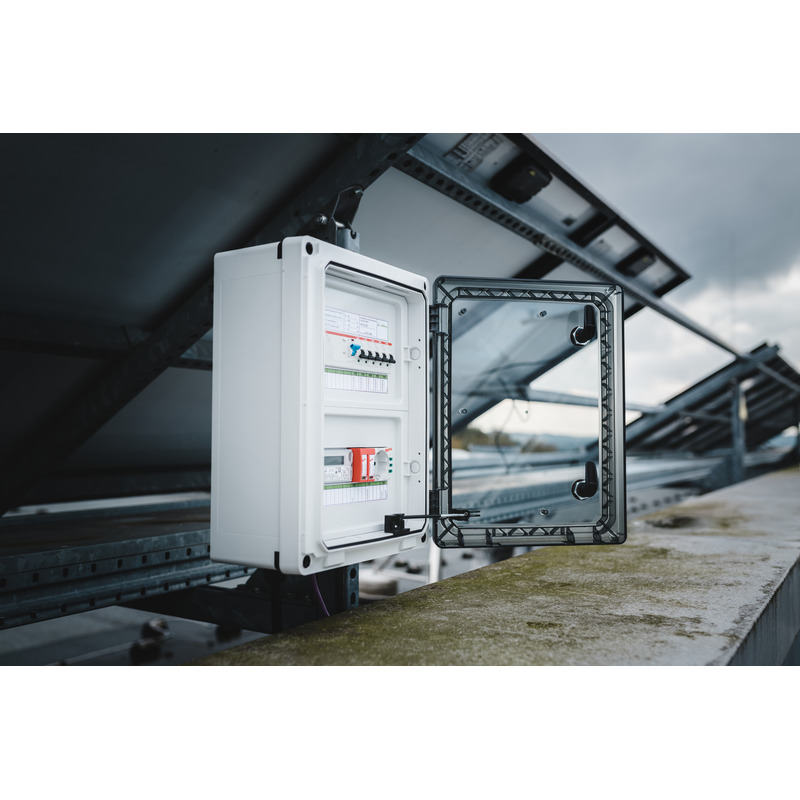

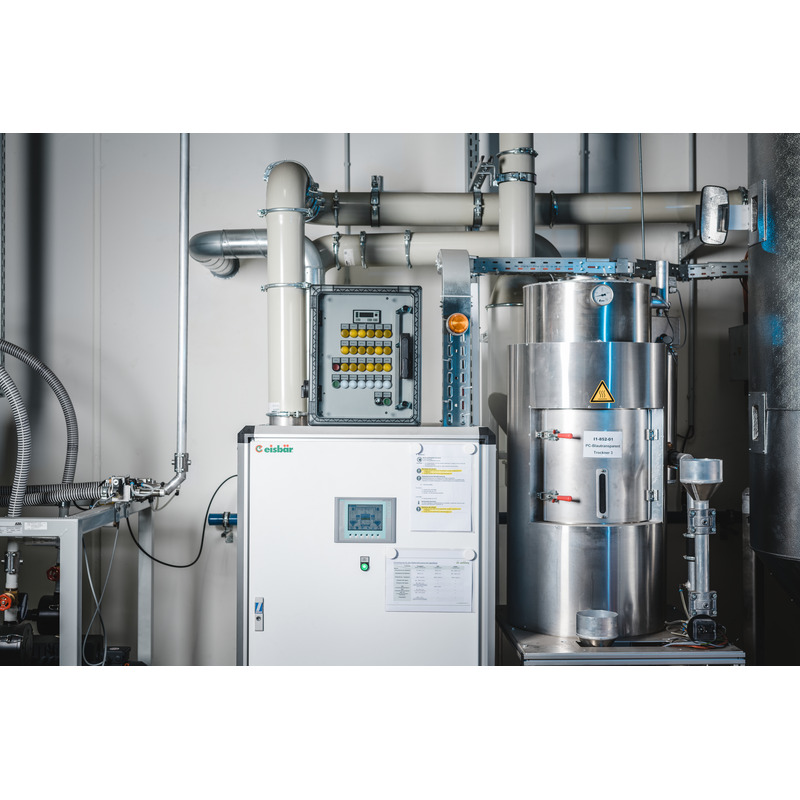

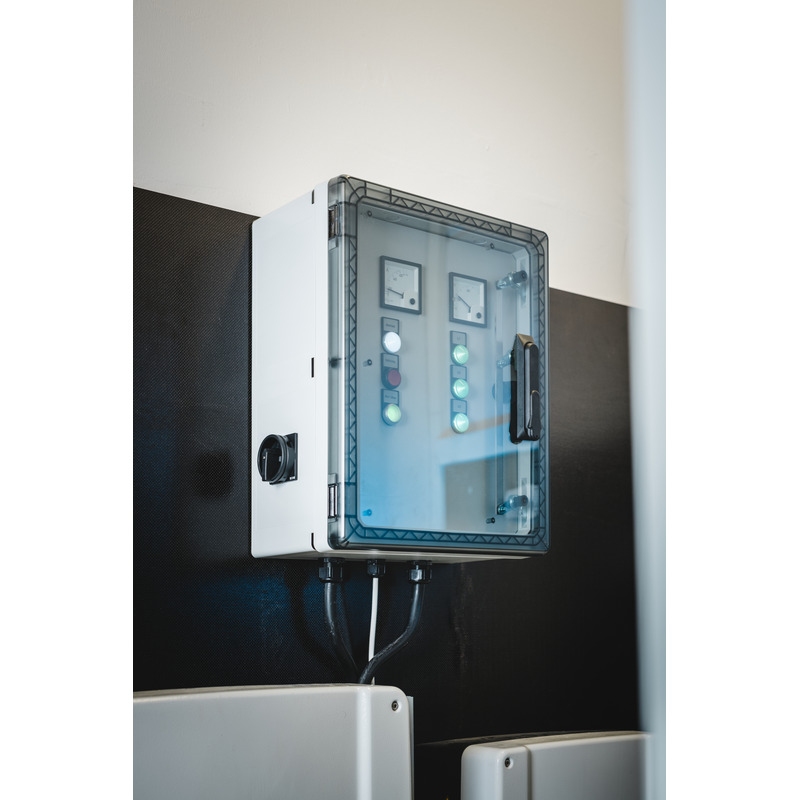

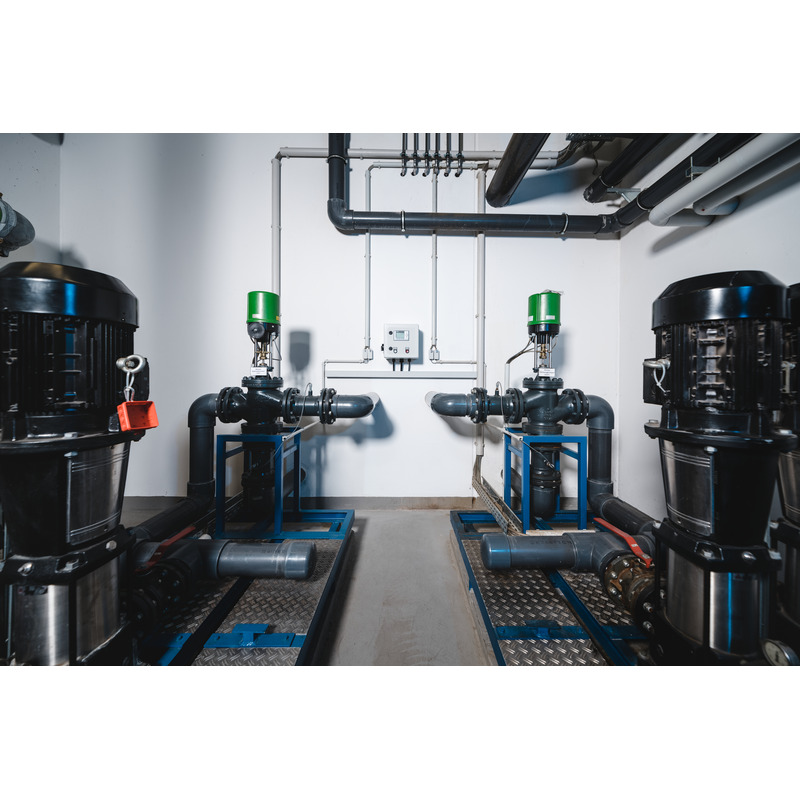

GEOS-S 4050-22-o

Productnumber: 71074501 | Dimensions: 400 x 500 x 226 mm

Cabinet, suitable for installation in harsh environments and in exposed outside areas, box and frame: glass-fibre reinforced polycarbonate, grey, similar to RAL 7035, door: Polycarbonate.
Twist lock with 3mm double-bit insert (interchangeable) in accordance to DIN 43668

with grey door

Find wholesaler

electrical characteristics

Rated insulation voltage AC	1000 V
Rated insulation voltage DC	1500 V
Protection class	II
Type of protection	IP66/IP67/IP69
vented	no
UL Type Rating	4X, 12/12K

Colours

Base unit colour	grey
Cover colour	grey

Dimensions

Width	400 mm
Length	500 mm
Height	226 mm
Inner length	471 mm
Inner width	371 mm
Inner height	204 mm
Weight	4.93 kg

Material characteristics

UV-resistant	yes
Halogen free	yes
Burning behaviour in accordance with UL 50/UL 746C	comparable with 5VA
Flammability class according with UL94	V2
Glow-wire flammability according to EN 60695-2-11	960 °C

mechanical properties

Type of fastening	Wall mounting
Impact strength	IK09
Sealable	no
Flange variant	no
Stackable	no
Stop system	2-point installation, twist lock
with fastening points in the cover	yes
Type of top part	Door
Locking insert	Double-bit, 3 mm

Ambient conditions

max. relative humidity 25°C	95 %
max. relative humidity 40°C	50 %
Min. ambient temperature	-35 °C
Max. ambient temperature	80 °C
24h ambient temperature	60 °C
Installation location	unprotected outdoor areas

Sales Information

EAN	4013902640652
Packing Unit Code	CT
ETIM Class	EC000261
Custom tariff number	85389099

Material

Base unit material	Polycarbonate, glass-fibre reinforced
Cover material	Polycarbonate
Entry material	not relevant
Sealing material	Silicone
Cover screw material	Polyamide, glass-fibre reinforced

Certificates

Test mark	UL (UL 50 & CSA 22.2 No. 94.1-15, UL 50E & CSA C22.2 No. 94.2-15)
Test mark	UL-EU (EN 62208)
Test mark	UL-EU (EN 61439-1/-2)
Test mark	UL-EU (EN 61439-1/-3)
Test mark	UL-EU (EN 61439-1 & EN IEC 61439-7)
Test mark	DLG (Ammonia resistance)
Test mark	DNV (Class: Ships and Offshore Installations)

Download Data Sheet

Download Data Sheet

Handbook

Product manual DE	pdf (9 MB)
Product manual EN	pdf (13 MB)

Installation instructions

Assembly instruction	pdf (2 MB)
Assembly instruction DE/EN/FR	pdf (1.007 KB)

Dimensioned drawing

Dimensional drawing	pdf (1 MB)
Dimensional drawing	dwg (3 MB)
Dimensional drawing	dxf (18 MB)
Dimensional drawing	jpg (1.020 KB)

Certificate

UL-EU Certificate (EN 61439-7) EN	pdf (231 KB)
DNV Certificate EN	pdf (205 KB)
DLG Approval DE	pdf (703 KB)
DLG Approval EN	pdf (936 KB)
UL Certificate (UL50 / UL50E) EN	pdf (282 KB)
CE Declaration DE	pdf (129 KB)
UL-EU Certificate (EN 61439-2) EN	pdf (230 KB)
UKCA Declaration EN	pdf (51 KB)
UL-EU Certificate (EN 62208) EN	pdf (236 KB)
UL-EU Certificate (EN 61439-3) EN	pdf (234 KB)
Manufacturer Declaration DE/EN	pdf (680 KB)
CE Declaration PL	pdf (132 KB)

Accessories

Mounting plate GEOS MPI-4050

Dimensions : 350 x 450 x 5 mm
Productnumber: 72000501

for GEOS-L/S 4050-22, GEOS-S 5040-22

Mounting plate made of insulating material, incl. fixing screws, for bottom mounting, optional...
