Installation board door

GEOS-S EPT 3040

Productnumber: 72202401 | Dimensions: 150 x 325 x 4 mm

Installation board made of insulating material for the door of GEOS cabinets, incl. fixing screws, for individual use, e.g. for installation of indicating elements and displays, material thickness: 4 mm

for GEOS-S 3040-18 to 22

Colours

Accessory colour light grey

Dimensions

Width 150 mm
Length 325 mm
Height 4 mm
Weight 0.304 kg

mechanical properties

Type of accessory other

Sales Information

EAN 4013902644643
Packing Unit Code C62
ETIM Class EC002498
Custom tariff number 39219041

Material

Accessory material insulating material

Download Data Sheet

Download Data Sheet

Handbook

Product manual DE pdf (9 MB)
Product manual EN pdf (13 MB)

Dimensioned drawing

Dimensional drawing pdf (36 KB)
Dimensional drawing dwg (46 KB)
Dimensional drawing dxf (161 KB)
Dimensional drawing jpg (566 KB)

Certificate

CE Declaration DE pdf (129 KB)
UKCA Declaration EN pdf (51 KB)
CE Declaration PL pdf (132 KB)

CAD-Data

CAD-Data Download 3D-CAD-Data

Your request

Your information

Companydata

CAD-Format

Tender text

Similar products

Installation board door GEOS-S EPT 3030

  • Dimensions : 150 x 225 x 4 mm
  • Productnumber: 72202301

for GEOS-S 3030-18 to 22



Installation board made of insulating material for the door of GEOS cabinets, incl. fixing screws,...



Installation board door GEOS-S EPT 4030

  • Dimensions : 250 x 225 x 4 mm
  • Productnumber: 72202501

for GEOS-S 4030-18 to 22



Installation board made of insulating material for the door of GEOS cabinets, incl. fixing screws,...



Installation board door GEOS-S EPT 4050

  • Dimensions : 250 x 425 x 4 mm
  • Productnumber: 72202601

for GEOS-S 4050-22



Installation board made of insulating material for the door of GEOS cabinets, incl. fixing screws,...

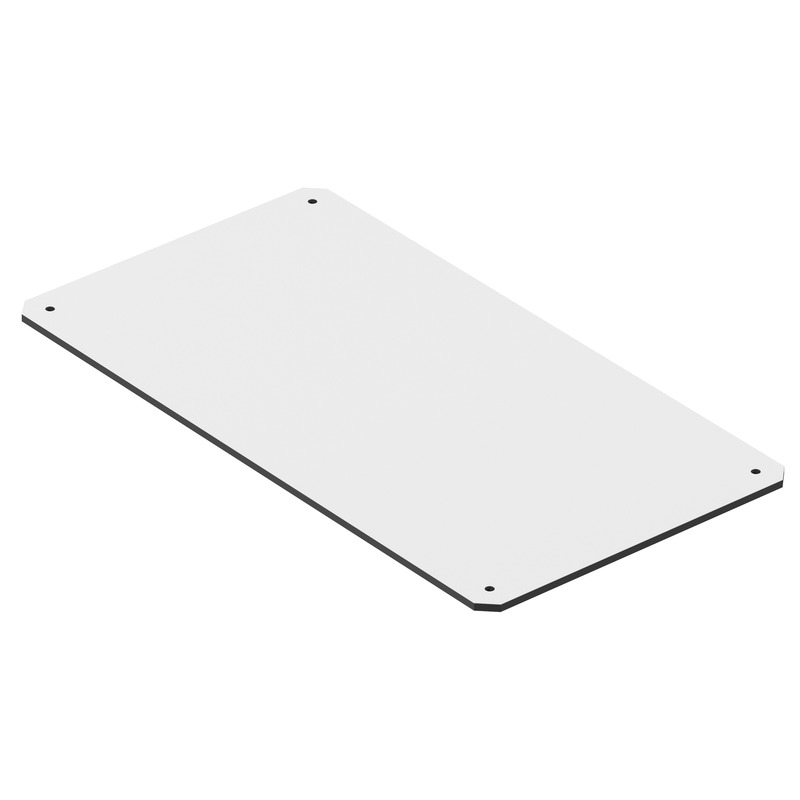

Installation board door GEOS-S EPT 5040
