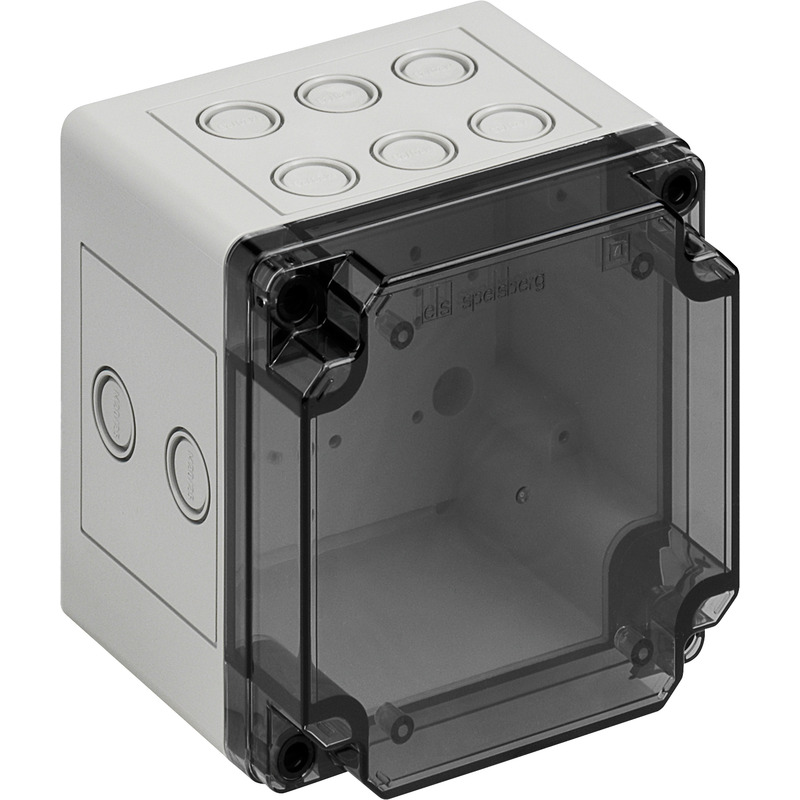

Empty enclosure
Productnumber: 59121001 | Dimensions: 150 x 150 x 137 mm
Empty enclosure, for individual expansion with standard rails or mounting plates
IP65, protective insulation, box + lid polycarbonate, box grey, simil. RAL 7035, cover, transparent
| Rated operating voltage AC | 400 V |
|---|---|
| Protection class | II |
| Type of protection | IP65 |
| UL Type Rating | not specified |
| Base unit colour | grey |
|---|
| Width | 150 mm |
|---|---|
| Length | 150 mm |
| Height | 137 mm |
| Inner length | 140 mm |
| Inner width | 140 mm |
| Inner height | 119 mm |
| Weight | 0.5876 kg |
| UV-resistant | yes |
|---|---|
| Halogen free | yes |
| Flammability class according with UL94 | V2 |
| Glow-wire flammability according to EN 60695-2-11 | 960 °C |
| Type of fastening | Surface mounted |
|---|---|
| Impact strength | IK07 |
| max. relative humidity 25°C | 95 % |
|---|---|
| max. relative humidity 40°C | 50 % |
| Min. ambient temperature | -25 °C |
| Max. ambient temperature | 80 °C |
| 24h ambient temperature | 60 °C |
| Installation location | protected outdoor areas |
| EAN | 4013902395774 |
|---|---|
| Packing Unit Code | CT |
| ETIM Class | EC000058 |
| Custom tariff number | 85389099 |
| Base unit material | Plastic |
|---|---|
| Cover material | Polycarbonate |
| CAD-Data | Download 3D-CAD-Data |
|---|
