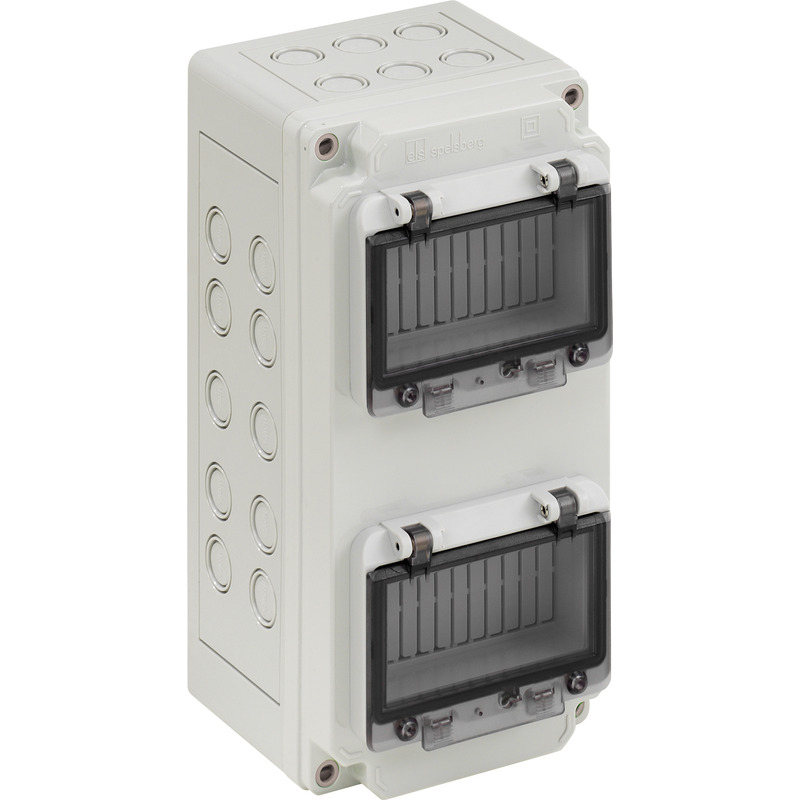

Module enclosure 2-row
2 x 6 distribution units, with hinged window,
1x PE/N terminal (2x (1 x 25 mm² + 7 x 4(6) mm²))
Distribution board
SVi A 2x6
Productnumber: 59106401 | Dimensions: 150 x 300 x 156 mm
- Find wholesaler
electrical characteristics
| Rated operating voltage AC | 400 V |
|---|---|
| Protection class | II |
| Type of protection | IP65 |
| Number of modules | 12 |
| UL Type Rating | not specified |
Dimensions
| Width | 150 mm |
|---|---|
| Length | 300 mm |
| Height | 156 mm |
| Weight | 1.4602 kg |
Material characteristics
| UV-resistant | yes |
|---|---|
| Halogen free | yes |
| Flammability class according with UL94 | V2 |
| Glow-wire flammability according to EN 60695-2-11 | 960 °C |
mechanical properties
| Type of fastening | Surface mounting |
|---|---|
| Impact strength | IK07 |
Ambient conditions
| Max. ambient temperature | 80 °C |
|---|---|
| 24h ambient temperature | 60 °C |
| Installation location | protected outdoor areas |
Sales Information
| EAN | 4013902826186 |
|---|---|
| Packing Unit Code | CT |
| ETIM Class | EC000248 |
| Custom tariff number | 85369095 |
Material
| Base unit material | Plastic |
|---|
CAD-Data
| CAD-Data | Download 3D-CAD-Data |
|---|
