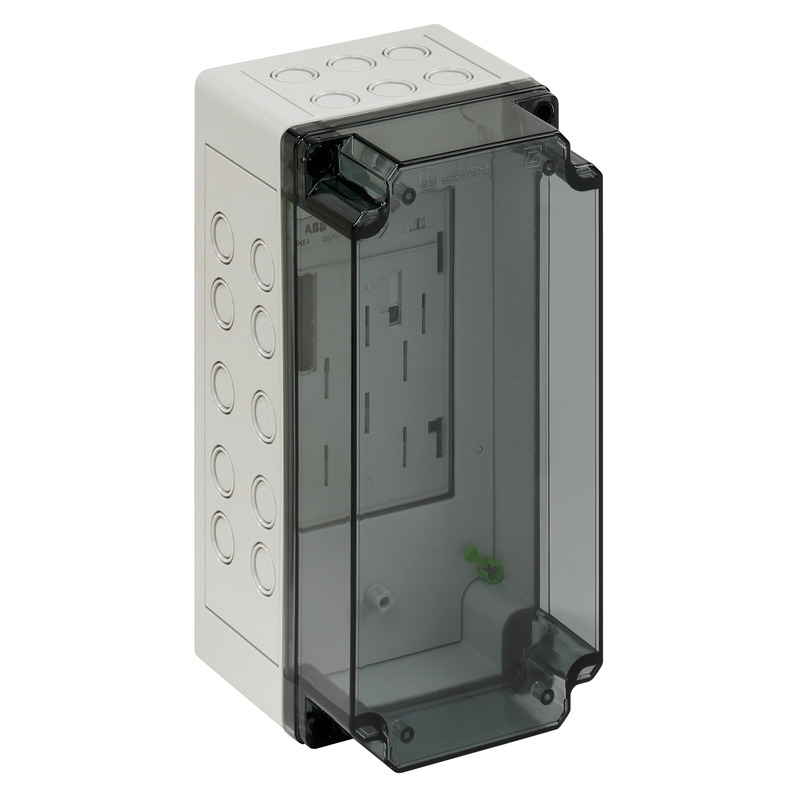

Meter enclosure
transparent cover, high, In=25 A, Imax=63 A,
with BKE-I adapter plate for the electric counter for households in
AC design with pre-assembled power cords
Meter housing
SVi Z-W
Productnumber: 59103201 | Dimensions: 150 x 300 x 162 mm
- Find wholesaler
electrical characteristics
| Rated operating voltage AC | 230 V |
|---|---|
| Protection class | II |
| Type of protection | IP65 |
| UL Type Rating | not specified |
Dimensions
| Width | 150 mm |
|---|---|
| Length | 300 mm |
| Height | 162 mm |
| Weight | 1.793 kg |
Material characteristics
| UV-resistant | yes |
|---|---|
| Halogen free | yes |
| Flammability class according with UL94 | V2 |
| Glow-wire flammability according to EN 60695-2-11 | 960 °C |
mechanical properties
| Type of fastening | Surface mounting |
|---|---|
| Impact strength | IK07 |
Ambient conditions
| Max. ambient temperature | 40 °C |
|---|---|
| 24h ambient temperature | 35 °C |
| Installation location | protected outdoor areas |
Sales Information
| EAN | 4013902303496 |
|---|---|
| Packing Unit Code | CT |
| ETIM Class | EC000248 |
| Custom tariff number | 85369095 |
Material
| Base unit material | Plastic |
|---|
CAD-Data
| CAD-Data | Download 3D-CAD-Data |
|---|
Tender text
Log in to mySpelsberg to download tender texts. mySpelsberg Login
