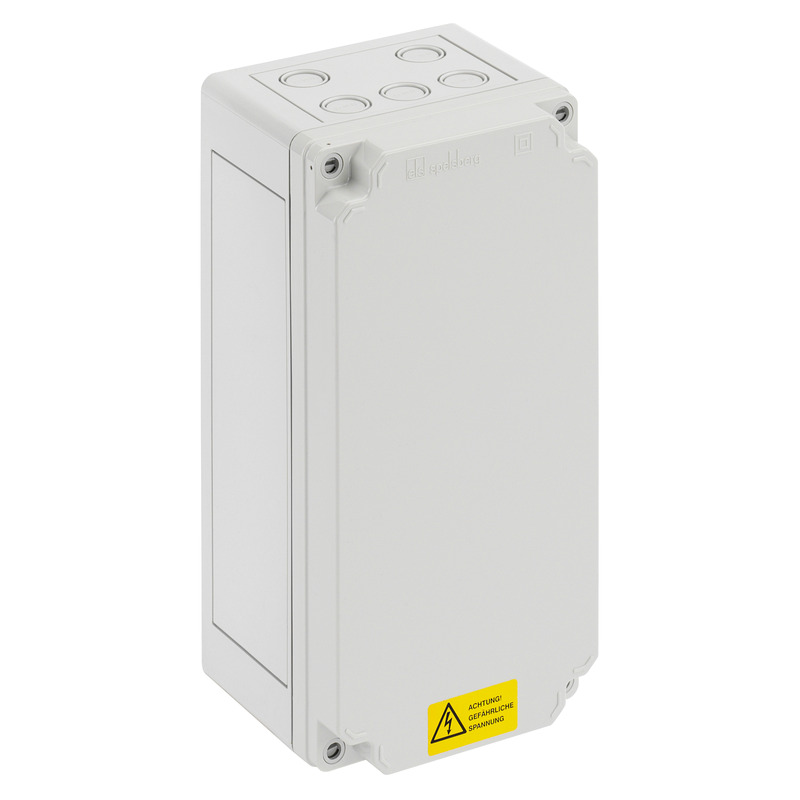

Small cable house junction box
Productnumber: 59101201 | Dimensions: 150 x 300 x 137 mm
Mains connection box, for 230 V alternating current mains (L-N-PE / L-PEN) according to VDE-AR-N 4100 (domestic junction box for single-phase connection), In=25 A, Imax=63 A, equipped with: 1 x NH00 fuse element, 1 x N-terminal, 1 x PE-terminal, 1 x PE-N jumper 10mm², 1 x parking bay for 2 wire
connection terminal supply cable: Prism terminal (2.5 - 50 mm² CU, 16 - 50 mm² AL)
Connection terminals Outlet: Clamp connection (2x 2.5-50mm² CU)

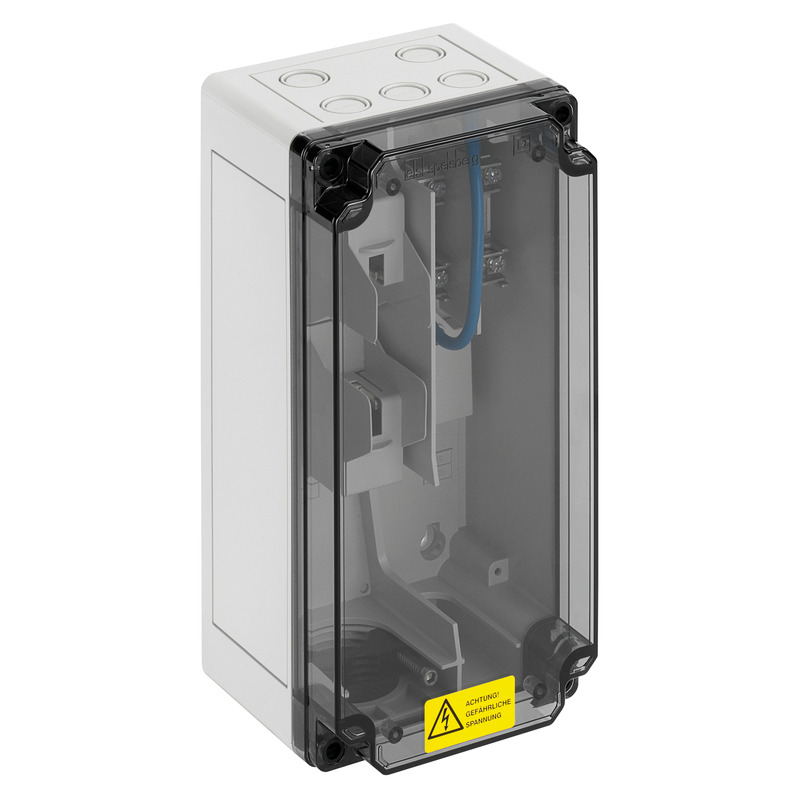

Cover, transparent
| Rated operating voltage AC | 400 V |
|---|---|
| Protection class | II |
| Type of protection | IP65 |
| UL Type Rating | not specified |
| Width | 150 mm |
|---|---|
| Length | 300 mm |
| Height | 137 mm |
| Weight | 1.6464 kg |
| UV-resistant | yes |
|---|---|
| Halogen free | yes |
| Flammability class according with UL94 | V2 |
| Glow-wire flammability according to EN 60695-2-11 | 960 °C |
| Type of fastening | Surface mounting |
|---|---|
| Impact strength | IK07 |
| Max. ambient temperature | 40 °C |
|---|---|
| 24h ambient temperature | 35 °C |
| Installation location | protected outdoor areas |
| EAN | 4013902444595 |
|---|---|
| Packing Unit Code | CT |
| ETIM Class | EC000248 |
| Custom tariff number | 85369095 |
| Base unit material | Plastic |
|---|
| Test mark | VDE (DIN EN 61439-1/-2 (VDE 0660-600-1/-2)) |
|---|---|
| Test mark | VDE (DIN 0660-505) |
| CAD-Data | Download 3D-CAD-Data |
|---|
