Abox Pro XT SL-4²

Productnumber: 40546001 | Dimensions: 127 x 127 x 75 mm

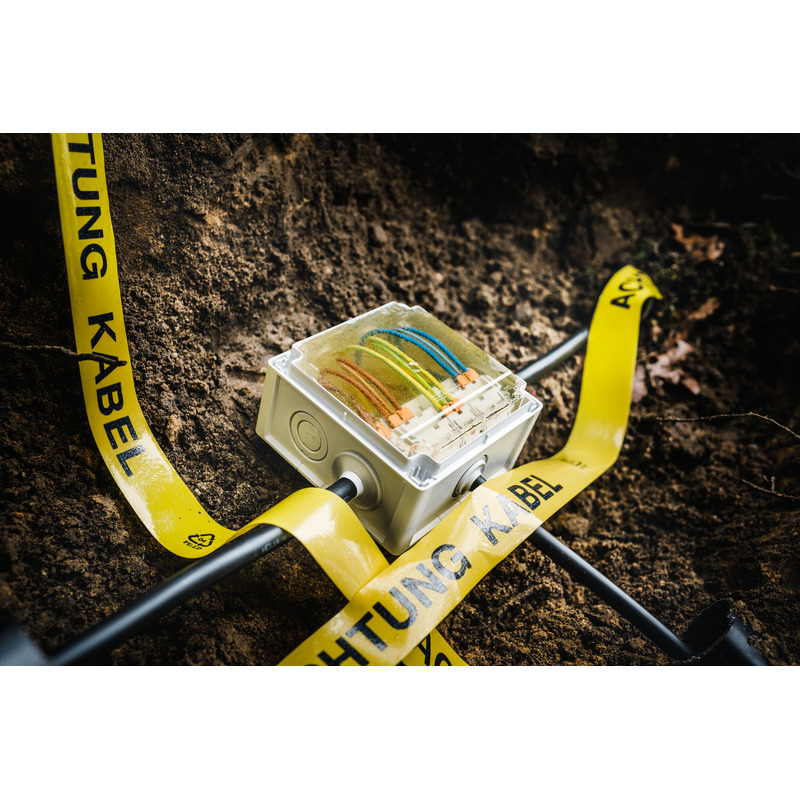

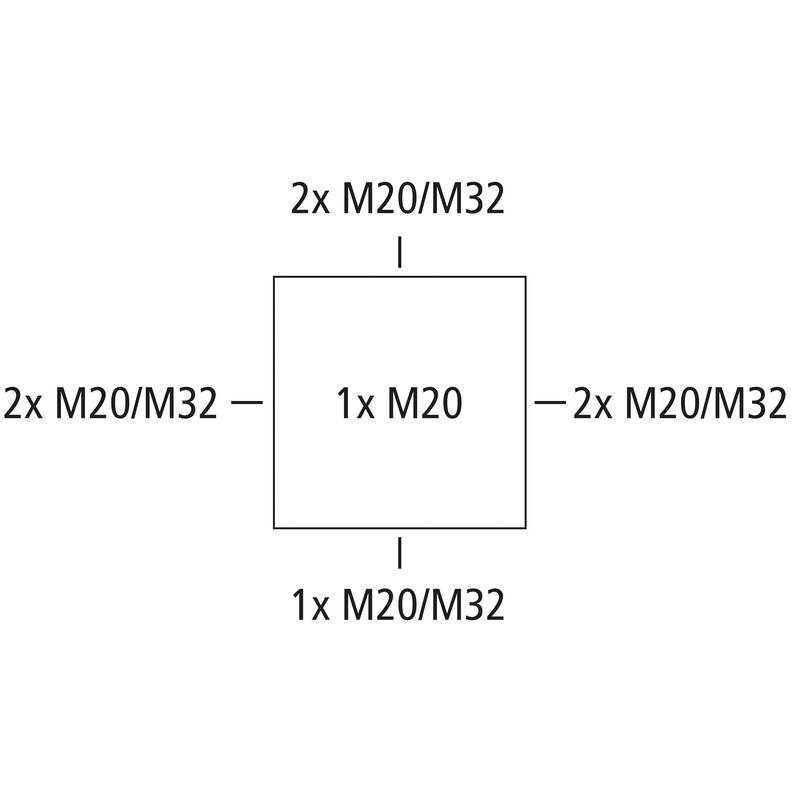

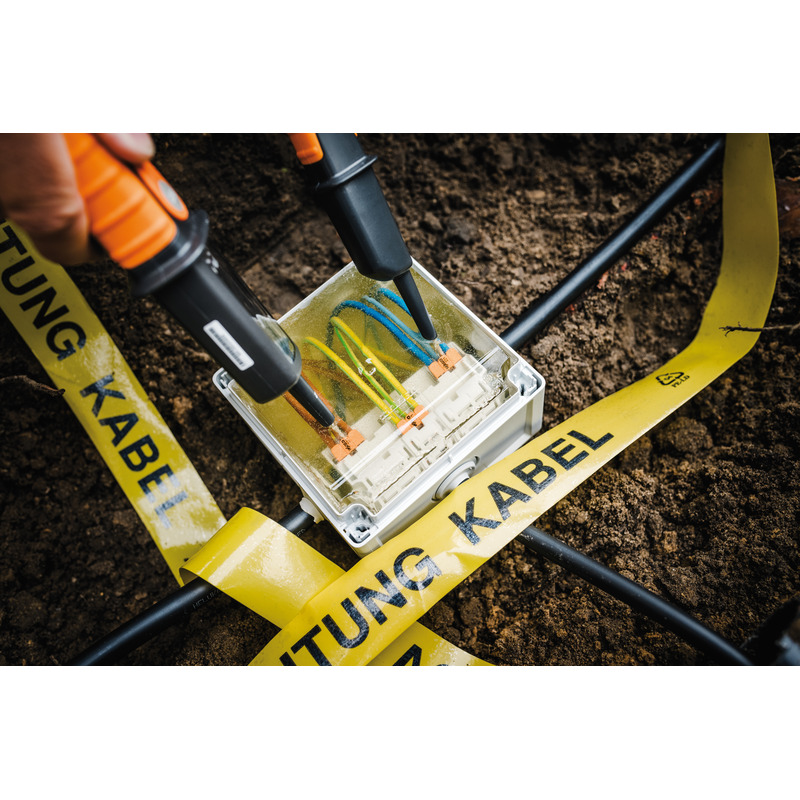

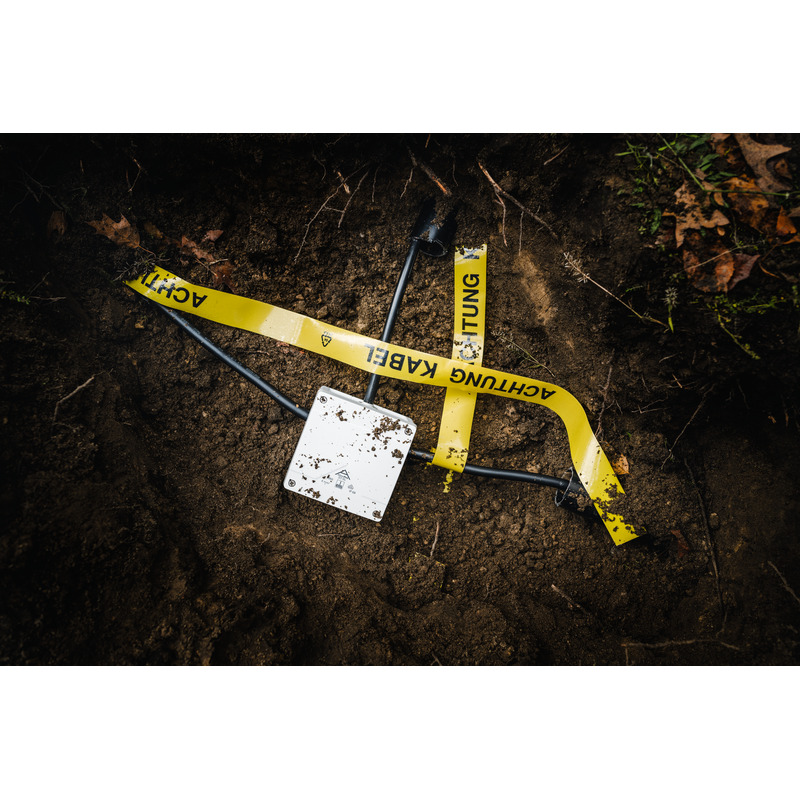

Junction box, protection class IP68, nominal cross-section 4 mm², U_i=450 V AC, certified by VDE (DIN EN 60670-1/-22 (VDE 0606-1/-22) & DIN VDE V 0606-22-100), knockouts, M20/M32, (1 rear, 7 side), internal fixing points, with screwless terminals for encapsulation, for assembly in flooded areas and in the ground without traffic loads, for installation in industrial environments and unprotected outdoor areas

grey, I_n=32 A, with 5 raised, screwless 3-wire terminal blocks, Wago 221-413 - 4 mm², clampable cross-sections per pole: 3 x 0.2 to 4 mm² rigid Cu and 3 x 0.14 to 4 mm² flexible Cu

Accessories supplied:

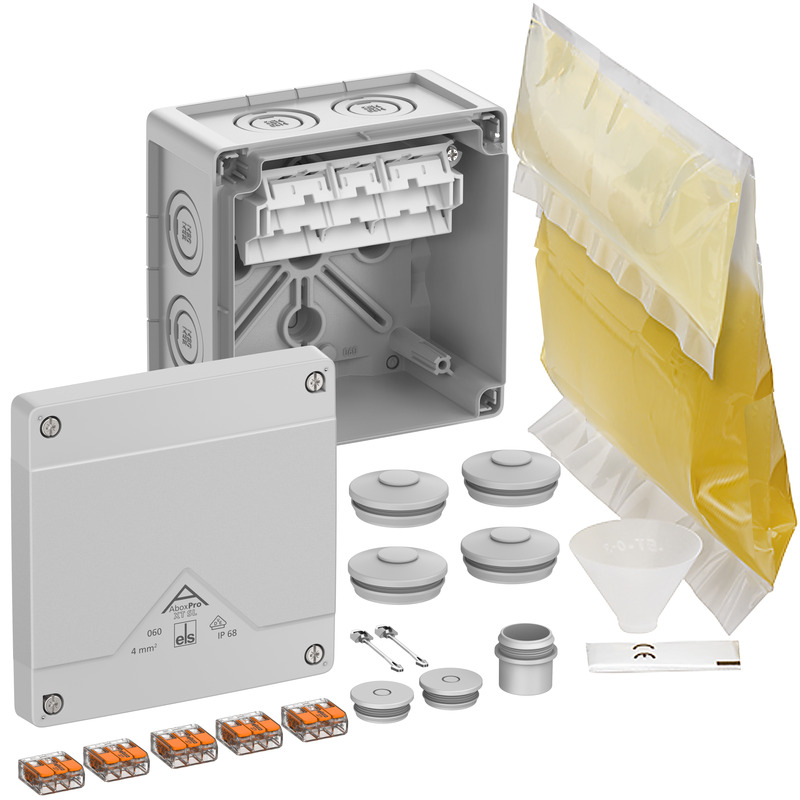

4 double membrane seals IP66 M32 sealing range 13 - 21 mm, 2 sealing plugs M20, 1 attachment bush M20, cover retainer, 1 cast resin bag GHB Pro 3 with filling funnel and disposable gloves

Find wholesaler

electrical characteristics

Rated insulation voltage AC	450 V
Rated insulation voltage DC	450 V
Min. conductor cross section	0,2 mm²
Max. conductor cross section	4 mm²
Protection class	II
Type of protection	IP68
Rated current	32 A
Terminal type	screwless
Number of poles	5

Colours

Base unit colour	grey
Cover colour	grey

Dimensions

Width	127 mm
Length	127 mm
Height	75 mm
Inner length	113 mm
Inner width	113 mm
Inner height	55 mm
Weight	1.532 kg

Material characteristics

UV-resistant	yes
Halogen free	yes
Flammability class according with UL94	V0
Glow-wire flammability according to EN 60695-2-11	960 °C

mechanical properties

Impact strength	IK09
Sealable	yes
Cover screw torque	1.5 Nm
Fastening	internal fixing points

Ambient conditions

max. relative humidity 25°C	95 %
max. relative humidity 40°C	50 %
Min. ambient temperature	-35 °C
Max. ambient temperature	80 °C
24h ambient temperature	60 °C

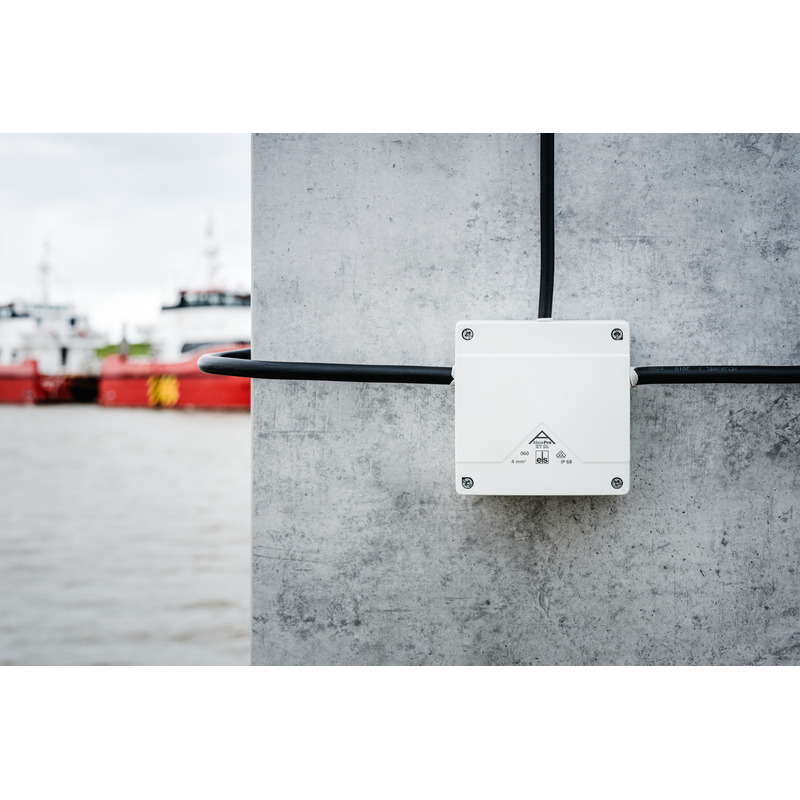

Installation location	unprotected outdoor areas

Sales Information

EAN	4013902664436
Packing Unit Code	CT
ETIM Class	EC002600
Custom tariff number	85369095

Material

Base unit material	Polycarbonate
Cover material	Polycarbonate
Sealing material	Thermoplastic elastomer
Cover screw material	Stainless steel V2A

Certificates

Test mark	VDE (DIN EN 60670-1/-22 (VDE 0606-1/-22) & DIN VDE V 0606-22-100)

Download Data Sheet

Download Data Sheet

Installation instructions

Assembly instruction GHB DE/EN/FR/ES	pdf (3 MB)
Assembly instruction FR/ES	pdf (5 MB)
Assembly instruction DE/EN	pdf (5 MB)

Dimensioned drawing

Dimensional drawing	dwg (5 MB)
Dimensional drawing	dxf (26 MB)
Dimensional drawing	pdf (5 MB)

Safety data sheet.

Safety data sheet. EN	pdf (774 KB)
Safety data sheet. DE	pdf (470 KB)

Certificate

UKCA Declaration EN	pdf (166 KB)
CE Declaration DE/EN/PL	pdf (142 KB)
CE Declaration DE/EN/FR	pdf (139 KB)
VDE Certificate (DIN EN IEC 60670-1 / -22) DE/EN	pdf (295 KB)
