2K-12 AB SB-L

2K-12 AB SB-L

Junction box

2K-12 AB SB-L

Productnumber: 34571201 | Dimensions: 85 x 85 x 37 mm

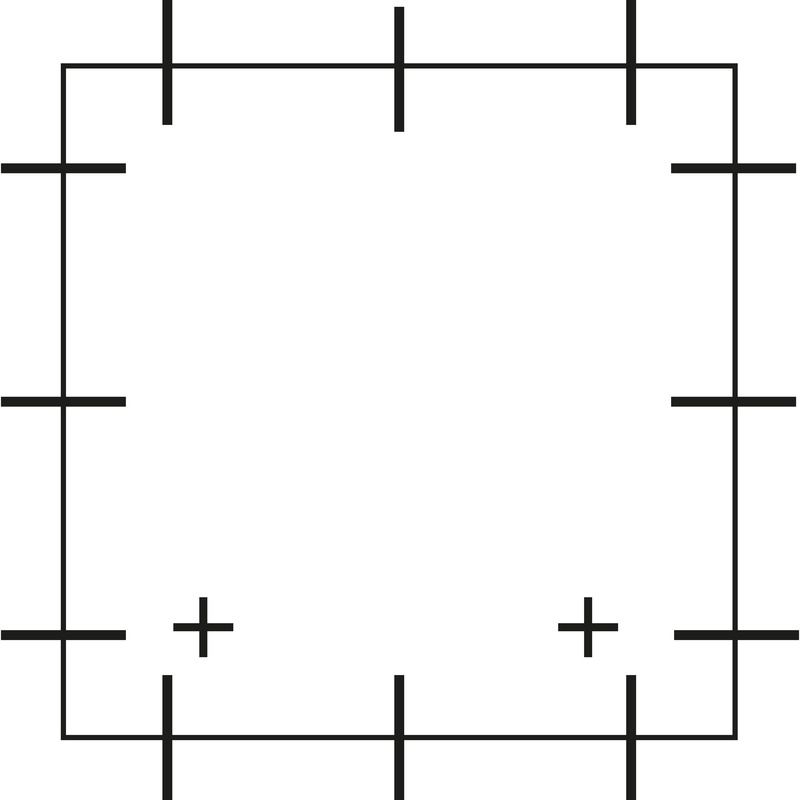

Junction box, protection class IP55, nominal cross-section 2.5 mm², U_i=400 V AC, certified by VDE (DIN EN 60670-1/-22 (VDE 0606-1/-22)), self-sealing, soft insertion membranes, sealing range 2 - 14 mm, (2 rear, 12 side), external fixing lugs, for standard indoor installations

red, without terminals, for identifying emergency lighting circuits

Find wholesaler

electrical characteristics

Rated insulation voltage AC	400 V
Max. conductor cross section	2,5 mm²
Protection class	II
Type of protection	IP55
UL Type Rating	not specified

Colours

Base unit colour	red
Cover colour	red

Dimensions

Width	85 mm
Length	85 mm
Height	37 mm
Weight	0.046 kg

Material characteristics

UV-resistant	no
Halogen free	yes
Flammability class according with UL94	HB
Glow-wire flammability according to EN 60695-2-11	650 °C

Max. number of terminals per cross section acc. to DIN VDE 0606-1

max. amount of terminals at 1,5²	6
max. amount of terminals at 2,5²	5

<p>Max. number of wires per cross section acc. to DIN VDE 0606-1</p>

max. amount of wires at 1,5²	20
max. amount of wires at 2,5²	15

mechanical properties

for sealing range min	2 mm
for sealing range max	14 mm
Type of fastening	Wall/ceiling mounting
Impact strength	IK07
Sealable	no
Fastening	external fixing lugs

Ambient conditions

max. relative humidity 25°C	95 %
max. relative humidity 40°C	50 %
Min. ambient temperature	-25 °C
Max. ambient temperature	40 °C
24h ambient temperature	35 °C
Installation location	Indoors

Sales Information

EAN	4013902628803
Packing Unit Code	C62
ETIM Class	EC002600
Custom tariff number	85389099

Material

Base unit material	Polypropylene
Cover material	Polypropylene
Entry material	Thermoplastic elastomer
Sealing material	Thermoplastic elastomer

Certificates

Test mark	VDE (DIN EN 60670-1/-22 (VDE 0606-1/-22))

Download Data Sheet

Download Data Sheet

Certificate

UKCA Declaration EN	pdf (168 KB)
CE Declaration DE/EN/FR	pdf (139 KB)
VDE Certificate (EN 60670) DE/EN	pdf (301 KB)
CE Declaration DE/EN/PL	pdf (142 KB)
