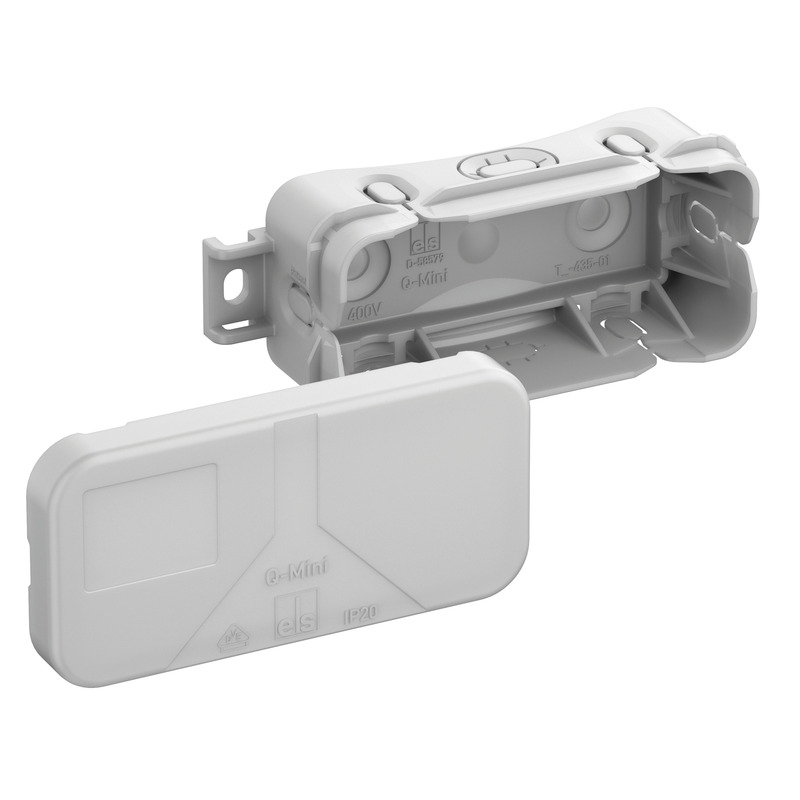

Junction box
Productnumber: 33490801 | Dimensions: 89 x 43 x 34 mm
Junction box, protection class IP20, nominal cross-section 2.5 mm², Ui=400 V AC, certified by VDE (DIN EN 60670-1/-22 (VDE 0606-1/-22)), inserts with cable retention capacity, (8 rear, 2 side), internal fixing points, for standard indoor installations, with cable retention, cable entry from above possible
grey, without terminals
| Rated insulation voltage AC | 400 V |
|---|---|
| Max. conductor cross section | 2,5 mm² |
| Protection class | II |
| Type of protection | IP20 |
| Terminal type | none |
| UL Type Rating | not specified |
| Base unit colour | grey |
|---|---|
| Cover colour | grey |
| Width | 89 mm |
|---|---|
| Length | 43 mm |
| Height | 34 mm |
| Inner length | 33 mm |
| Inner width | 79 mm |
| Inner height | 29 mm |
| Weight | 0.0274 kg |
| UV-resistant | no |
|---|---|
| Halogen free | yes |
| Flammability class according with UL94 | HB |
| Glow-wire flammability according to EN 60695-2-11 | 650 °C |
| max. amount of terminals at 1,5² | 5 |
|---|---|
| max. amount of terminals at 2,5² | 3 |
| max. amount of wires at 1,5² | 15 |
|---|---|
| max. amount of wires at 2,5² | 9 |
| Impact strength | IK07 |
|---|---|
| Sealable | no |
| Type of fastening | Wall/ceiling mounting |
| Fastening | internal fixing points |
| max. relative humidity 25°C | 95 % |
|---|---|
| max. relative humidity 40°C | 50 % |
| Min. ambient temperature | -25 °C |
| Max. ambient temperature | 40 °C |
| 24h ambient temperature | 35 °C |
| Installation location | Indoors |
| EAN | 4013902642311 |
|---|---|
| Packing Unit Code | C62 |
| ETIM Class | EC002600 |
| Custom tariff number | 85389099 |
| Base unit material | Polypropylene |
|---|---|
| Cover material | Polypropylene |
| Test mark | VDE (DIN EN 60670-1/-22 (VDE 0606-1/-22)) |
|---|
| CAD-Data | Download 3D-CAD-Data |
|---|
