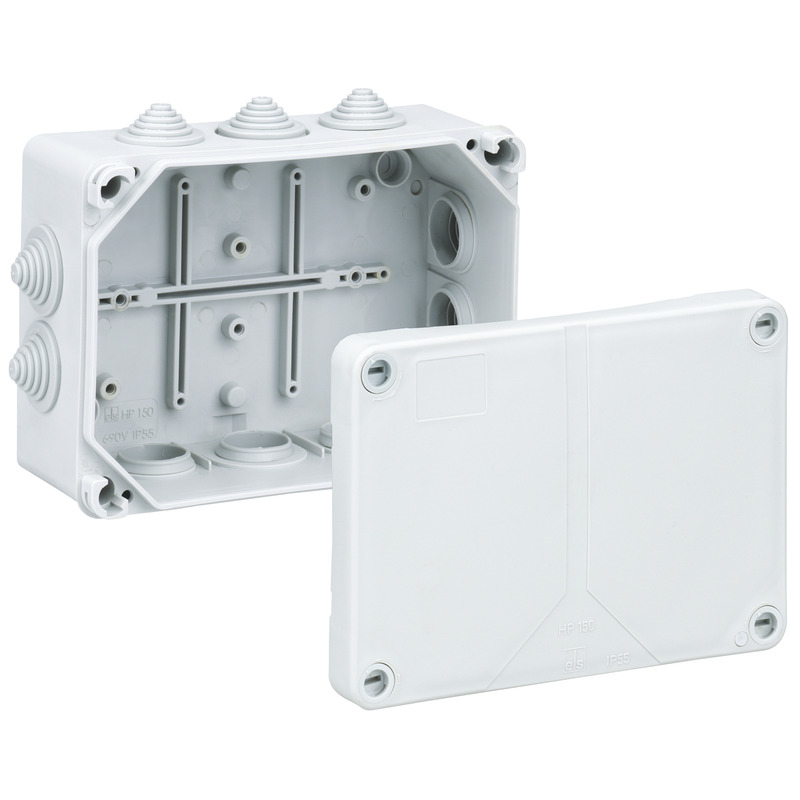

Junction box
Productnumber: 32695001 | Dimensions: 164 x 119 x 77 mm

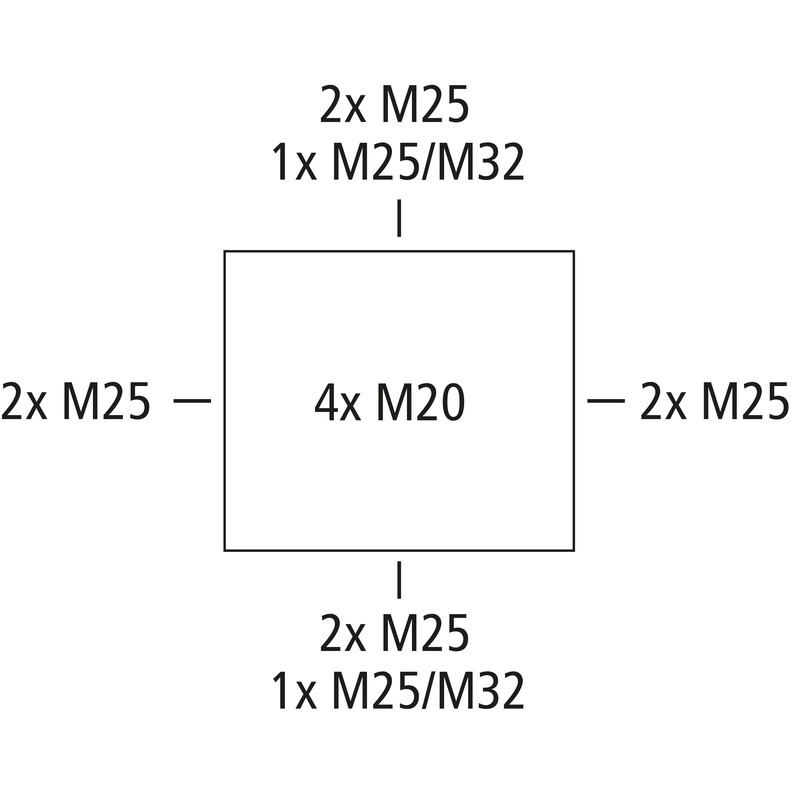

Junction box, protection class IP55, nominal cross-section 10 mm², Ui=690 V AC, certified by VDE (DIN EN 60670-1/-22 (VDE 0606-1/-22)), stepped nipple, M20/M25/M32, sealing range 5 - 21 mm, (4 rear, 10 side), internal fixing points, for standard indoor installations
grey, without terminals
| Rated insulation voltage AC | 690 V |
|---|---|
| Max. conductor cross section | 10 mm² |
| Protection class | II |
| Type of protection | IP55 |
| UL Type Rating | not specified |
| Base unit colour | grey |
|---|---|
| Cover colour | grey |
| Width | 164 mm |
|---|---|
| Length | 119 mm |
| Height | 77 mm |
| Inner length | 110 mm |
| Inner width | 155 mm |
| Inner height | 70 mm |
| Weight | 0.25 kg |
| UV-resistant | no |
|---|---|
| Halogen free | no |
| for sealing range min | 5 mm |
|---|---|
| for sealing range max | 21 mm |
| Type of fastening | Wall/ceiling mounting |
| Impact strength | IK07 |
| Sealable | no |
| Fastening | internal fixing points |
| max. relative humidity 25°C | 95 % |
|---|---|
| max. relative humidity 40°C | 50 % |
| Min. ambient temperature | -25 °C |
| Max. ambient temperature | 40 °C |
| 24h ambient temperature | 35 °C |
| Installation location | Indoors |
| EAN | 4013902940066 |
|---|---|
| Packing Unit Code | C62 |
| ETIM Class | EC002600 |
| Custom tariff number | 85389099 |
| Base unit material | Polypropylene |
|---|---|
| Cover material | Polypropylene |
| Test mark | VDE (DIN EN 60670-1/-22 (VDE 0606-1/-22)) |
|---|
| CAD-Data | Download 3D-CAD-Data |
|---|
