Junction box

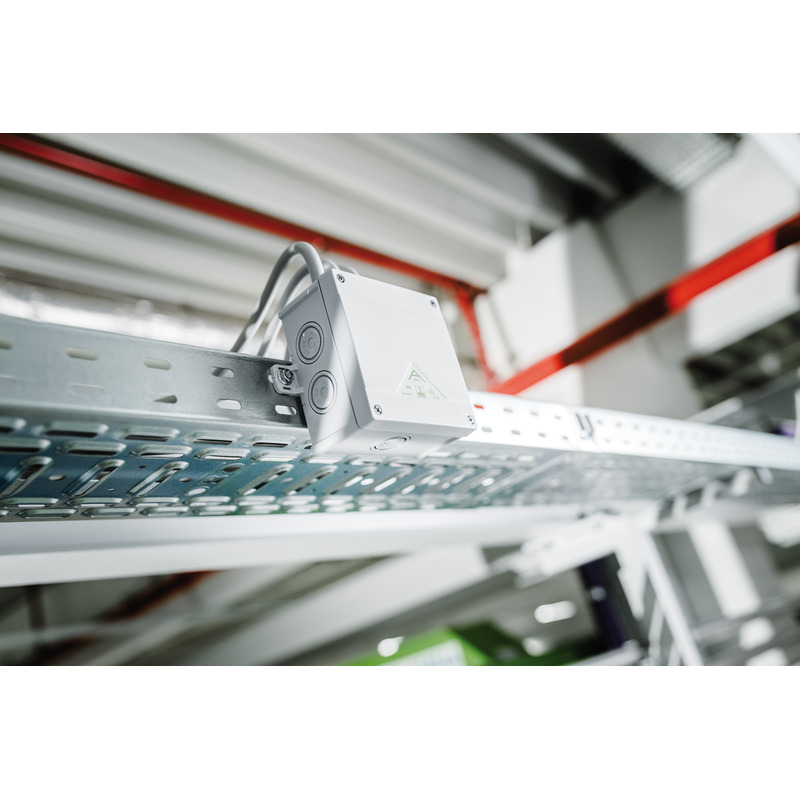

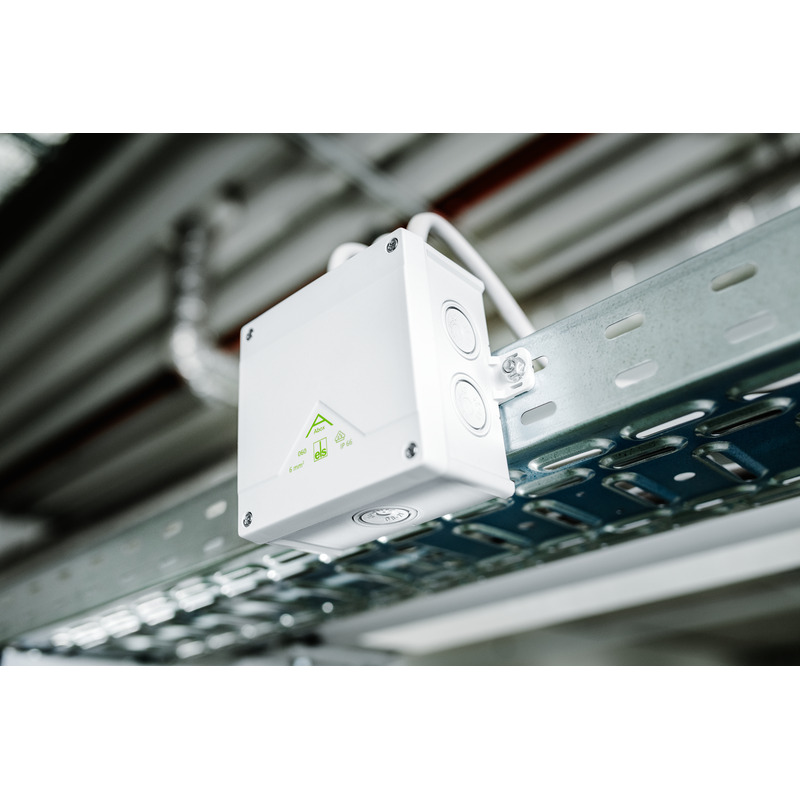

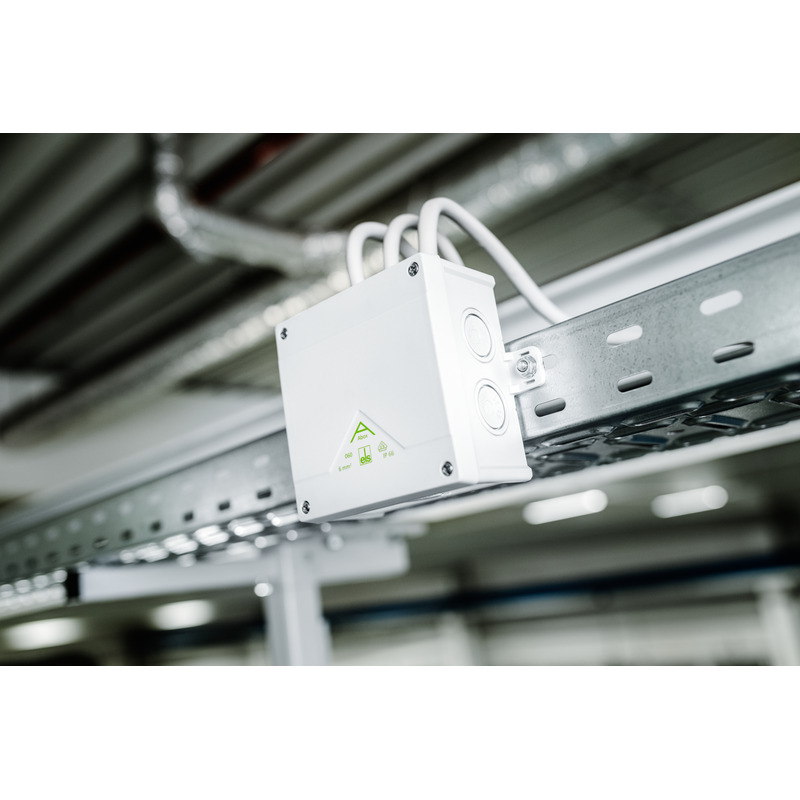

Abox 060-6²/w

Productnumber: 80612001 | Dimensions: 127 x 127 x 70 mm

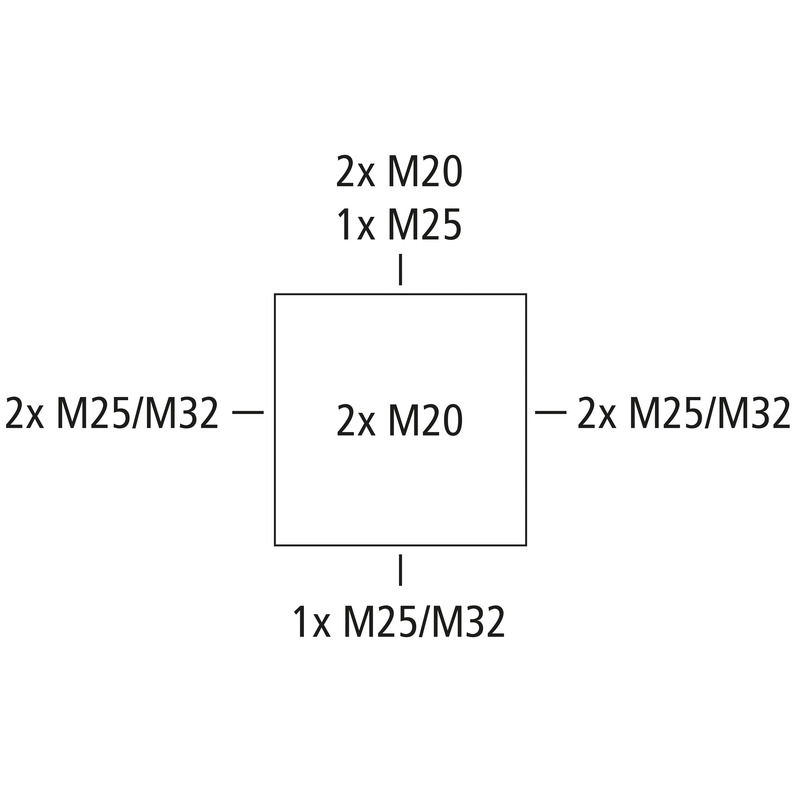

Junction box, protection class IP66, nominal cross-section 6 mm², certified by VDE (DIN EN 60670-1/-22 (VDE 0606-1/-22)), DLG (Ammonia resistance), self-sealing, soft insertion membranes, M20/M25/M32, sealing range 4 - 28 mm, (2 rear, 8 side), internal fixing points, for standard indoor and protected outdoor installations

white, U_i=690 V AC, I_n=41 A, with raised screw terminal block, 5-pole - 6 mm², clampable cross-sections per pole: 4 x 1.5 mm², 4 x 2.5 mm², 4 x 4 mm², 4 x 6 mm² rigid Cu/flexible with wire-end ferrule

Find wholesaler

electrical characteristics

Rated insulation voltage AC	690 V
Rated insulation voltage DC	690 V
Min. conductor cross section	1,5 mm²
Max. conductor cross section	6 mm²
Protection class	II
Type of protection	IP66
Rated current	41 A
Terminal type	Screw terminal
Number of poles	5

Colours

Base unit colour	white
Cover colour	white

Dimensions

Width	127 mm
Length	127 mm
Height	70 mm
Inner length	114 mm
Inner width	114 mm
Inner height	54 mm
Weight	0.281 kg

Material characteristics

UV-resistant	yes
Halogen free	yes
Flammability class according with UL94	HB
Glow-wire flammability according to EN 60695-2-11	750 °C

mechanical properties

for sealing range min	4 mm
for sealing range max	28 mm
Impact strength	IK07
Sealable	yes
Cover screw torque	1.2 Nm
Type of fastening	Wall/ceiling mounting
Fastening	internal fixing points

Ambient conditions

max. relative humidity 25°C	95 %
max. relative humidity 40°C	50 %
Min. ambient temperature	-25 °C
Max. ambient temperature	55 °C
24h ambient temperature	35 °C
Installation location	protected outdoor areas

Sales Information

EAN	4013902660964
Packing Unit Code	C62
ETIM Class	EC002600
Custom tariff number	85369095

Material

Base unit material	Polypropylene
Cover material	Polypropylene
Entry material	Thermoplastic elastomer
Sealing material	Thermoplastic elastomer
Cover screw material	Stainless steel V2A

Certificates

Test mark	VDE (DIN EN 60670-1/-22 (VDE 0606-1/-22))
Test mark	DLG (Ammonia resistance)

Download Data Sheet

Download Data Sheet

Installation instructions

Assembly instruction FR/ES	pdf (5 MB)
Assembly instruction DE/EN	pdf (5 MB)

Dimensioned drawing

Dimensional drawing	pdf (5 MB)
Dimensional drawing	dwg (6 MB)
Dimensional drawing	dxf (27 MB)

Certificate

VDE Certificate DE/EN	pdf (397 KB)
DLG Approval DE	pdf (1 MB)
CE Declaration DE/EN/FR	pdf (139 KB)
CE Declaration DE/EN/PL	pdf (141 KB)
UKCA Declaration EN	pdf (167 KB)

Accessories

Double-membrane seals DMS M20/w

Dimensions : 25,2 x 25,2 x 13,4 mm
Productnumber: 26012001

Sealing range 7 - 13 mm

Double membrane seals, IP66, with two sealing membranes, closed, thermoplastic elastomer (TPE), for...
