Junction box
Productnumber: 80270001 | Dimensions: 87 x 87 x 52 mm

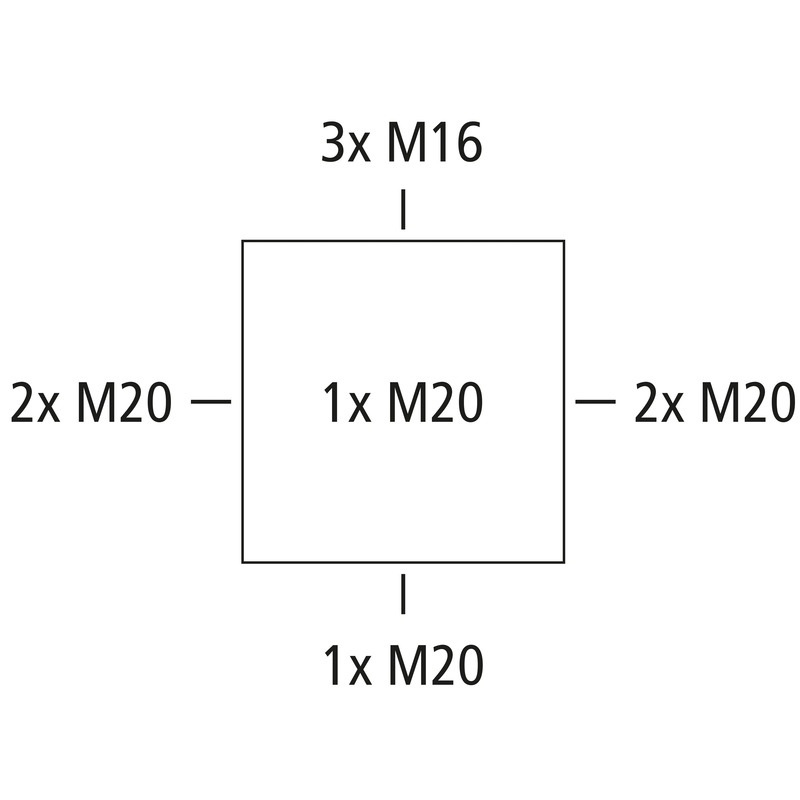

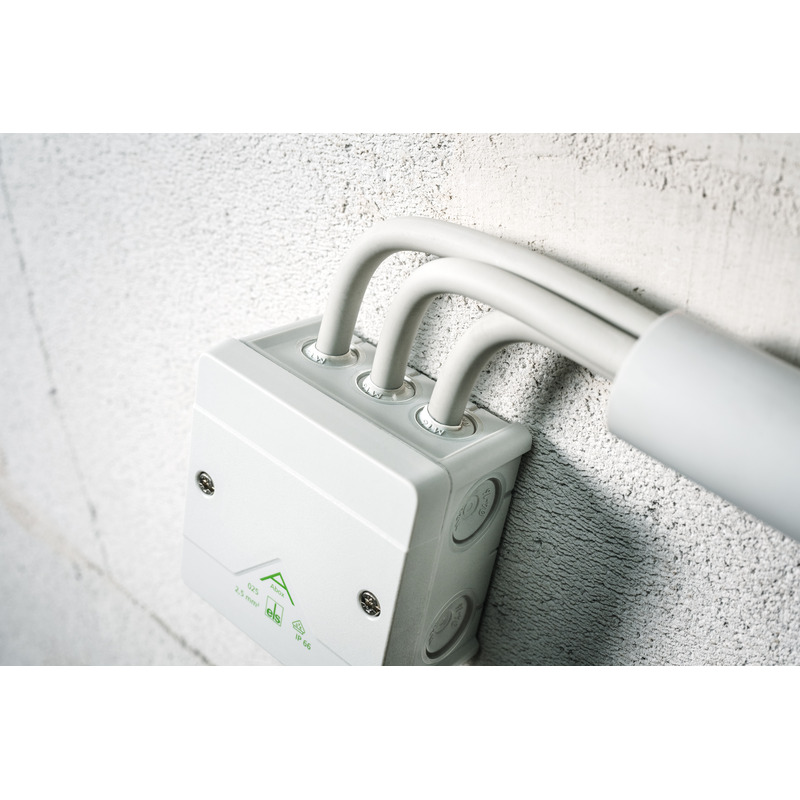

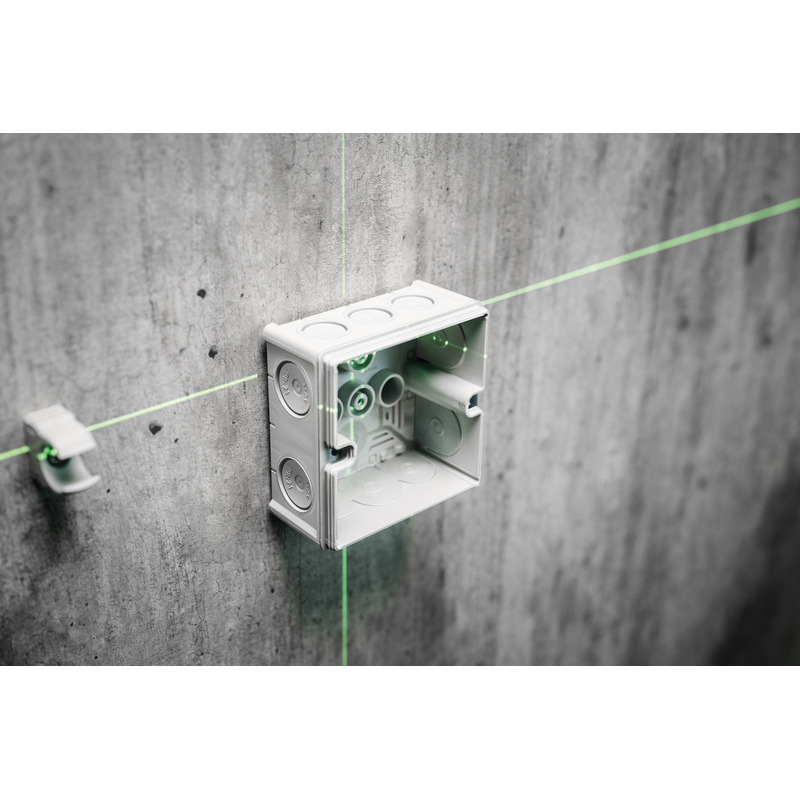

Junction box, protection class IP66, nominal cross-section 2.5 mm², certified by VDE (DIN EN 60670-1/-22 (VDE 0606-1/-22)), DLG (Ammonia resistance), self-sealing, soft insertion membranes, M16/M20, sealing range 4 - 16 mm, (1 rear, 8 side), internal fixing points, for standard indoor and protected outdoor installations

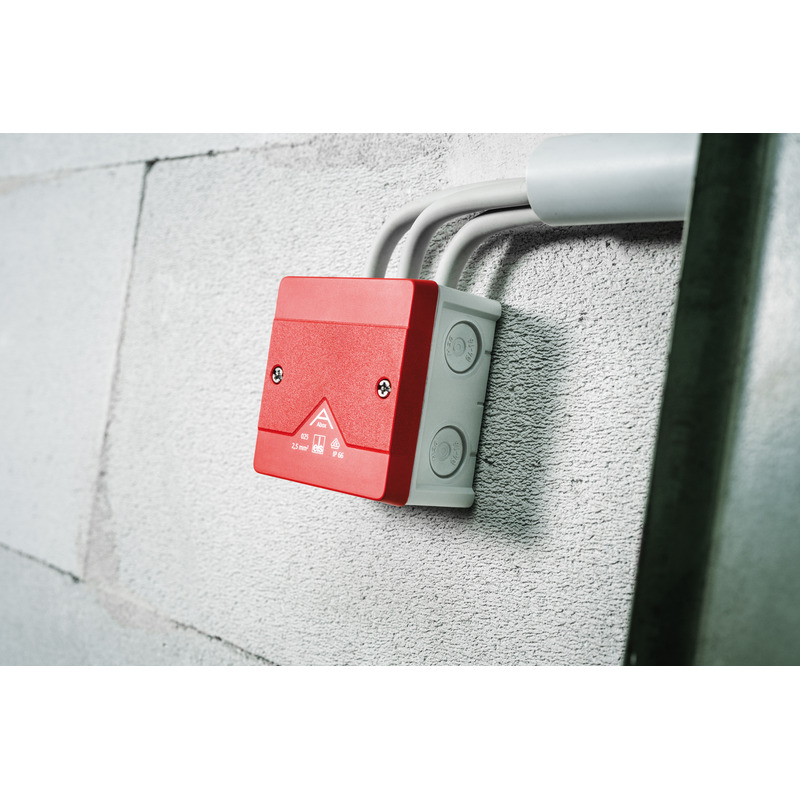

grey, Ui=1000 V AC, with red cover, without terminals, for identification of safety lighting circuits
| Rated insulation voltage AC | 1000 V |
|---|---|
| Rated insulation voltage DC | 1000 V |
| Max. conductor cross section | 2,5 mm² |
| Protection class | II |
| Type of protection | IP66 |
| Terminal type | none |
| Base unit colour | grey |
|---|---|
| Cover colour | red |
| Width | 87 mm |
|---|---|
| Length | 87 mm |
| Height | 52 mm |
| Inner length | 75 mm |
| Inner width | 75 mm |
| Inner height | 37 mm |
| Weight | 0.098 kg |
| UV-resistant | yes |
|---|---|
| Halogen free | yes |
| Flammability class according with UL94 | HB |
| Glow-wire flammability according to EN 60695-2-11 | 750 °C |
| max. amount of terminals at 1,5² | 8 |
|---|---|
| max. amount of terminals at 2,5² | 6 |
| max. amount of wires at 1,5² | 24 |
|---|---|
| max. amount of wires at 2,5² | 20 |
| for sealing range min | 4 mm |
|---|---|
| for sealing range max | 16 mm |
| Impact strength | IK07 |
| Sealable | yes |
| Cover screw torque | 1.2 Nm |
| Type of fastening | Wall/ceiling mounting |
| Fastening | internal fixing points |
| max. relative humidity 25°C | 95 % |
|---|---|
| max. relative humidity 40°C | 50 % |
| Min. ambient temperature | -25 °C |
| Max. ambient temperature | 55 °C |
| 24h ambient temperature | 35 °C |
| Installation location | protected outdoor areas |
| EAN | 4013902661831 |
|---|---|
| Packing Unit Code | C62 |
| ETIM Class | EC002600 |
| Custom tariff number | 85389099 |
| Base unit material | Polypropylene |
|---|---|
| Cover material | Polypropylene |
| Entry material | Thermoplastic elastomer |
| Sealing material | Thermoplastic elastomer |
| Cover screw material | Stainless steel V2A |
| Test mark | VDE (DIN EN 60670-1/-22 (VDE 0606-1/-22)) |
|---|---|
| Test mark | DLG (Ammonia resistance) |
