Junction box

Abox 025-2,5²

Productnumber: 80242001 | Dimensions: 87 x 87 x 52 mm

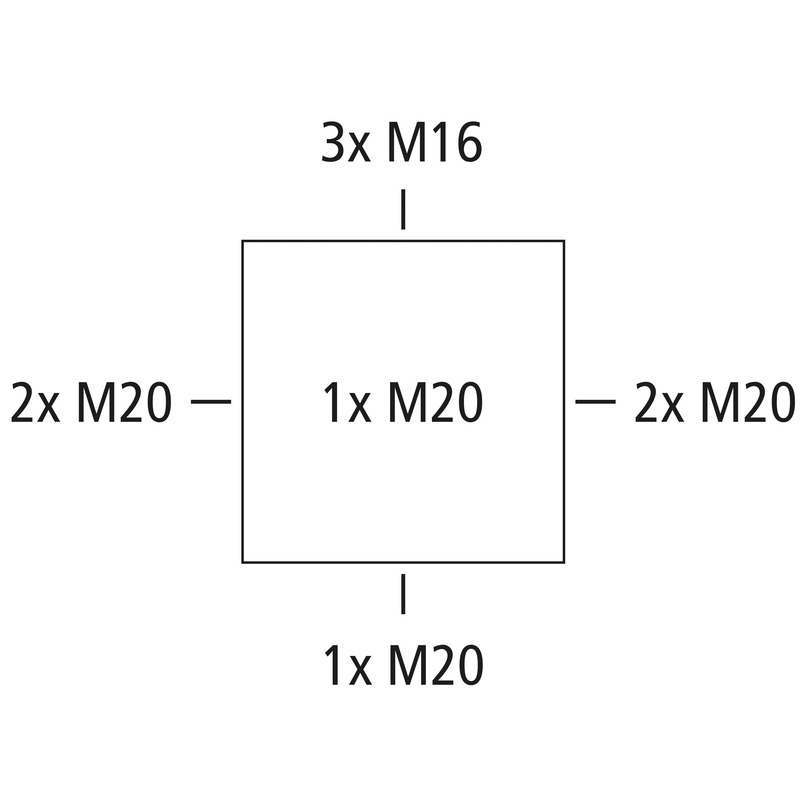

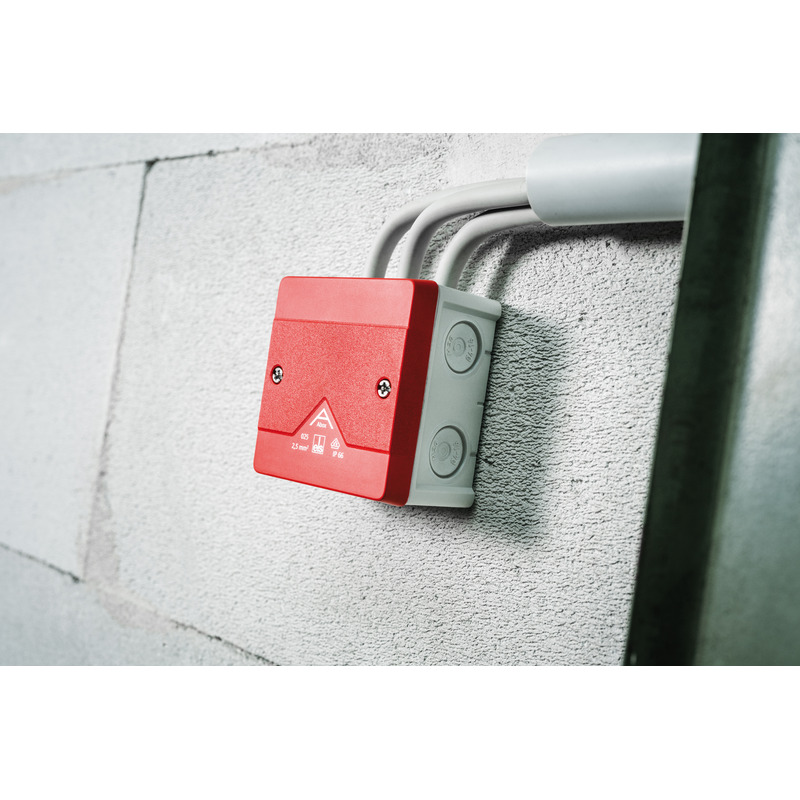

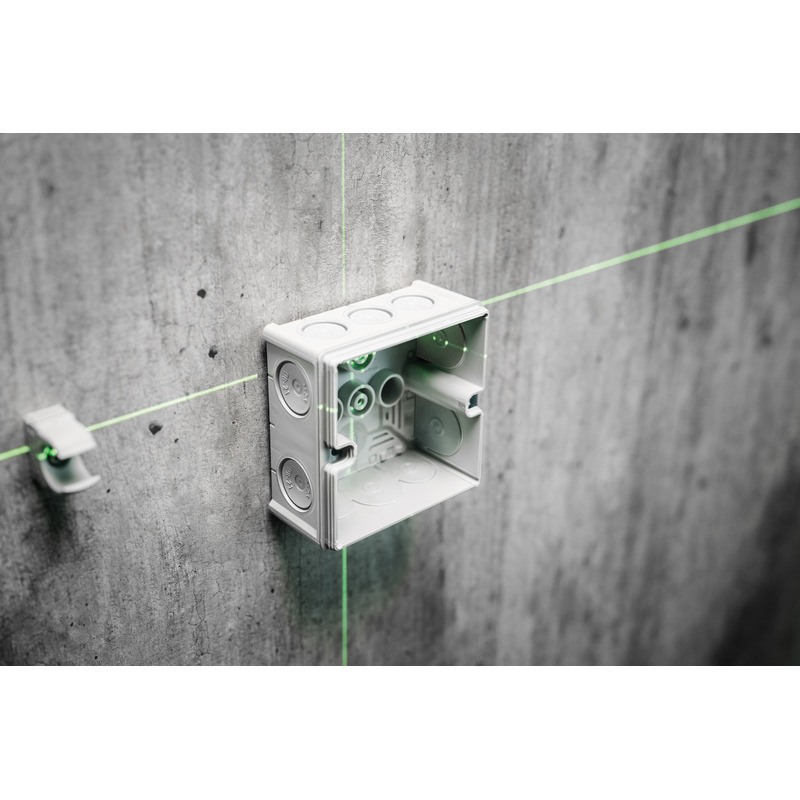

Junction box, protection class IP66, nominal cross-section 2.5 mm², certified by VDE (DIN EN 60670-1/-22 (VDE 0606-1/-22)), DLG (Ammonia resistance), self-sealing, soft insertion membranes, M16/M20, sealing range 4 - 16 mm, (1 rear, 8 side), internal fixing points, for standard indoor and protected outdoor installations

grey, U_i=450 V AC, I_n=24 A, with 5 screwless 5-wire terminal, Wago 2273-205, max. nominal cross-section in accordance with DIN EN 60998: 2.5 mm², clampable cross-sections per connection pole: 5 x 0.5 - 2.5 mm² rigid Cu/Al (follow installation instructions)

Find wholesaler

electrical characteristics

Rated insulation voltage AC	450 V
Rated insulation voltage DC	450 V
Min. conductor cross section	0,5 mm²
Max. conductor cross section	2,5 mm²
Protection class	II
Type of protection	IP66
Rated current	24 A
Terminal type	screwless
Number of poles	5

Colours

Base unit colour	grey
Cover colour	grey

Dimensions

Width	87 mm
Length	87 mm
Height	52 mm
Inner length	75 mm
Inner width	75 mm
Inner height	37 mm
Weight	0.11 kg

Material characteristics

UV-resistant	yes
Halogen free	yes
Flammability class according with UL94	HB
Glow-wire flammability according to EN 60695-2-11	750 °C

mechanical properties

for sealing range min	4 mm
for sealing range max	16 mm
Impact strength	IK07
Sealable	yes
Cover screw torque	1.2 Nm
Type of fastening	Wall/ceiling mounting
Fastening	internal fixing points

Ambient conditions

max. relative humidity 25°C	95 %
max. relative humidity 40°C	50 %
Min. ambient temperature	-25 °C
Max. ambient temperature	55 °C
24h ambient temperature	35 °C
Installation location	protected outdoor areas

Sales Information

EAN	4013902662678
Packing Unit Code	C62
ETIM Class	EC002600
Custom tariff number	85369095

Material

Base unit material	Polypropylene
Cover material	Polypropylene
Entry material	Thermoplastic elastomer
Sealing material	Thermoplastic elastomer
Cover screw material	Stainless steel V2A

Certificates

Test mark	VDE (DIN EN 60670-1/-22 (VDE 0606-1/-22))
Test mark	DLG (Ammonia resistance)

Download Data Sheet

Download Data Sheet

Installation instructions

Assembly instruction FR/ES	pdf (5 MB)
Assembly instruction DE/EN	pdf (5 MB)

Dimensioned drawing

Dimensional drawing	pdf (4 MB)
Dimensional drawing	dwg (5 MB)
Dimensional drawing	dxf (23 MB)

Certificate

UKCA Declaration EN	pdf (167 KB)
VDE Certificate DE/EN	pdf (397 KB)
CE Declaration DE/EN/PL	pdf (141 KB)
CE Declaration DE/EN/FR	pdf (139 KB)
DLG Approval DE	pdf (1 MB)

Accessories

Cable gland KVR M16-MGM

Dimensions : 22 x 22 x 31 mm
Productnumber: 22741601

Sealing range 4 - 10 mm, Thread length 8 mm

Cable gland, IP68/IP69*, with strain relief, polyamide, M_ x 1.5 mm, with locknut, grey
