Junction box

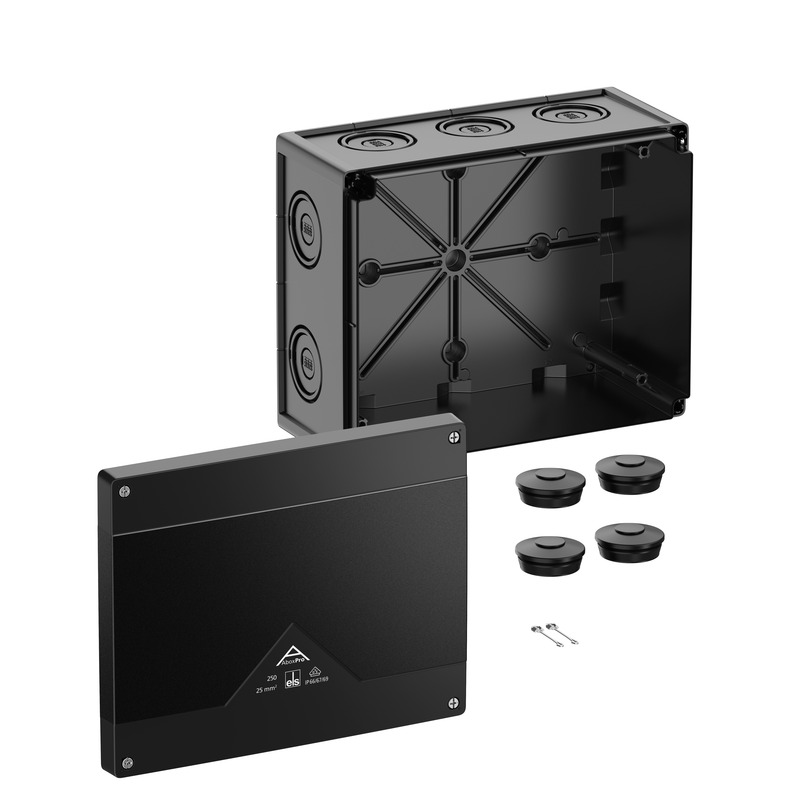

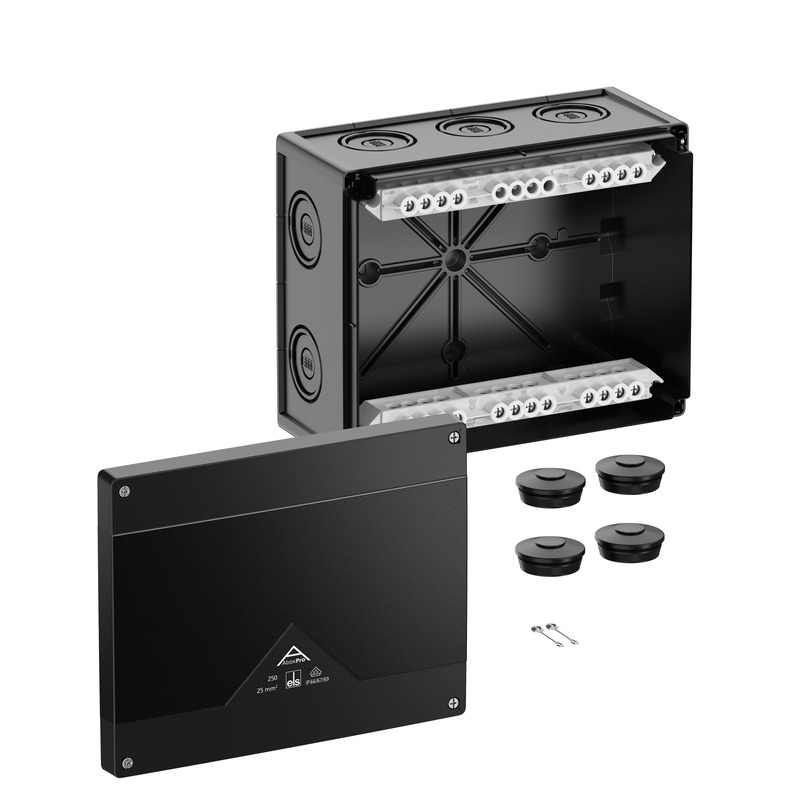

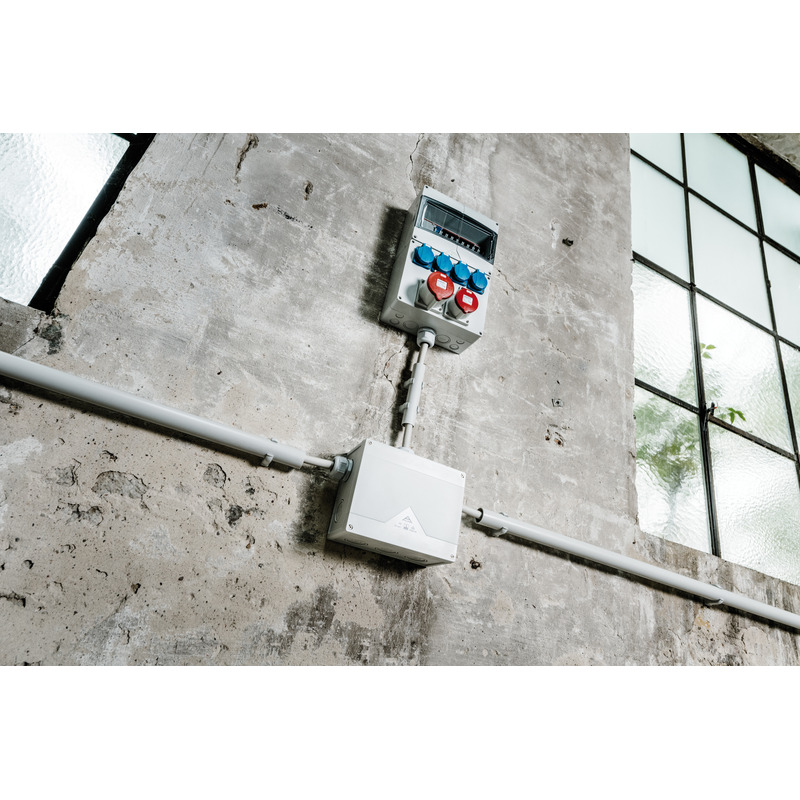

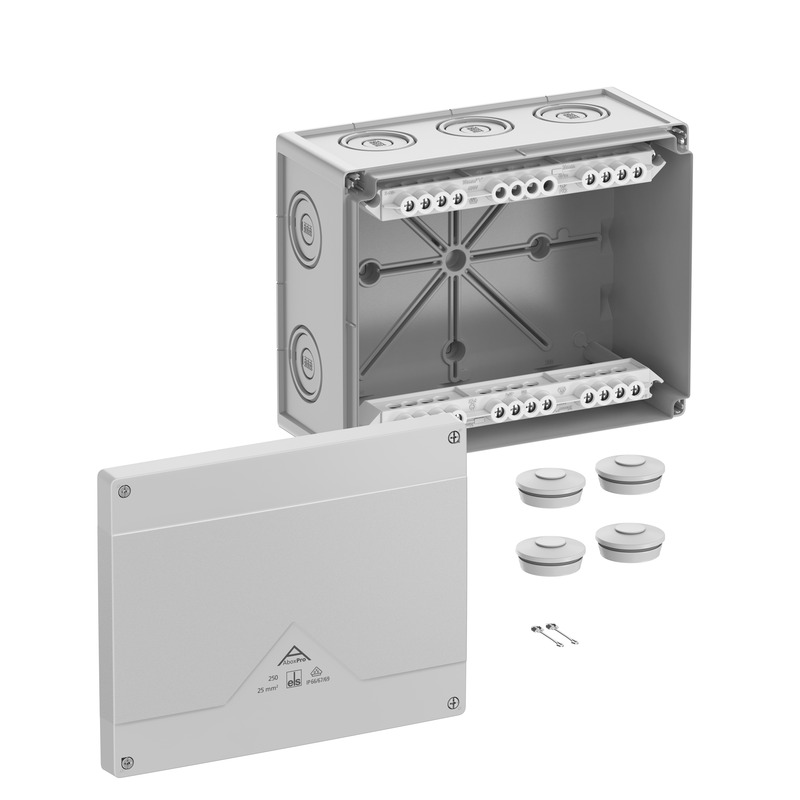

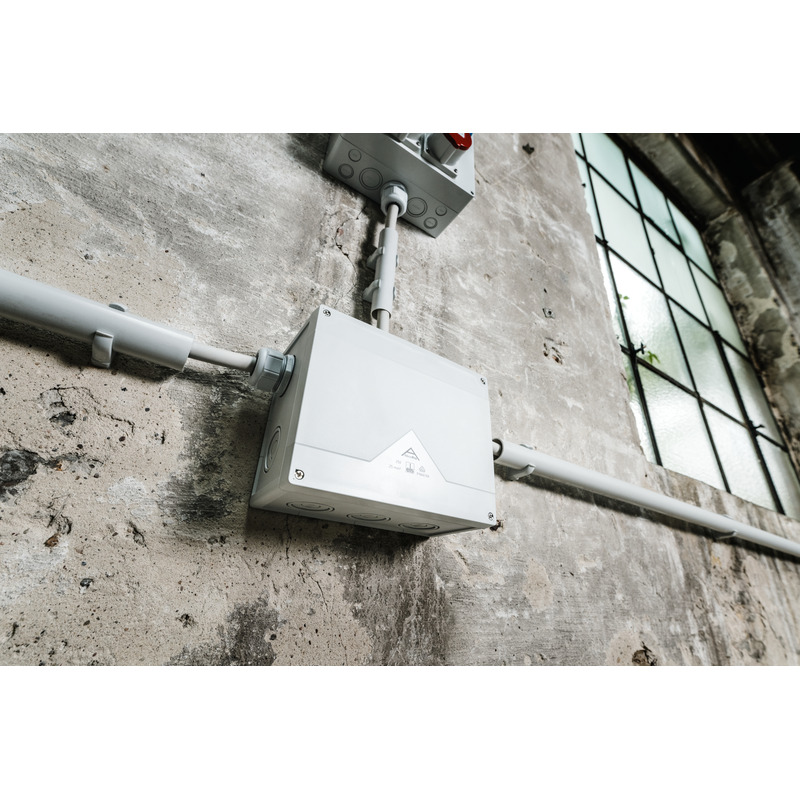

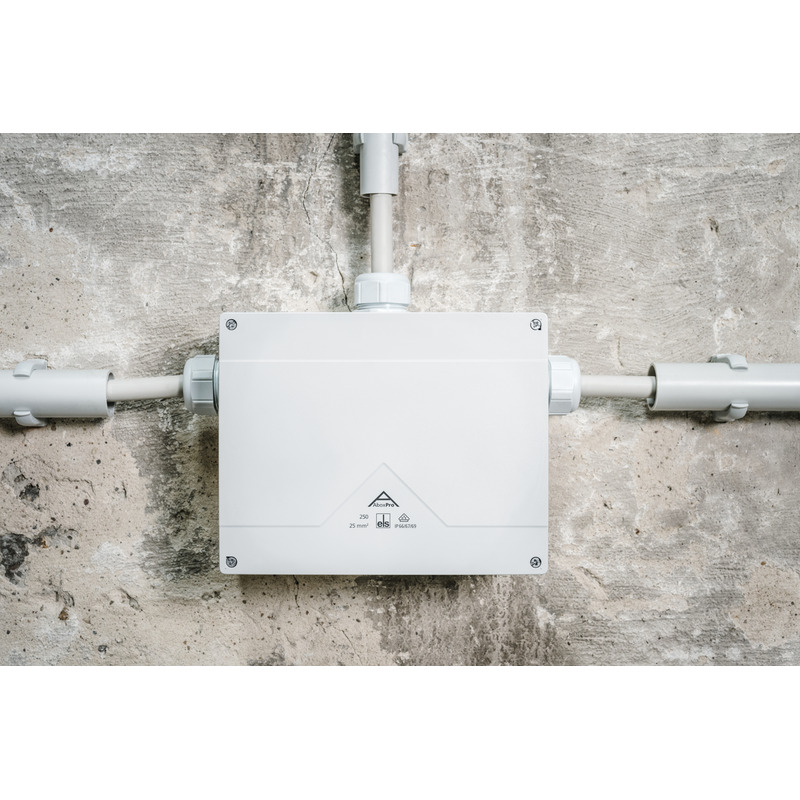

Abox Pro 250-25²/sw

Productnumber: 42502001 | Dimensions: 252 x 202 x 120 mm

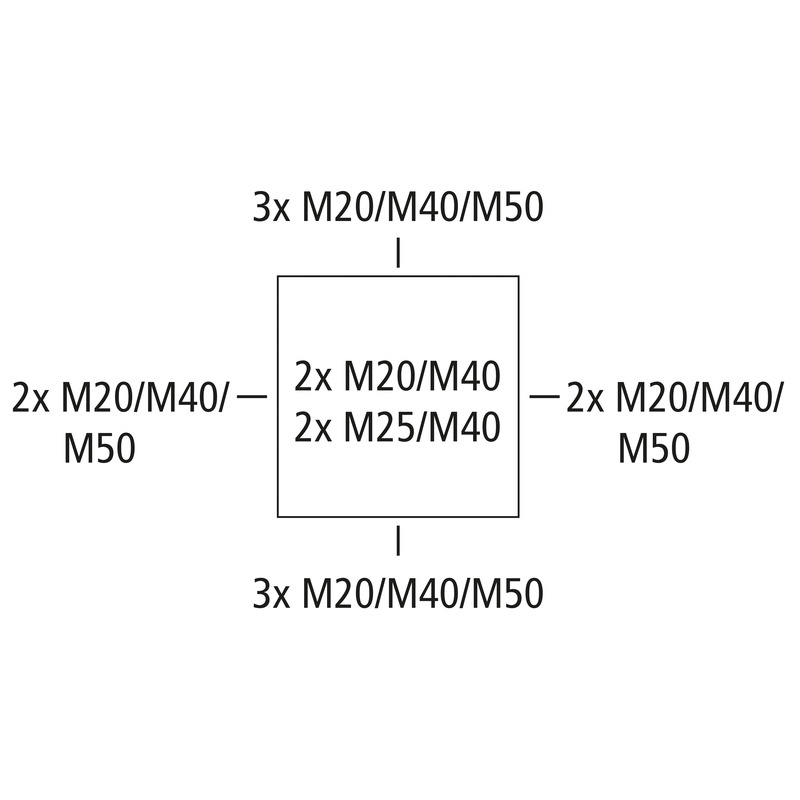

Junction box, protection class IP66/IP67/IP69, nominal cross-section 25 mm², certified by VDE (DIN EN 60670-1/-22 (VDE 0606-1/-22)), DLG (Ammonia resistance), DNV (Class: Ships and Offshore Installations), knockouts, M20/M25/M40/M50, (4 rear, 10 side), internal fixing points, for installation in industrial environments and unprotected outdoor areas

black, U_i=690 V AC, I_n=101 A, with raised screw terminal block, 5-pole - 25 mm², clampable cross-sections per pole: 12 x 10 mm², 8 x 16 mm², 4 x 25 mm² Cu rigid/flexible with wire-end ferrule

Accessories supplied:
4 double membrane seals IP66 M40 sealing range 17 - 28 mm, cover retainer

Find wholesaler

electrical characteristics

Rated insulation voltage AC	690 V
Rated insulation voltage DC	690 V
Min. conductor cross section	10 mm²
Max. conductor cross section	25 mm²
Protection class	II
Type of protection	IP66/IP67/IP69
Rated current	101 A
Terminal type	Screw terminal
Number of poles	5

Colours

Base unit colour	black
Cover colour	black

Dimensions

Width	252 mm
Length	202 mm
Height	120 mm
Inner length	186 mm
Inner width	236 mm
Inner height	99 mm
Weight	1.3041 kg

Material characteristics

UV-resistant	yes
Halogen free	yes
Flammability class according with UL94	V0
Glow-wire flammability according to EN 60695-2-11	960 °C

mechanical properties

Impact strength	IK09
Sealable	yes
Cover screw torque	1.5 Nm
Type of fastening	Wall/ceiling mounting
Fastening	internal fixing points

Ambient conditions

max. relative humidity 25°C	95 %
max. relative humidity 40°C	50 %
Min. ambient temperature	-35 °C
Max. ambient temperature	80 °C
24h ambient temperature	60 °C
Installation location	unprotected outdoor areas

Sales Information

EAN	4013902663545
Packing Unit Code	C62
ETIM Class	EC002600
Custom tariff number	85369095

Material

Base unit material	Polycarbonate, glass-fibre reinforced
Cover material	Polycarbonate
Sealing material	Thermoplastic elastomer
Cover screw material	Stainless steel V2A

Certificates

Test mark	VDE (DIN EN 60670-1/-22 (VDE 0606-1/-22))
Test mark	DLG (Ammonia resistance)
Test mark	DNV (Class: Ships and Offshore Installations)

Download Data Sheet

Download Data Sheet

Installation instructions

Assembly instruction DE/EN	pdf (5 MB)
Assembly instruction FR/ES	pdf (5 MB)

Dimensioned drawing

Dimensional drawing	pdf (6 MB)
Dimensional drawing	dxf (36 MB)
Dimensional drawing	dwg (7 MB)

Certificate

UKCA Declaration EN	pdf (166 KB)
DNV Certificate EN	pdf (198 KB)
CE Declaration DE/EN/PL	pdf (141 KB)
DLG Approval DE	pdf (1 MB)
VDE Certificate DE/EN	pdf (496 KB)
CE Declaration DE/EN/FR	pdf (139 KB)

Accessories

Cable gland KVR M20-MGM/sw

Dimensions : 26,5 x 26,5 x 36 mm
Productnumber: 22702001

Sealing range 6 - 12 mm, Thread length 9 mm

Cable gland, IP68/IP69*, with strain relief, polyamide, M_ x 1.5 mm, with locknut, black
