Abox Pro 100 AB-10²

Abox Pro 100 AB-10²

Abox Pro 100 AB-10²

Junction box

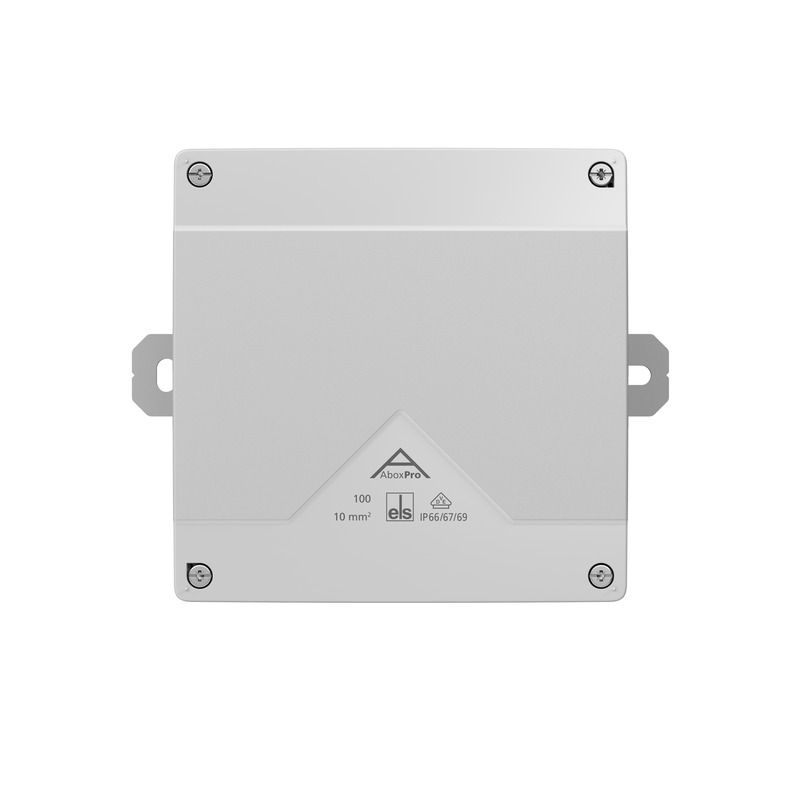

Abox Pro 100 AB-10²

Productnumber: 41042101 | Dimensions: 152 x 152 x 85 mm

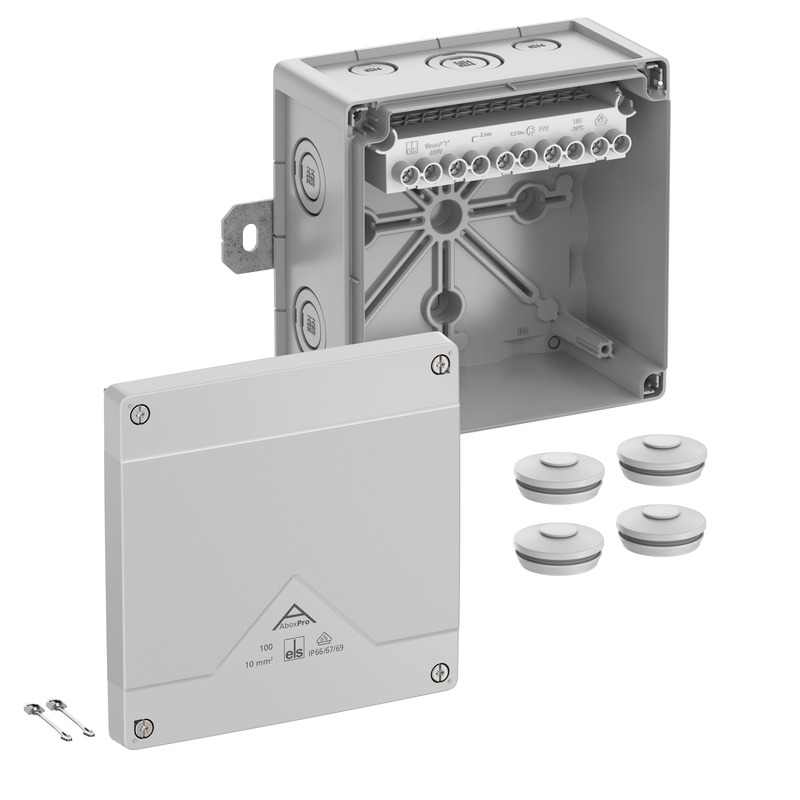

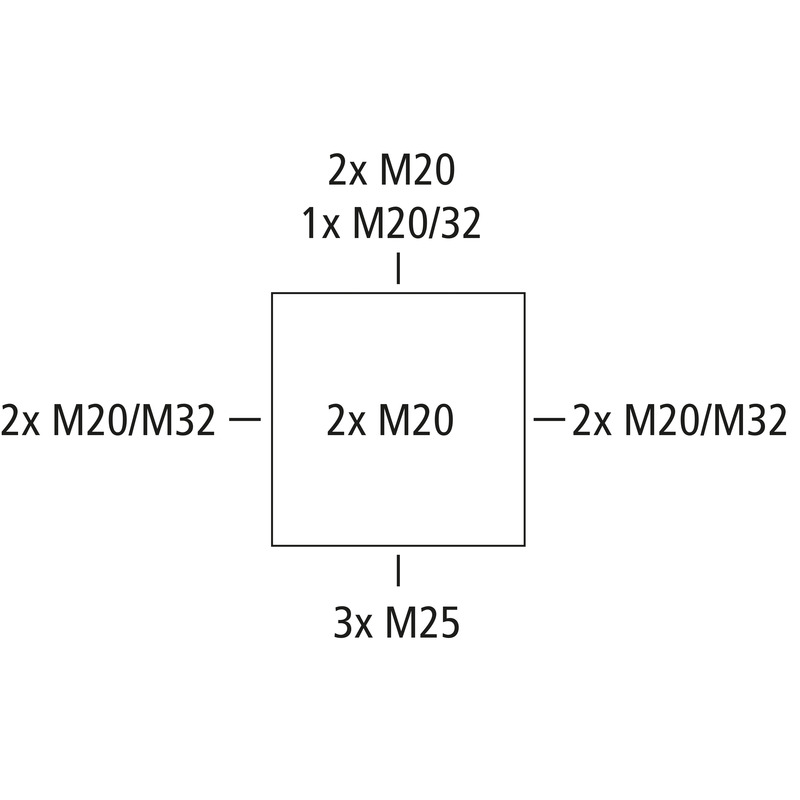

Junction box, protection class IP66/IP67/IP69, nominal cross-section 10 mm², certified by VDE (DIN EN 60670-1/-22 (VDE 0606-1/-22)), DLG (Ammonia resistance), DNV (Class: Ships and Offshore Installations), knockouts, M20/M25/M32, (2 rear, 10 side), external fixing lugs, for installation in industrial environments and unprotected outdoor areas

grey, U_i=690 V AC, I_n=57 A, with raised screw terminal block, 5-pole- 10 mm², clampable cross-sections per pole: 4 x 2.5 mm², 4 x 4 mm², 4 x 6 mm², 4 x 10 mm² rigid Cu/flexible with wire-end ferrule

Accessories supplied:
4 double membrane seals IP66 M32 sealing range 13 - 21 mm, cover retainer

Find wholesaler

electrical characteristics

Rated insulation voltage AC	690 V
Rated insulation voltage DC	690 V
Min. conductor cross section	4 mm²
Max. conductor cross section	10 mm²
Protection class	II
Type of protection	IP66/IP67/IP69
Rated current	57 A
Terminal type	Screw terminal
Number of poles	5

Colours

Base unit colour	grey
Cover colour	grey

Dimensions

Width	152 mm
Length	152 mm
Height	85 mm
Inner length	137 mm
Inner width	137 mm
Inner height	65 mm
Weight	0.6531 kg

Material characteristics

UV-resistant	yes
Halogen free	yes
Flammability class according with UL94	V0
Glow-wire flammability according to EN 60695-2-11	960 °C

mechanical properties

Impact strength	IK09
Sealable	yes
Cover screw torque	1.5 Nm
Type of fastening	Wall/ceiling mounting
Fastening	external fixing lugs

Ambient conditions

max. relative humidity 25°C	95 %
max. relative humidity 40°C	50 %
Min. ambient temperature	-35 °C
Max. ambient temperature	80 °C
24h ambient temperature	60 °C
Installation location	unprotected outdoor areas

Sales Information

EAN	4013902663606
Packing Unit Code	C62
ETIM Class	EC002600
Custom tariff number	85369095

Material

Base unit material	Polycarbonate
Cover material	Polycarbonate
Sealing material	Thermoplastic elastomer
Cover screw material	Stainless steel V2A

Certificates

Test mark	VDE (DIN EN 60670-1/-22 (VDE 0606-1/-22))
Test mark	DLG (Ammonia resistance)
Test mark	DNV (Class: Ships and Offshore Installations)

Download Data Sheet

Download Data Sheet

Installation instructions

Assembly instruction FR/ES	pdf (5 MB)
Assembly instruction DE/EN	pdf (5 MB)

Dimensioned drawing

Dimensional drawing	pdf (6 MB)
Dimensional drawing	dwg (8 MB)
Dimensional drawing	dxf (36 MB)

Certificate

VDE Certificate DE/EN	pdf (496 KB)
DNV Certificate EN	pdf (198 KB)
CE Declaration DE/EN/PL	pdf (141 KB)
UKCA Declaration EN	pdf (166 KB)
DLG Approval DE	pdf (1 MB)
CE Declaration DE/EN/FR	pdf (139 KB)

Accessories

Cable gland - KVR M20-MGM

Cable gland KVR M20-MGM

Dimensions : 26,5 x 26,5 x 36 mm
Productnumber: 22742001

Sealing range 6 - 12 mm, Thread length 9 mm

Cable gland, IP68/IP69*, with strain relief, polyamide, M_ x 1.5 mm, with locknut, grey
(*IP69 in...

Watchlist

Cable gland - KVR M20-GDB/MGM

Cable gland KVR M20-GDB/MGM

Dimensions : 30 x 30 x 37 mm
Productnumber: 22742101

Sealing range 7 - 14 mm, Thread length 9 mm

Cable gland, IP68/IP69*, with strain relief, polyamide, M_ x 1.5 mm, with locknut, grey
(*IP69 in...

Watchlist

Cable gland - KVR M25-MGM

Cable gland KVR M25-MGM

Dimensions : 31,5 x 31,5 x 44 mm
Productnumber: 22742501

Sealing range 9 - 16 mm, Thread length 11 mm

Cable gland, IP68/IP69*, with strain relief, polyamide, M_ x 1.5 mm, with locknut, grey
(*IP69 in...

Watchlist

Cable gland - KVR M32-MGM

Cable gland KVR M32-MGM

Dimensions : 40 x 40 x 50 mm
Productnumber: 22743201

Sealing range 11 - 21 mm, Thread length 11 mm

Cable gland, IP68/IP69*, with strain relief, polyamide, M_ x 1.5 mm, with locknut, grey
(*IP69 in...

Watchlist

Double-membrane seals - DMS M20

Double-membrane seals DMS M20

Dimensions : 25,2 x 25,2 x 13,4 mm
Productnumber: 26042001

Sealing range 7 - 13 mm

Double membrane seals, IP66, with two sealing membranes, closed, thermoplastic elastomer (TPE), for...

Watchlist

Double-membrane seals - DMS M25

Double-membrane seals DMS M25

Dimensions : 29,7 x 29,7 x 13,6 mm
Productnumber: 26042501

Sealing range 9 - 17 mm

Double membrane seals, IP66, with two sealing membranes, closed, thermoplastic elastomer (TPE), for...

Watchlist

Double-membrane seals - DMS M32

Double-membrane seals DMS M32

Dimensions : 36,7 x 36,7 x 14,7 mm
Productnumber: 26043201

Sealing range 13 - 21 mm

Double membrane seals, IP66, with two sealing membranes, closed, thermoplastic elastomer (TPE), for...

Watchlist

new

Mounting plate - Abox MPI 100

Mounting plate Abox MPI 100

Dimensions : 120 x 120 x 2,5 mm
Productnumber: 89511001

for Abox / Abox Pro 100

Mounting plate in melamine lined insulating material, 2.5 mm thickness, grey incl. fixing screws....

Watchlist

new

Standard rail - Abox 100 NS35

Standard rail Abox 100 NS35

Dimensions : 35 x 120 x 7,5 mm
Productnumber: 89531001

for Abox / Abox Pro 100

Standard rail in accordance with DIN EN 60715, 35 x 7.5 mm, incl. fixing screws. For mounting in...

Watchlist

new

Terminal holder - Abox 100 KH 221 6²

Terminal holder Abox 100 KH 221 6²

Dimensions : 26 x 114 x 32 mm
Productnumber: 89600501

for position-fixed and elevated mounting of up to 6 terminals Wago...

Terminal holder incl. fixing material for mounting of Wago installation and terminal boxes in Abox...

Watchlist

new

Terminal holder - Abox 100 KH 2006 6²

Terminal holder Abox 100 KH 2006 6²

Dimensions : 69 x 124 x 60 mm
Productnumber: 89600601

terminal holder with standard rail NS35 for mounting of terminal...

Terminal holder incl. fixing material for mounting of Wago installation and terminal boxes in Abox...

Watchlist

new

Terminal block - Abox 100 KLS-10²

Terminal block Abox 100 KLS-10²

Dimensions : 25 x 124 x 39 mm
Productnumber: 89641001

raised screw terminal block for Abox/Abox Pro 100, 5-pole - 10 mm², I_n...

Connecting terminal in accordance with DIN EN 60998 (VDE 0613), U_i=690V. For assembly in junction...

Watchlist

new

Fastening parts kit - KTB 1

Fastening parts kit KTB 1

Dimensions : 17 x 30 x 14 mm
Productnumber: 89600901

Fixing element for mounting of enclosures on cable tray systems with elongated hole width of 7 mm...

Watchlist

CAD-Data

CAD-Data	Download 3D-CAD-Data

Tender text

Log in to mySpelsberg to download tender texts. mySpelsberg Login

Similar products

new

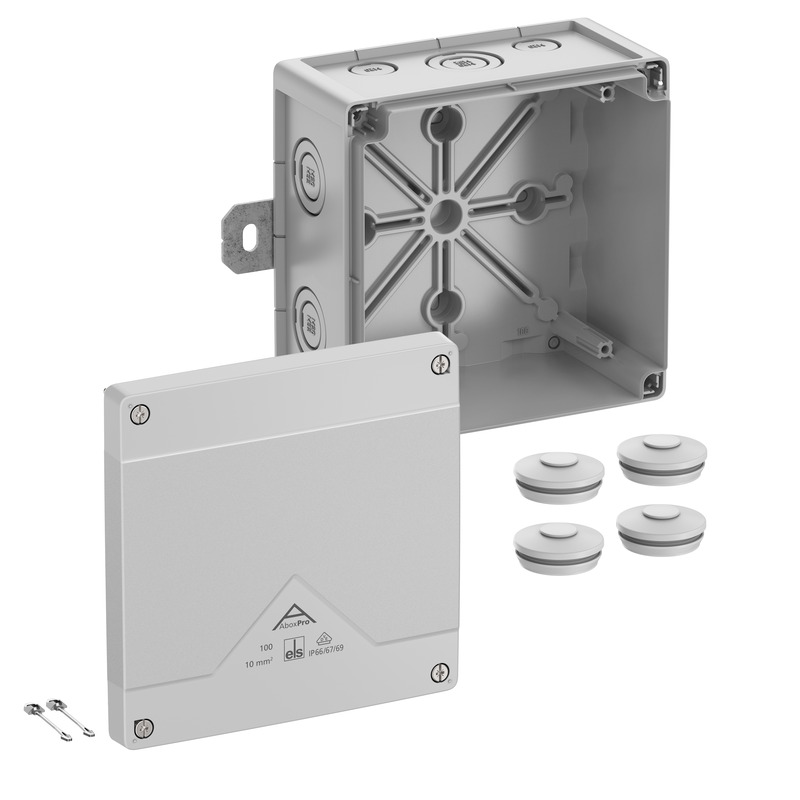

Junction box - Abox Pro 100 AB-L
