Junction box

Abox Pro 100-L/sw

Productnumber: 41000001 | Dimensions: 152 x 152 x 85 mm

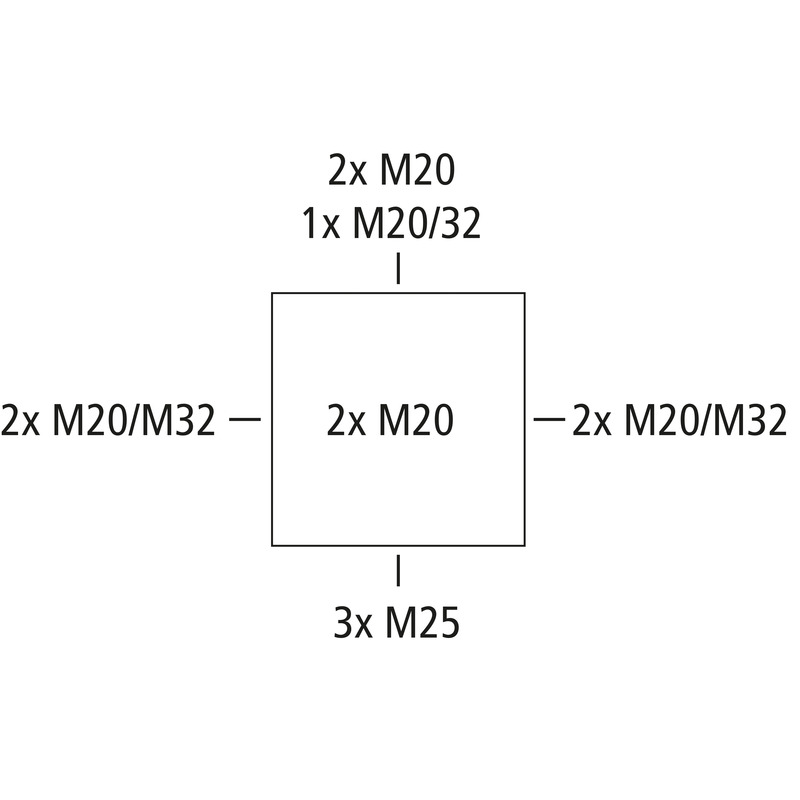

Junction box, protection class IP66/IP67/IP69, nominal cross-section 10 mm², certified by VDE (DIN EN 60670-1/-22 (VDE 0606-1/-22)), DLG (Ammonia resistance), DNV (Class: Ships and Offshore Installations), knockouts, M20/M25/M32, (2 rear, 10 side), internal fixing points, for installation in industrial environments and unprotected outdoor areas

black, U_i=1000 V AC, without terminals

Accessories supplied:
4 double membrane seals IP66 M32 sealing range 13 - 21 mm, cover retainer

Find wholesaler

electrical characteristics

Rated insulation voltage AC	1000 V
Rated insulation voltage DC	1000 V
Max. conductor cross section	10 mm²
Protection class	II
Type of protection	IP66/IP67/IP69
Terminal type	none

Colours

Base unit colour	black
Cover colour	black

Dimensions

Width	152 mm
Length	152 mm
Height	85 mm
Inner length	137 mm
Inner width	137 mm
Inner height	65 mm
Weight	0.4215 kg

Material characteristics

UV-resistant	yes
Halogen free	yes
Flammability class according with UL94	V0
Glow-wire flammability according to EN 60695-2-11	960 °C

Max. number of terminals per cross section acc. to DIN VDE 0606-1

max. amount of terminals at 1,5²	15
max. amount of terminals at 2,5²	12
max. amount of terminals at 4²	10
max. amount of terminals at 6²	8
max. amount of terminals at 10²	5

<p>Max. number of wires per cross section acc. to DIN VDE 0606-1</p>

max. amount of wires at 1,5²	45
max. amount of wires at 2,5²	36
max. amount of wires at 4²	30
max. amount of wires at 10²	24
max. amount of wires at 6²	15

mechanical properties

Impact strength	IK09
Sealable	yes
Cover screw torque	1.5 Nm
Type of fastening	Wall/ceiling mounting
Fastening	internal fixing points

Ambient conditions

max. relative humidity 25°C	95 %
max. relative humidity 40°C	50 %
Min. ambient temperature	-35 °C
Max. ambient temperature	80 °C
24h ambient temperature	60 °C
Installation location	unprotected outdoor areas

Sales Information

EAN	4013902664030
Packing Unit Code	C62
ETIM Class	EC002600
Custom tariff number	85389099

Material

Base unit material	Polycarbonate
Cover material	Polycarbonate
Sealing material	Thermoplastic elastomer
Cover screw material	Stainless steel V2A

Certificates

Test mark	VDE (DIN EN 60670-1/-22 (VDE 0606-1/-22))
Test mark	DLG (Ammonia resistance)
Test mark	DNV (Class: Ships and Offshore Installations)

Download Data Sheet

Download Data Sheet

Installation instructions

Assembly instruction FR/ES	pdf (5 MB)
Assembly instruction DE/EN	pdf (5 MB)

Dimensioned drawing

Dimensional drawing	pdf (6 MB)
Dimensional drawing	dwg (8 MB)
Dimensional drawing	dxf (36 MB)

Certificate

CE Declaration DE/EN/PL	pdf (141 KB)
DLG Approval DE	pdf (1 MB)
CE Declaration DE/EN/FR	pdf (139 KB)
DNV Certificate EN	pdf (198 KB)
UKCA Declaration EN	pdf (166 KB)
VDE Certificate DE/EN	pdf (496 KB)

Accessories

Cable gland KVR M20-MGM/sw

Dimensions : 26,5 x 26,5 x 36 mm
Productnumber: 22702001

Sealing range 6 - 12 mm, Thread length 9 mm

Cable gland, IP68/IP69*, with strain relief, polyamide, M_ x 1.5 mm, with locknut, black
(*IP69 in...
