Junction box
Productnumber: 40200101 | Dimensions: 92 x 92 x 60 mm

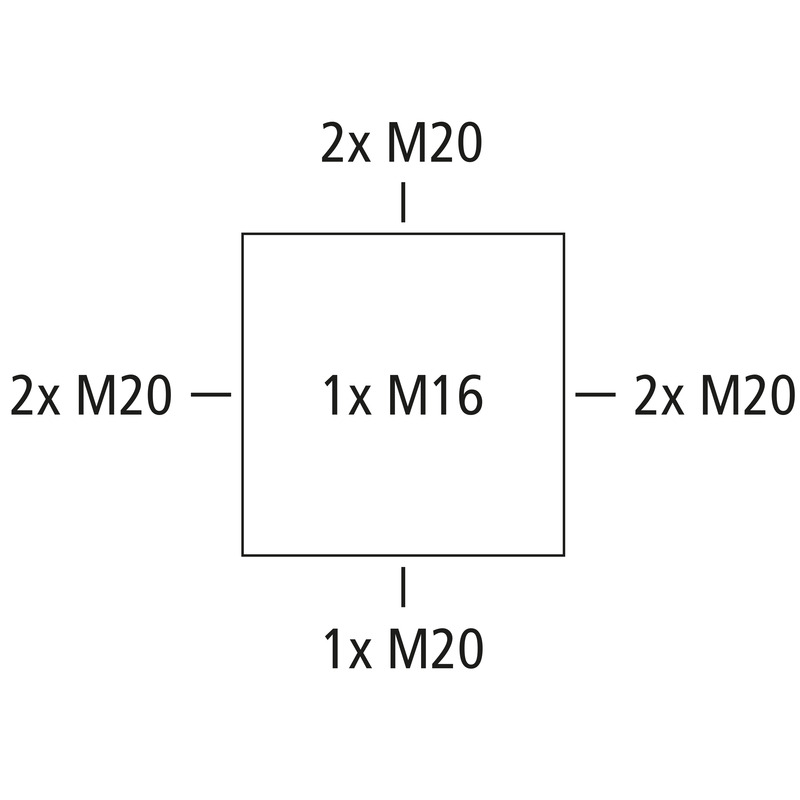

Junction box, protection class IP66/IP67/IP69, nominal cross-section 2.5 mm², certified by VDE (DIN EN 60670-1/-22 (VDE 0606-1/-22)), DLG (Ammonia resistance), DNV (Class: Ships and Offshore Installations), knockouts, M16/M20, (1 rear, 7 side), external fixing lugs, for installation in industrial environments and unprotected outdoor areas
black, Ui=1000 V AC, without terminals
Accessories supplied:
4 double membrane seals IP66 M20 sealing range 7 - 13 mm, cover retainer
| Rated insulation voltage AC | 1000 V |
|---|---|
| Rated insulation voltage DC | 1000 V |
| Max. conductor cross section | 2,5 mm² |
| Protection class | II |
| Type of protection | IP66/IP67/IP69 |
| Terminal type | none |
| Base unit colour | black |
|---|---|
| Cover colour | black |
| Width | 92 mm |
|---|---|
| Length | 92 mm |
| Height | 60 mm |
| Inner length | 78 mm |
| Inner width | 78 mm |
| Inner height | 40 mm |
| Weight | 0.1717 kg |
| UV-resistant | yes |
|---|---|
| Halogen free | yes |
| Flammability class according with UL94 | V0 |
| Glow-wire flammability according to EN 60695-2-11 | 960 °C |
| max. amount of terminals at 1,5² | 8 |
|---|---|
| max. amount of terminals at 2,5² | 6 |
| max. amount of wires at 1,5² | 24 |
|---|---|
| max. amount of wires at 2,5² | 20 |
| Impact strength | IK09 |
|---|---|
| Sealable | yes |
| Cover screw torque | 1.5 Nm |
| Type of fastening | Wall/ceiling mounting |
| Fastening | external fixing lugs |
| max. relative humidity 25°C | 95 % |
|---|---|
| max. relative humidity 40°C | 50 % |
| Min. ambient temperature | -35 °C |
| Max. ambient temperature | 80 °C |
| 24h ambient temperature | 60 °C |
| Installation location | unprotected outdoor areas |
| EAN | 4013902662104 |
|---|---|
| Packing Unit Code | C62 |
| ETIM Class | EC002600 |
| Custom tariff number | 85389099 |
| Base unit material | Polycarbonate |
|---|---|
| Cover material | Polycarbonate |
| Sealing material | Thermoplastic elastomer |
| Cover screw material | Stainless steel V2A |
| Test mark | VDE (DIN EN 60670-1/-22 (VDE 0606-1/-22)) |
|---|---|
| Test mark | DLG (Ammonia resistance) |
| Test mark | DNV (Class: Ships and Offshore Installations) |
| CAD-Data | Download 3D-CAD-Data |
|---|
