Junction box

Abox-i 100-10²/sw

Productnumber: 49141001 | Dimensions: 140 x 140 x 79 mm

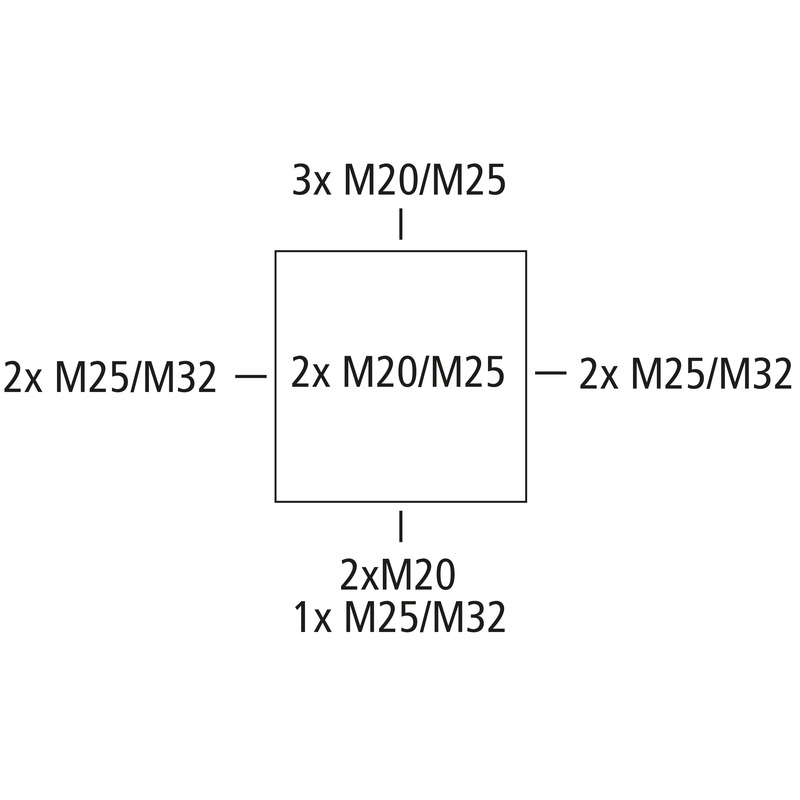

Junction box, protection class IP65, nominal cross-section 10 mm², U_i=690 V AC, certified by VDE (DIN EN 60670-1/-22 (VDE 0606-1/-22)), DLG (Ammonia resistance), DNV (Class: Ships and Offshore Installations), knockouts, M20/M25/M32, (2 rear, 10 side), internal fixing points, for installations in industrial environments and protected outdoor areas

black, with raised screw terminal, 5-pole - 10 mm² (4 x 4² / 4 x 6² / 4 x 10²)

Accessories supplied:
4 Double-membrane seal IP66 M32 sealing range 14 - 21 mm

Find wholesaler

electrical characteristics

Rated insulation voltage AC	690 V
Max. conductor cross section	10 mm²
Protection class	II
Type of protection	IP65
UL Type Rating	not specified

Colours

Base unit colour	black
Cover colour	black

Dimensions

Width	140 mm
Length	140 mm
Height	79 mm
Weight	0.4119 kg

Material characteristics

UV-resistant	yes
Halogen free	yes
Flammability class according with UL94	V2
Glow-wire flammability according to EN 60695-2-11	960 °C

mechanical properties

Type of fastening	Wall/ceiling mounting
Impact strength	IK08
Sealable	yes
Cover screw torque	1.7 Nm
Fastening	internal fixing points

Ambient conditions

max. relative humidity 25°C	95 %
max. relative humidity 40°C	50 %
Min. ambient temperature	-35 °C
Max. ambient temperature	80 °C
24h ambient temperature	60 °C
Installation location	protected outdoor areas

Sales Information

EAN	4013902930975
Packing Unit Code	C62
ETIM Class	EC002600
Custom tariff number	85369095

Material

Base unit material	Polycarbonate
Cover material	Polycarbonate, glass-fibre reinforced
Sealing material	Polyurethane
Cover screw material	Stainless steel V2A

Certificates

Test mark	VDE (DIN EN 60670-1/-22 (VDE 0606-1/-22))
Test mark	DLG (Ammonia resistance)
Test mark	DNV (Class: Ships and Offshore Installations)

Download Data Sheet

Download Data Sheet

Installation instructions

Assembly instruction DE/EN/FR/ES	pdf (1 MB)

Dimensioned drawing

Dimensional drawing	pdf (439 KB)
Dimensional drawing	dxf (4 MB)
Dimensional drawing	dwg (875 KB)
Dimensional drawing	jpg (2 MB)

Certificate

DNV Certificate EN	pdf (198 KB)
DLG Approval EN	pdf (2 MB)
UKCA Declaration EN	pdf (49 KB)
VDE Certificate (DIN EN 60670) DE/EN	pdf (329 KB)
CE Declaration DE/EN/PL	pdf (316 KB)
CE Declaration DE/EN/FR	pdf (312 KB)
DLG Approval DE	pdf (2 MB)
