Empty enclosure

TK PC 55-4-tm

Productnumber: 13745501 | Dimensions: 52 x 50 x 35 mm

Empty enclosure, protection class IP66, Polycarbonate, certified by UL (UL 508 & CSA C22.2 No. 14-13, UL 50 & CSA 22.2 No. 94.1-7 & UL 50E & CSA C22.2 No. 94.2-7), DLG (Ammonia resistance), DNV (Class: Ships and Offshore Installations), U_i=690V AC, U_i=1000V DC, internal fixing points, for installations in industrial environments and protected outdoor areas

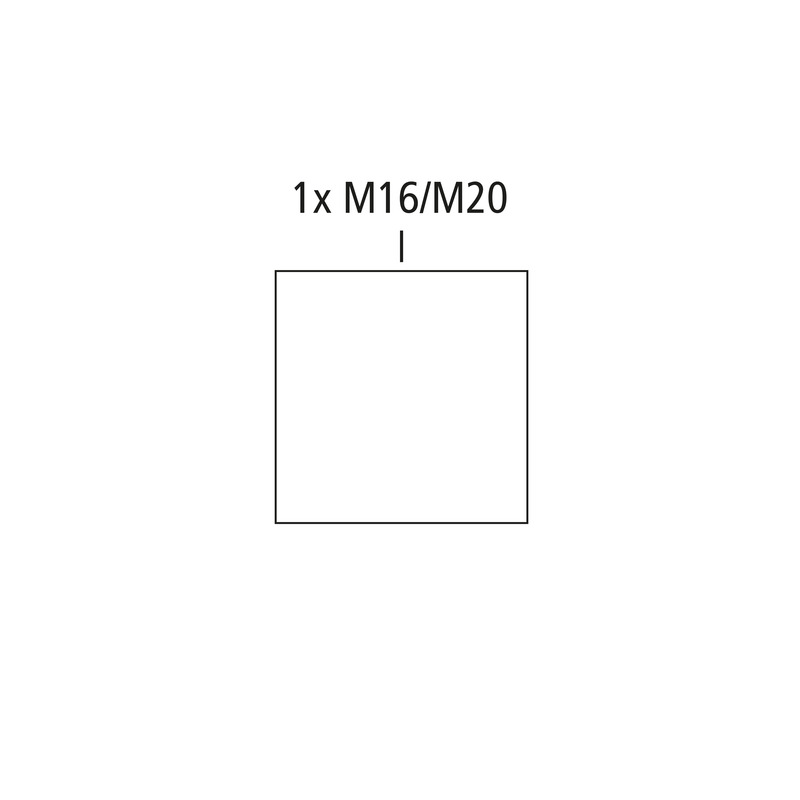

Box: Polycarbonate, grey, Lid: Polycarbonate, transparent, knockouts, M12/M16, (1 side)

Find wholesaler

electrical characteristics

Rated insulation voltage AC	690 V
Rated insulation voltage DC	1000 V
Protection class	II
Type of protection	IP66
UL Type Rating	4X, 12/12K

Colours

Base unit colour	grey
Cover colour	transparent

Dimensions

Width	52 mm
Length	50 mm
Height	35 mm
Weight	0.0427 kg

Material characteristics

UV-resistant	yes
Halogen free	yes
Flammability class according with UL94	V2
Glow-wire flammability according to EN 60695-2-11	960 °C

mechanical properties

Type of fastening	Wall/ceiling mounting
Impact strength	IK08
Cover screw torque	1.2 Nm
Stackable	yes
Type of top part	Cover
Fastening	internal fixing points

Ambient conditions

max. relative humidity 25°C	95 %
max. relative humidity 40°C	50 %
Min. ambient temperature	-35 °C
Max. ambient temperature	80 °C
24h ambient temperature	60 °C
Installation location	protected outdoor areas

Sales Information

EAN	4013902901241
Packing Unit Code	C62
ETIM Class	EC000261
Custom tariff number	85389099

Material

Base unit material	Polycarbonate
Cover material	Polycarbonate
Sealing material	Polyurethane
Cover screw material	Stainless steel V2A

Certificates

Test mark	UL (UL 508 & CSA C22.2 No. 14-13, UL 50 & CSA 22.2 No. 94.1-7 & UL 50E & CSA C22.2 No. 94.2-7)
Test mark	DLG (Ammonia resistance)
Test mark	DNV (Class: Ships and Offshore Installations)

Download Data Sheet

Download Data Sheet

Installation instructions

Assembly instruction DE/EN/FR/ES	pdf (528 KB)
Assembly instruction DE/EN/FR/ES	pdf (146 KB)

Dimensioned drawing

Dimensional drawing	pdf (165 KB)
Dimensional drawing	dxf (610 KB)
Dimensional drawing	dwg (137 KB)
Dimensional drawing	jpg (1.012 KB)

Certificate

CE Declaration DE/EN/PL	pdf (139 KB)
CE Declaration DE/EN/FR	pdf (136 KB)
DLG Approval DE	pdf (2 MB)
UKCA Declaration EN	pdf (165 KB)
DLG Approval EN	pdf (2 MB)
DNV Certificate EN	pdf (198 KB)
UL Certificate (UL50/UL50E) EN	pdf (308 KB)
