TK PS 1309-8-tm

TK PS 1309-8-tm

Empty enclosure

TK PS 1309-8-tm

Productnumber: 10650901 | Dimensions: 130 x 94 x 81 mm

Empty enclosure, protection class IP66, Polystyrene, U_i=690V AC, U_i=1000V DC, internal fixing points, for standard indoor installations

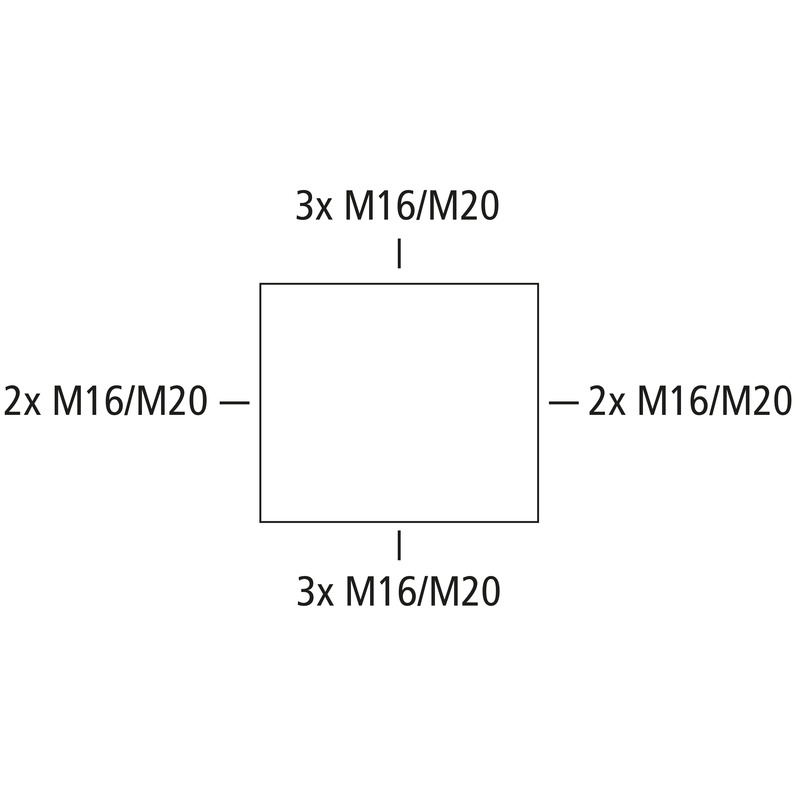

Box: Polystyrene, grey, Lid: Polycarbonate, transparent, knockouts, M16/M20, (10 side)

To industrial product https://www.spelsberg.com/p/13750901/
Find wholesaler

electrical characteristics

Rated insulation voltage AC	690 V
Rated insulation voltage DC	1000 V
Protection class	II
Type of protection	IP66
vented	no
UL Type Rating	not specified

Colours

Base unit colour	grey
Cover colour	transparent

Dimensions

Width	130 mm
Length	94 mm
Height	81 mm
Weight	0.216 kg

Material characteristics

UV-resistant	no
Halogen free	yes
Flammability class according with UL94	HB
Glow-wire flammability according to EN 60695-2-11	650 °C

mechanical properties

Type of fastening	Wall/ceiling mounting
Impact strength	IK07
Sealable	yes
Cover screw torque	1.2 Nm
Flange variant	no
Stackable	yes
Type of top part	Cover
Fastening	internal fixing points

Ambient conditions

max. relative humidity 25°C	95 %
max. relative humidity 40°C	50 %
Min. ambient temperature	-25 °C
Max. ambient temperature	40 °C
24h ambient temperature	35 °C
Installation location	Indoors

Sales Information

EAN	4013902861392
Packing Unit Code	C62
ETIM Class	EC000261
Custom tariff number	85389099

Material

Base unit material	Polystyrene
Cover material	Polycarbonate
Sealing material	Polyurethane
Cover screw material	Polyamide, glass-fibre reinforced

Download Data Sheet
