AKL 4-t AKL 4-t

Empty enclosure

AKL 4-t

Productnumber: 74400401 | Dimensions: 300 x 600 x 132 mm

Empty enclosure, protection class IP65, Polystyrene, Ui=690V AC, Ui=1000V DC, internal fixing points, for standard indoor installations

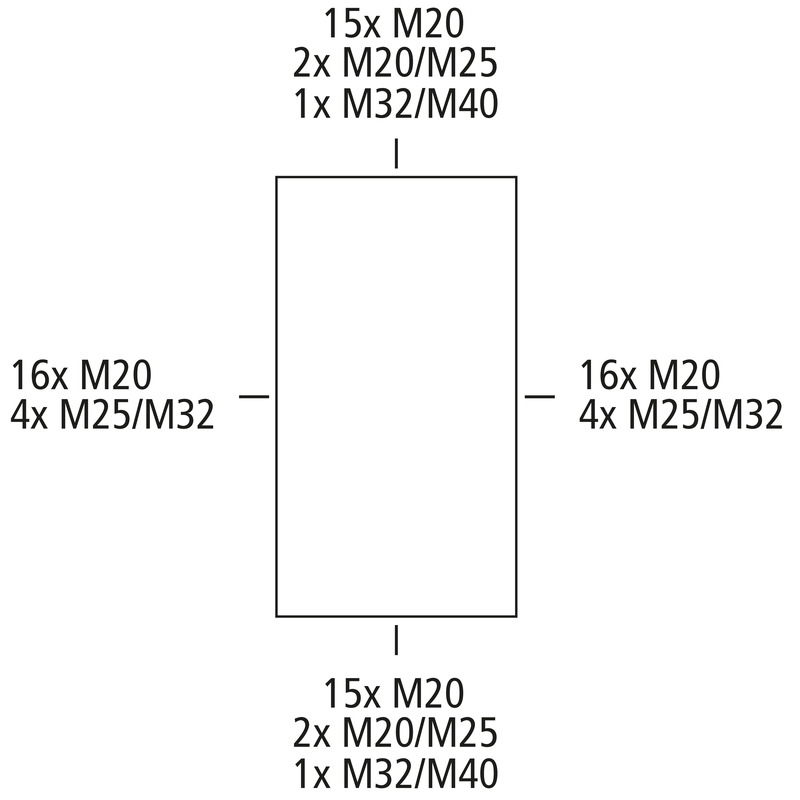

Box: Polystyrene, Lid: Polycarbonate, transparent, knockouts, M20/M25/M32/M40, (76 side)

Accessories supplied:
10  Double-membrane seal IP66 M20 sealing range 7 - 12 mm, 2 Double-membrane seals IP66 M25 sealing range 9 - 16 mm, 2 Double-membrane seal M32 sealing range 14 - 21 mm, 1 Double-membrane seal IP66 M40 sealing range 19 - 28 mm

Download Data Sheet

Download Data Sheet

Dimensioned drawing

Dimensional drawing dwg (657 KB)
Dimensional drawing jpg (1 MB)
Dimensional drawing pdf (232 KB)
Dimensional drawing dxf (4 MB)

Certificate

UKCA Declaration EN pdf (49 KB)
CE Declaration DE/EN/FR pdf (81 KB)

Accessories

External hinge set - ASS-gro

External hinge set ASS-gro

  • Dimensions : 140 x 120 x 20 mm
  • Productnumber: 19000501

External hinge set large, from TK PS/PC 1811 and from AKL/AKi 1



External hinge set for retrofitting the enclosure cover to hinged door, incl. 2 hinges, fixing...



Watchlist
Details
Standard rail - AK NS35-250

Standard rail AK NS35-250

  • Dimensions : 48 x 250 x 30,5 mm
  • Productnumber: 56273501

from 300 x 300 mm, length 250 mm, including spacers



Standard rail acc. to DIN EN 60715, 35 x 7.5mm



Watchlist
Details
External fixing lugs - AK ABL-ES

External fixing lugs AK ABL-ES

  • Dimensions : 110 x 40 x 20 mm
  • Productnumber: 79300401

Set = 4 pcs.



External fixing lugs, for mounting separate enclosures or small units on flat wall surfaces, can be...



Watchlist
Details
Mounting plate - AK MPI 4

Mounting plate AK MPI 4

  • Dimensions : 240 x 540 x 4 mm
  • Productnumber: 79500401

AKL / AKi 4



Assembly plate in melamine-clad insulating material, 4 mm thick, incl. fixing screws, grey



Watchlist
Details
Standard rail - NS35-216/3

Standard rail NS35-216/3

  • Dimensions : 35 x 216 x 22,5 mm
  • Productnumber: 79503001

universal floor fixing, with fixing screws, length 216 mm



Standard rail acc. to DIN EN 60715, 35 x 7.5mm



Watchlist
Details
Enclosure wall - AK ABF 2

Enclosure wall AK ABF 2

  • Dimensions : 300 x 90 x 15 mm
  • Productnumber: 79505001

Smooth for self-drilling



Enclosure wall, for installation in the components of the AK enclosure system (until 04/15) for 300...



Watchlist
Details
Standard rail - AK NS35-556

Standard rail AK NS35-556

  • Dimensions : 48 x 556 x 30,5 mm
  • Productnumber: 79506001

universal floor fixing, incl. fixing screws, length 556 mm



Standard rail acc. to DIN EN 60715, 35 x 7.5mm



Watchlist
Details
Partition wall - AK TW

Partition wall AK TW

  • Dimensions : 290 x 193 x 17 mm
  • Productnumber: 79791001



Partition wall, for installation in the components of the AK enclosure system, from AK 28 / AKL 2 /...



Watchlist
Details
Terminal rails - AK 14 PEN-SL

Terminal rails AK 14 PEN-SL

  • Dimensions : 286 x 60 x 50 mm
  • Productnumber: 79031701

Single-stage PE/N terminal rail with each, 3 screwable clamping...



Screwless PE/N clamping rail, for installation in AK small distributors from AK 14 and AKL/AKi empty...



Watchlist
Details
Terminal rails - AK 28 PEN-SL

Terminal rails AK 28 PEN-SL

  • Dimensions : 300 x 50 x 55 mm
  • Productnumber: 79032701

Two-row PE/N terminal rail each with, 6 screwable clamping points, 2.5...



Screwless PE/N clamping rail, for installation in AK small distributors from AK 14 and AKL/AKi empty...



Watchlist
Details
Terminal rails - AK N-SL

Terminal rails AK N-SL

  • Dimensions : 300 x 90 x 60 mm
  • Productnumber: 79031801

Single-stage N terminal rail, with 4 screwable clamping points 2.5 mm²...



Screwless PE/N clamping rail, for installation in AK small distributors from AK 14 and AKL/AKi empty...



Watchlist
Details

CAD-Data

CAD-Data Download 3D-CAD-Data

Your request

Your information
Companydata
CAD-Format

Tender text

Similar products

Empty enclosure - AKL 4-g

Empty enclosure AKL 4-g

  • Dimensions : 300 x 600 x 132 mm
  • Productnumber: 74040401

Box: Polystyrene, Lid: Polystyrene, grey, knockouts, M20/M25/M32/M40,...



Empty enclosure, protection class IP65, Polystyrene, Ui=690V AC, Ui=1000V DC, internal fixing...



Watchlist
Details
Empty enclosure - AKL 4-gh

Empty enclosure AKL 4-gh

  • Dimensions : 300 x 600 x 209 mm
  • Productnumber: 74290401

Box: Polystyrene, Lid: Polystyrene, grey, knockouts, M20/M25/M32/M40,...



Empty enclosure, protection class IP65, Polystyrene, Ui=690V AC, Ui=1000V DC, internal fixing...



Watchlist
Details
Empty enclosure - AKL 4-th

Empty enclosure AKL 4-th

  • Dimensions : 300 x 600 x 209 mm
  • Productnumber: 74690401

Box: Polystyrene, Lid: Polycarbonate, transparent, knockouts,...



Empty enclosure, protection class IP65, Polystyrene, Ui=690V AC, Ui=1000V DC, internal fixing...



Watchlist
Details
