External attachment set

AL ALS-gro

Productnumber: 15400601 | Dimensions: 16 x 51 x 6 mm

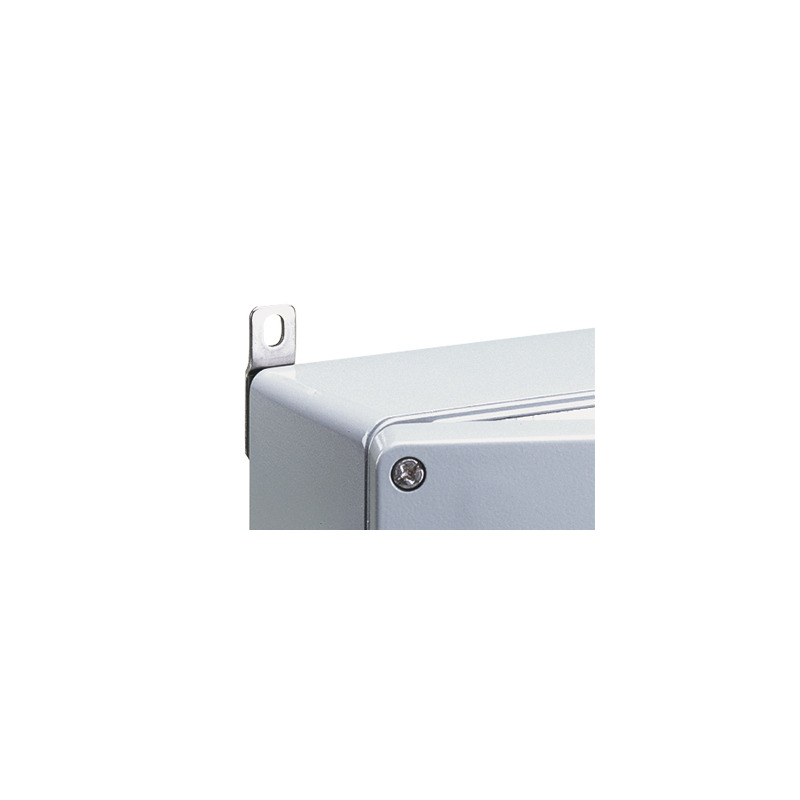

External fixing lugs

for AL/ALR 1212, 1616, 2212, 2320, 2616, 2823, 3323, 3616

Dimensions

Width 16 mm
Length 51 mm
Height 6 mm
Weight 0.089 kg

Ambient conditions

Installation location protected outdoor areas

Sales Information

EAN 4013902634729
Packing Unit Code BG
ETIM Class EC002287
Custom tariff number 85389099

Download Data Sheet

Download Data Sheet

Installation instructions

Assembly instruction DE/FR/ES pdf (78 KB)

Dimensioned drawing

Dimensional drawing pdf (56 KB)
Dimensional drawing jpg (1 MB)

CAD-Data

CAD-Data Download 3D-CAD-Data

Your request

Your information

Companydata

CAD-Format

Tender text

Similar products

External attachment set AL ALS-kl

  • Dimensions : 10 x 38,5 x 5 mm
  • Productnumber: 15400401

for AL/ALR 88, 1006, 1010, 1308, 1506, 1808



External fixing lugs
