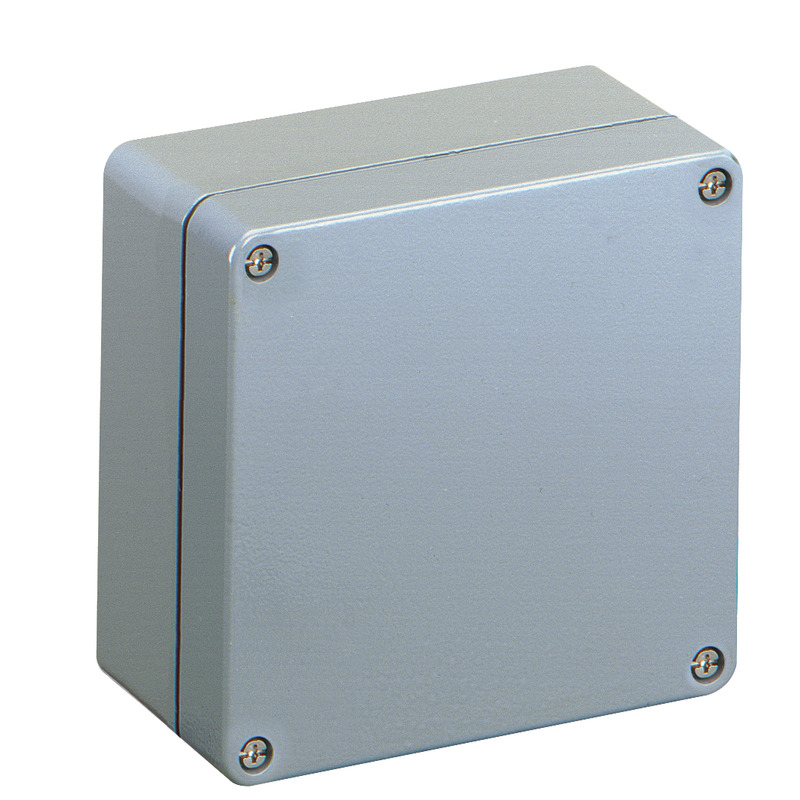

Empty enclosure
Productnumber: 15100301 | Dimensions: 119 x 119 x 64 mm
Empty enclosure, protection class IP66, Aluminium, powder-coated painting, certified by UL (UL 508 & CSA C22.2 No. 14-13, UL 50 & CSA 22.2 No. 94.1-7 & UL 50E & CSA C22.2 No. 94.2-7), for installations in industrial environments and protected outdoor areas
Box: Aluminium, powder-coated painting, Lid: Aluminium, powder-coated painting, silver-grey, smooth sidewalls
Internal dimensions and mounting points correspond to the respective TK PS/PC dimension
| Protection class | I |
|---|---|
| Type of protection | IP66 |
| vented | no |
| UL Type Rating | 4X, 12 |
| Cover colour | silver-grey |
|---|
| Width | 119 mm |
|---|---|
| Length | 119 mm |
| Height | 64 mm |
| Weight | 0.8652 kg |
| UV-resistant | yes |
|---|---|
| Halogen free | yes |
| Type of fastening | Wall/ceiling mounting |
|---|---|
| Impact strength | IK09 |
| Flange variant | no |
| Stackable | no |
| Type of top part | Cover |
| max. relative humidity 25°C | 95 % |
|---|---|
| max. relative humidity 40°C | 50 % |
| Min. ambient temperature | -35 °C |
| Max. ambient temperature | 75 °C |
| 24h ambient temperature | 60 °C |
| Installation location | protected outdoor areas |
| EAN | 4013902388172 |
|---|---|
| Packing Unit Code | CT |
| ETIM Class | EC000261 |
| Custom tariff number | 85369095 |
| Base unit material | Aluminium, powder-coated painting |
|---|---|
| Cover material | Aluminium, powder-coated painting |
| Sealing material | Silicone |
| Test mark | UL (UL 508 & CSA C22.2 No. 14-13, UL 50 & CSA 22.2 No. 94.1-7 & UL 50E & CSA C22.2 No. 94.2-7) |
|---|
| CAD-Data | Download 3D-CAD-Data |
|---|
