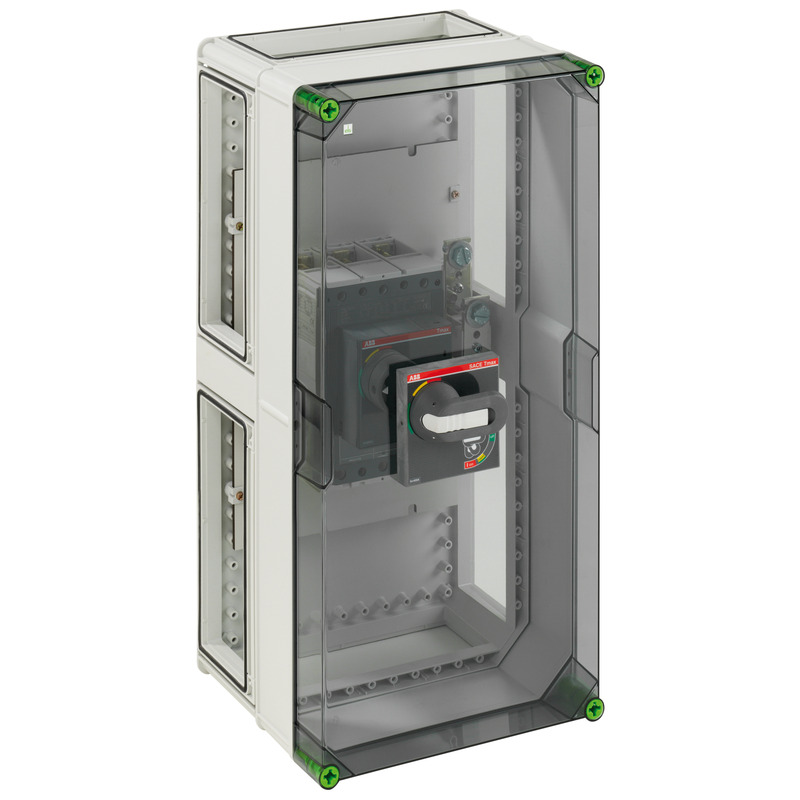

GLE 463

Productnumber: 03646301 | Dimensions: 320 x 640 x 254 mm

Circuit breaker housing with external actuation, lockable, 1 x power switch, ln 630A, 3-pole switching, LS/I trip unit, L trip unit, electronic, 0.4-1x In, adjustable in steps 0.04x In, S trip unit, electronic, adjustable 1/1.5/2/2.5/3/3.5/4.5/5.5/6.5/7/7.5/8/8.5/9/10x In, Delay adjustable 0.1/0.25 s at 8xIn, I trip unit, electronic, Adjustable 1/1.5/2/2.5/3/3.5/4.5/5.5/6.5/7/7.5/8/8.5/9/10x In, instantaneous, Screw connection M10, PE/N terminal M12, 4 x enclosure connectors (GGV)

with transparent cover

Find wholesaler

electrical characteristics

Rated operating voltage AC	690 V
Rated operating voltage DC	750 V
Rated insulation voltage AC	690 V
Rated insulation voltage DC	1000 V
Protection class	II
Type of protection	IP54
Rated current	630 A
UL Type Rating	not specified

Dimensions

Width	320 mm
Length	640 mm
Height	254 mm
Weight	10.456 kg

Material characteristics

UV-resistant	yes
Halogen free	yes
Glow-wire flammability according to EN 60695-2-11	960 °C

mechanical properties

Impact strength	IK08
Cover screw torque	2.5 Nm
Stackable	yes

Ambient conditions

max. relative humidity 25°C	95 %
max. relative humidity 40°C	50 %
Min. ambient temperature	-25 °C
Max. ambient temperature	40 °C
24h ambient temperature	35 °C
Installation location	protected outdoor areas

Sales Information

EAN	4013902051717
Packing Unit Code	CT
ETIM Class	EC000249
Custom tariff number	85369095

Material

Base unit material	Polycarbonate
Cover material	Polycarbonate, glass-fibre reinforced
Sealing material	Polyurethane
Cover screw material	Polyamide, glass-fibre reinforced

Download Data Sheet

Download Data Sheet

Certificate

CE Declaration DE/EN/FR	pdf (218 KB)
UKCA Declaration EN	pdf (48 KB)

Accessories

Flange set GFS 14-m

Productnumber: 07251401

Flange kit consisting of flanges GFL 321, 2x 331, 341, 351 and 361

Flange set with metric pre-embossing, 2 x flange connectors per flange

Watchlist

Details

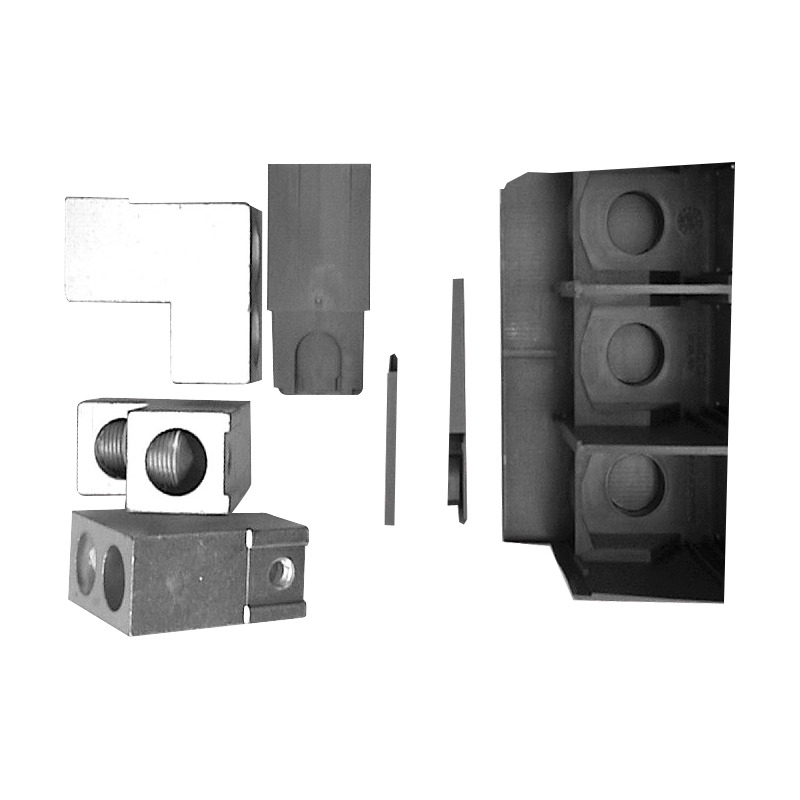

Circuit breaker accessories GKL 630 AL

Productnumber: 07763001

Cage-type terminal 2 x 95 - 240 mm², for CU / AL cables, for circuit...

Terminals, for power switch‎, Set = 3 pcs.

Watchlist

Details
