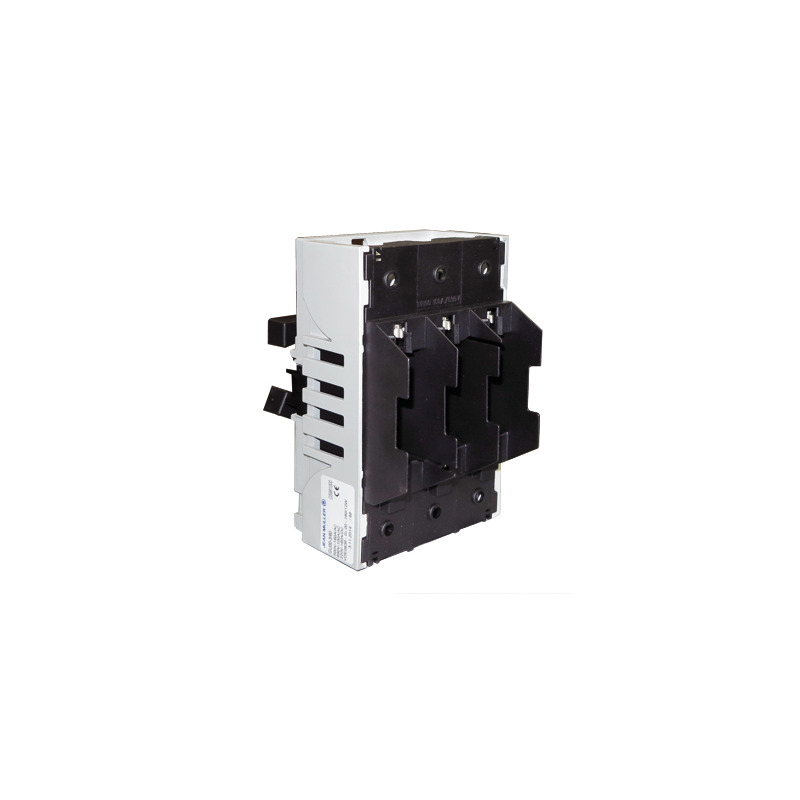

NH bus-mounting fuse base
Productnumber: 07931201 | Dimensions: 210 x 256 x 101 mm
NH fuse switch disconnector, for 60 mm busbar system, Copper rails 12/20/30 x 10 mm
Construction size NH 2, max. 240 mm², 400 A, Screw connection M10, Output on bottom
| Width | 210 mm |
|---|---|
| Length | 256 mm |
| Height | 101 mm |
| Weight | 2.87 kg |
| EAN | 4013902566297 |
|---|---|
| Packing Unit Code | C62 |
| ETIM Class | EC000067 |
| Custom tariff number | 85361090 |
