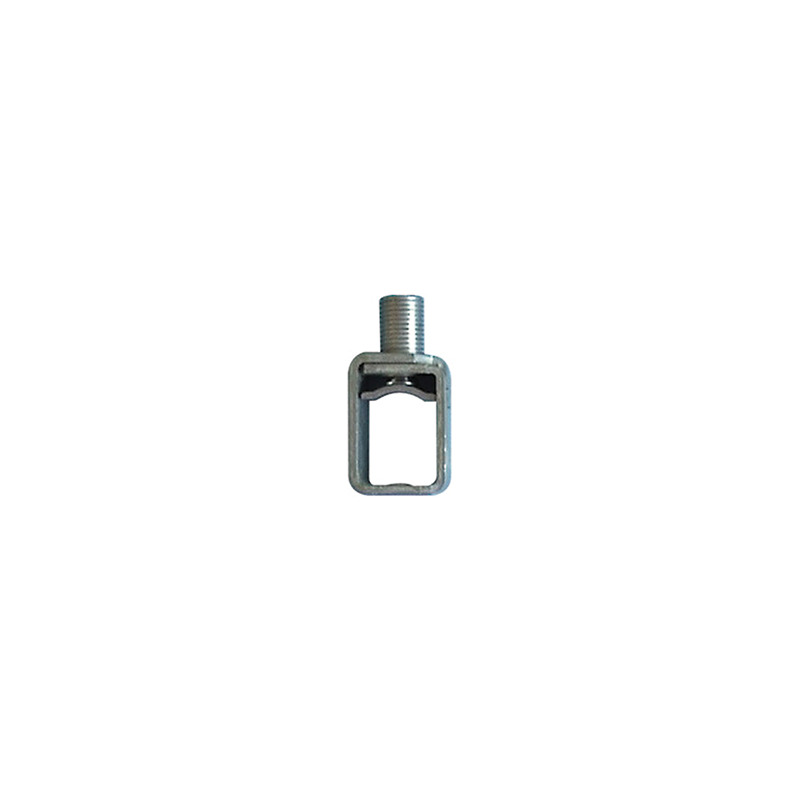

KRK NH 1

Productnumber: 07674101 | Dimensions: 18,1 x 28,5 x 40 mm

Frame clamps, for NH fuse base, for NH fuse switch disconnector, for PE/N terminals, for aluminium and copper conductors

for AL/CU conductor 1 x (10-70), See technical appendix for aluminium conductor, Set = 3 pcs.

shockproof	No
Connection 1: Connection type	Screws
Connection 1: Clamping points per pole	1
Connection 1: Suitable for Cu conductors	1
Connection 1: Suitable for Al conductors	1
Connection 1: Connectable conductor cross-section, single-wire (min)	35 mm²
Connection 1: Connectable conductor cross-section, single-wire (max)	150 mm²
Connection 1: Connectable conductor cross-section, stranded (min)	35 mm²
Connection 1:Connectable conductor cross-section, stranded (max)	150 mm²

Connection 1: Tightening moment	12 Nm
