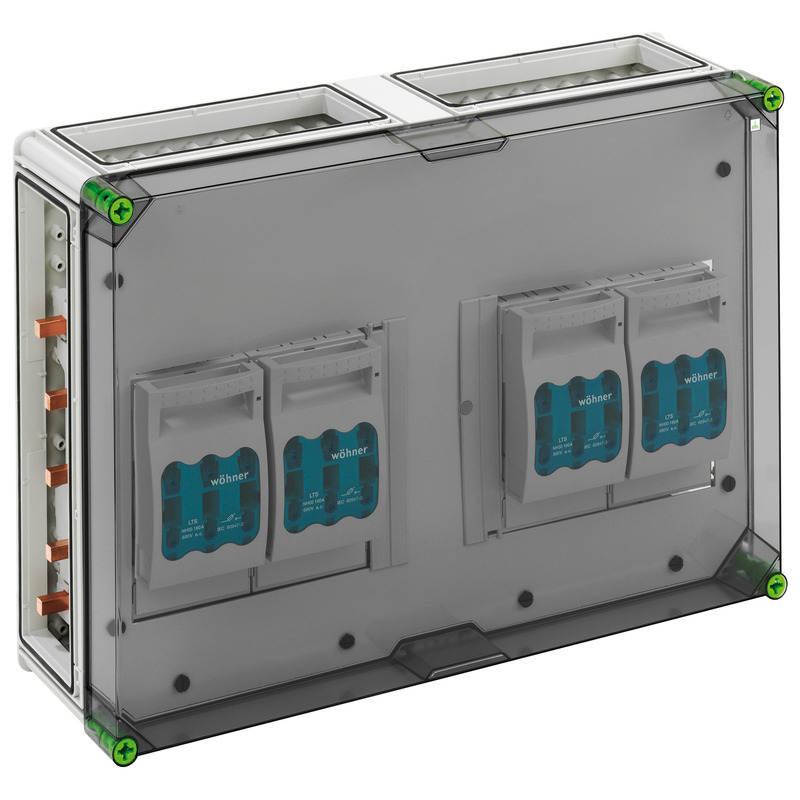

GST 5045-400 Plus

Productnumber: 04754584 | Dimensions: 640 x 440 x 179 mm

NH bus-mounting fuse empty enclosure for switchgear with additional connection space, 4 x NH 00 fuse switch disconnector enclosure, Rated current 125 A, Clamp connection 1.5 - 70 mm², Output on top, on 5-pole busbar, N terminal 4 - 35 mm², PE terminal 4 - 35 mm², 4 x enclosure connectors (GGV)

on busbar system 400 A, with transparent cover

Find wholesaler

electrical characteristics

Rated operating voltage AC	690 V
Rated insulation voltage AC	690 V
Rated insulation voltage DC	1000 V
Protection class	II
Type of protection	IP65
UL Type Rating	3R

Dimensions

Width	640 mm
Length	440 mm
Height	179 mm
Weight	15.441 kg

Material characteristics

UV-resistant	yes
Halogen free	yes
Glow-wire flammability according to EN 60695-2-11	960 °C

mechanical properties

Impact strength	IK08
Cover screw torque	2.5 Nm
Stackable	yes

Ambient conditions

max. relative humidity 25°C	95 %
max. relative humidity 40°C	50 %
Min. ambient temperature	-25 °C
Max. ambient temperature	40 °C
24h ambient temperature	35 °C
Installation location	protected outdoor areas

Sales Information

EAN	4013902987986
Packing Unit Code	CT
ETIM Class	EC000249
Custom tariff number	85369095

Material

Base unit material	Polycarbonate
Cover material	Polycarbonate, glass-fibre reinforced
Sealing material	Polyurethane
Cover screw material	Polyamide, glass-fibre reinforced
