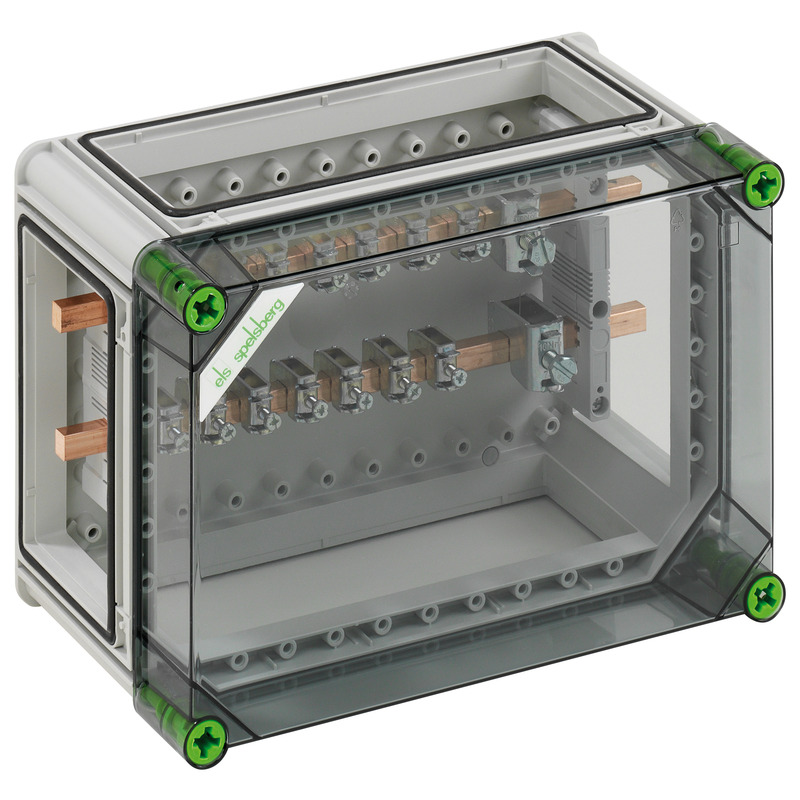

Busbar housing, 2 poles, 250 A, N: 12 x 10 mm, with copper rails, PE: 12 x 10 mm, with 14 busbar terminals 1.5 - 16 mm², with 2 busbar terminals 16 - 70 mm², 3 x enclosure connectors (GGV)
with transparent cover
This article is archived!
Busbar enclosures
GSi 123-NPE
Productnumber: 04012301 | Dimensions: 220 x 320 x 179 mm
- Find wholesaler
electrical characteristics
| Rated operating voltage AC | 690 V |
|---|---|
| Protection class | II |
| Type of protection | IP65 |
| with rail system | yes |
| UL Type Rating | 3R |
Dimensions
| Width | 220 mm |
|---|---|
| Length | 320 mm |
| Height | 179 mm |
| Weight | 2.7 kg |
Material characteristics
| UV-resistant | yes |
|---|---|
| Halogen free | yes |
| Glow-wire flammability according to EN 60695-2-11 | 960 °C |
mechanical properties
| Type of fastening | Surface mounted |
|---|---|
| Impact strength | IK08 |
| Cover screw torque | 2.5 Nm |
| Stackable | yes |
Ambient conditions
| Min. ambient temperature | -35 °C |
|---|---|
| Max. ambient temperature | 80 °C |
| 24h ambient temperature | 60 °C |
| Installation location | protected outdoor areas |
Sales Information
| EAN | 4013902832682 |
|---|---|
| Packing Unit Code | CT |
| ETIM Class | EC002274 |
| Custom tariff number | 85389099 |
Material
| Base unit material | Plastic |
|---|
