Busbar terminal, for copper rails 12/20/25/30 x 10 mm
for connection of AL/CU conductors 4-35mm²

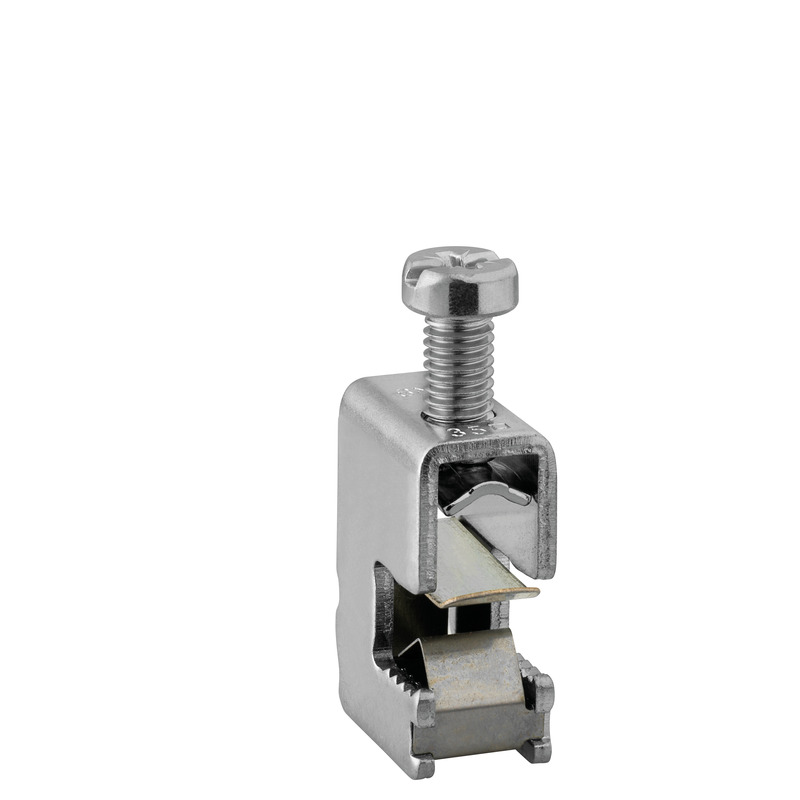

Busbar terminal
SKLAL 135
Productnumber: 07613501 | Dimensions: 16 x 26,5 x 36 mm
- Find wholesaler
electrical characteristics
| Max. conductor cross section | 35 mm² |
|---|---|
| Rated current | 270 A |
| Number of poles | 1 |
| shockproof | No |
| Connection 1: Connection type | Screws |
| Connection 1: Clamping points per pole | 1 |
| Connection 1: Suitable for Cu conductors | 1 |
| Connection 1: Suitable for Al conductors | 1 |
| Connection 1: Connectable conductor cross-section, single-wire (min) | 4 mm² |
| Connection 1: Connectable conductor cross-section, single-wire (max) | 35 mm² |
| Connection 1: Connectable conductor cross-section, stranded (min) | 4 mm² |
| Connection 1:Connectable conductor cross-section, stranded (max) | 35 mm² |
Dimensions
| Width | 16 mm |
|---|---|
| Length | 26.5 mm |
| Height | 36 mm |
| Weight | 0.0254 kg |
mechanical properties
| Connection 1: Tightening moment | 6 Nm |
|---|
Sales Information
| EAN | 4013902623013 |
|---|---|
| Packing Unit Code | C62 |
| ETIM Class | EC000001 |
| Custom tariff number | 85369010 |
