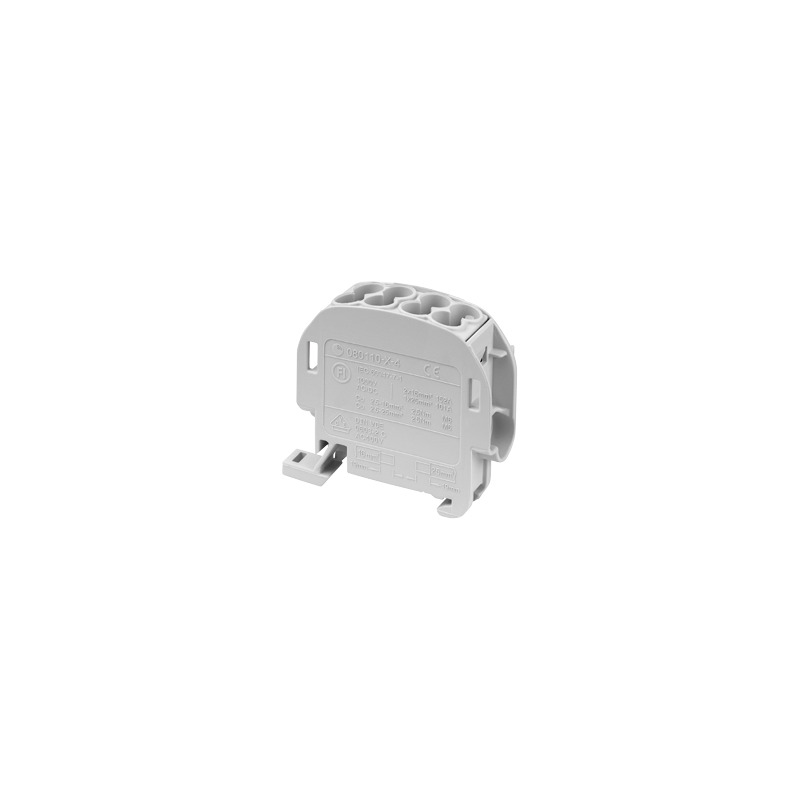

HA 25-16

Productnumber: 69113201 | Dimensions: 22 x 40,7 x 40 mm

Main cable junction terminal with 4 clamping points 25 mm², 1-pole

1-pole finger proof

Rated operating voltage AC	1000 V
Number of poles	1
Connection 1: Connection type	Screws
Connection 1: Clamping points per pole	4
Connection 1: Suitable for Cu conductors	1
Connection 1: Connectable conductor cross-section, single-wire (min)	2.5 mm²
Connection 1: Connectable conductor cross-section, single-wire (max)	25 mm²
Connection 1: Connectable conductor cross-section, stranded (min)	2.5 mm²
Connection 1:Connectable conductor cross-section, stranded (max)	25 mm²
Connection 2: Connection type	Screws
Connection 2: Suitable for Cu conductors	1
Connection 2: Connectable conductor cross-section, single-wire (min)	2.5 mm²
Connection 2: Connectable conductor cross-section, single-wire (max)	16 mm²
Connection 2: Connectable conductor cross-section, stranded (min)	2.5 mm²
Connection 2: Connectable conductor cross-section, stranded (max)	16 mm²

Glow-wire flammability according to EN 60695-2-11	960 °C

Connection 1: Tightening moment	2.5 Nm
Connection 2: Tightening torque	2.5 Nm
