Bus bar terminals for copper rails 12/20/25/30 x 5 mm
Connection for Cu 1.5-35 mm², Flat copper 160 A

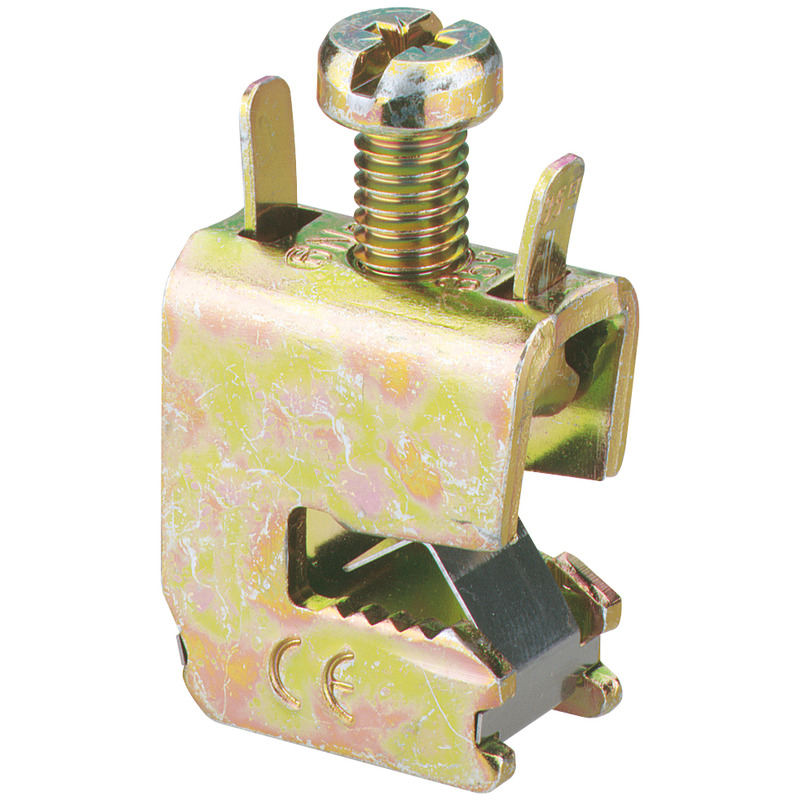

Busbar terminal
Productnumber: 07553501 | Dimensions: 16 x 26,5 x 31,5 mm
Bus bar terminals for copper rails 12/20/25/30 x 5 mm
Connection for Cu 1.5-35 mm², Flat copper 160 A
Max. conductor cross section | 35 mm² |
---|---|
Rated current | 270 A |
Number of poles | 1 |
shockproof | No |
Connection 1: Connection type | Screws |
Connection 1: Clamping points per pole | 1 |
Connection 1: Suitable for Cu conductors | 1 |
Connection 1: Suitable for Al conductors | 0 |
Connection 1: Connectable conductor cross-section, single-wire (min) | 4 mm² |
Connection 1: Connectable conductor cross-section, single-wire (max) | 35 mm² |
Connection 1: Connectable conductor cross-section, stranded (min) | 4 mm² |
Connection 1:Connectable conductor cross-section, stranded (max) | 35 mm² |
Width | 16 mm |
---|---|
Length | 26.5 mm |
Height | 31.5 mm |
Weight | 0.045 kg |
Connection 1: Tightening moment | 6 Nm |
---|
EAN | 4013902051915 |
---|---|
Packing Unit Code | C62 |
ETIM Class | EC000001 |
Custom tariff number | 85369010 |
